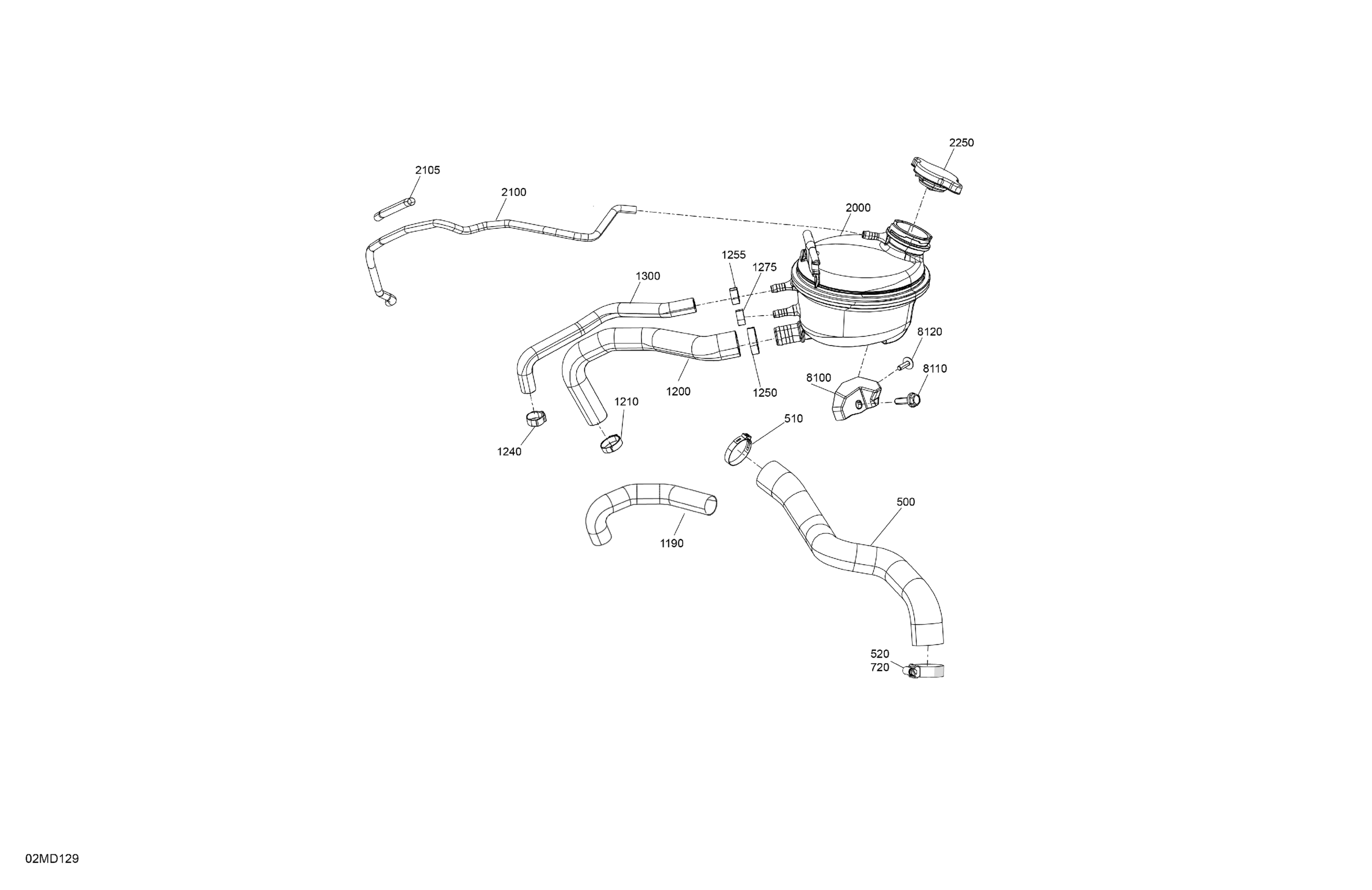

Ski-Doo Europe - SKANDIC 600 EFI - SPORT - AJRB - Neo Yellow - 154X20X1.25WT Track, 2024 Engine - Cooling Diagram

Description

Price

500

Thermostat Hose

509001414

$24.99

510

Oetiker Clamp

293650326

$8.59

520

Aba Gear Clamp, 26-38 MM

509000443

$12.72

720

Aba Gear Clamp, 26-38 MM

509000443

$12.72

1190

Protector Tube 32 Mm 1000Mm Long

219704421

$26.99

1200

Hose

509001164

$15.49

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

1240

Oetiker Clamp

293650046

$2.89

1250

Oetiker Clamp

509001041

$2.09

1255

Oetiker Clamp

293650046

$2.89

1275

Oetiker Clamp

293650046

$2.89

1300

Hose

509001457

$15.88

2000

Coolant Tank

509001260

$90.99

2100

Hose 6 Mm 15000Mm Long

219704360

$132.49

2105

Protector Tube | Not shown

503195447

$13.49

2250

Radiator Pressure Cap

509000180

$20.49

8100

Support

509001259

$6.39

8110

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

8120

Screw PT Type K-50 X 16

250000959

$2.11
