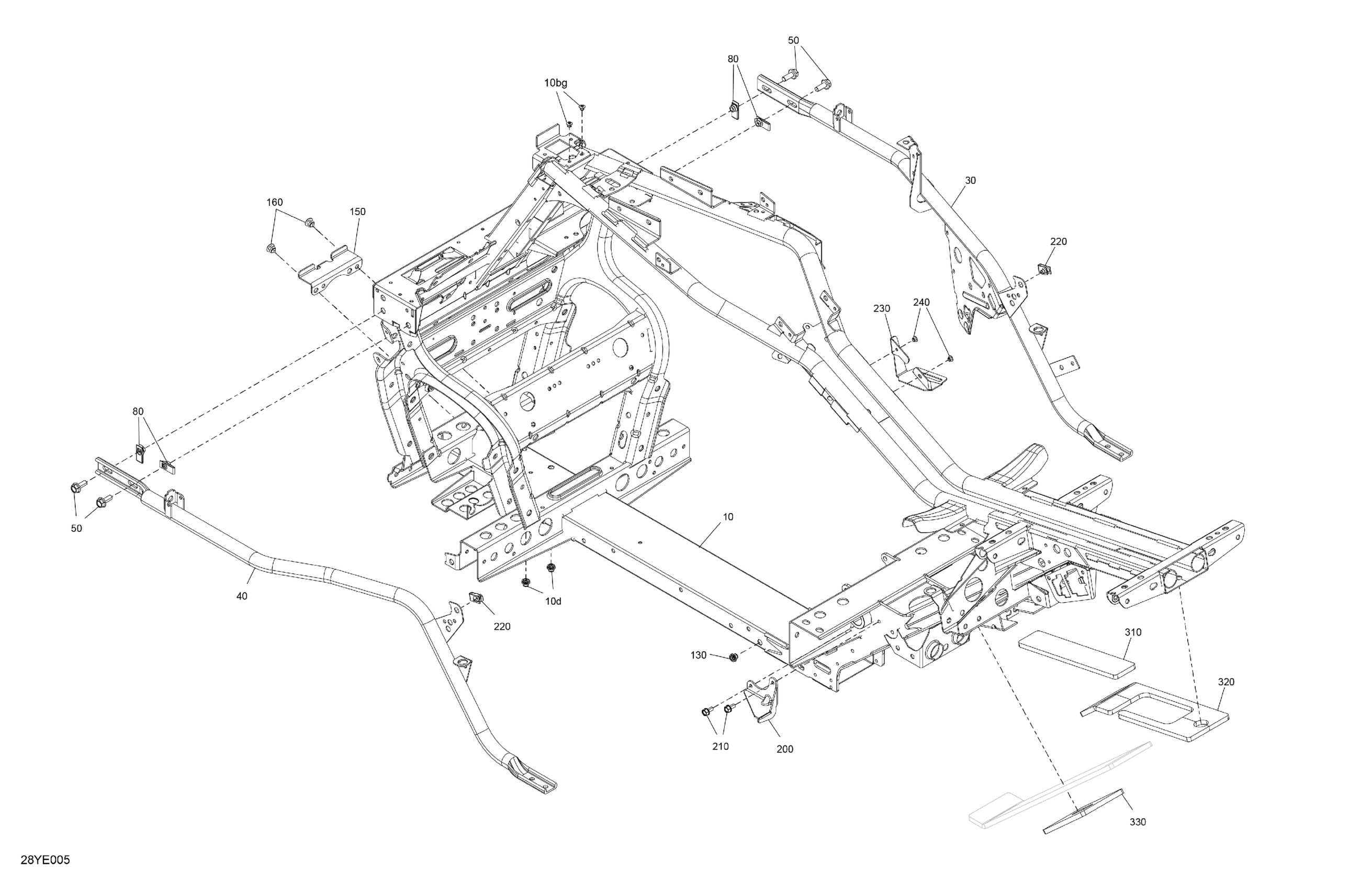

Can-Am Europe - RT STS - Special Edition - G2SG - Vegas White Satin, 2025 Frame - System Diagram

Description

Price

Chassis Rt | Includes 10 to 10bg

219800619

$1,049.99

10d

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10bg

Pop Rivet 3/16 X ,425

293150293

$0.35

RH Side Member

705211982

$204.99

LH Side Member | Includes 40 to 40a6

705212683

$204.99

Hex Screw Washer Head M8 X 20

207582054

$3.17

Panel Nut M8 X 1.25

250100118

$2.09

130

Insert Half Hex Body M6 x 1.0

250100199

$3.19

150

Battery Support

705212716

$5.09

160

Rivet Ornit 6,5 X 12.5

293150265

$2.40

200

Stopper Swing Arm

705202587

$28.99

210

Hex. Flange Screw M6 X 12

210261250

$1.90

220

Panel Nut M6 X 1.0

250100198

$2.11

230

Latch Support

705208909

$17.49

240

Pop Rivet 3/16"

390402400

$0.35

310

Acoustic Insulation

293830213

$23.49

320

Acoustic Insulation

293830214

$18.99

330

Acoustic Insulation

293830215

$23.49
