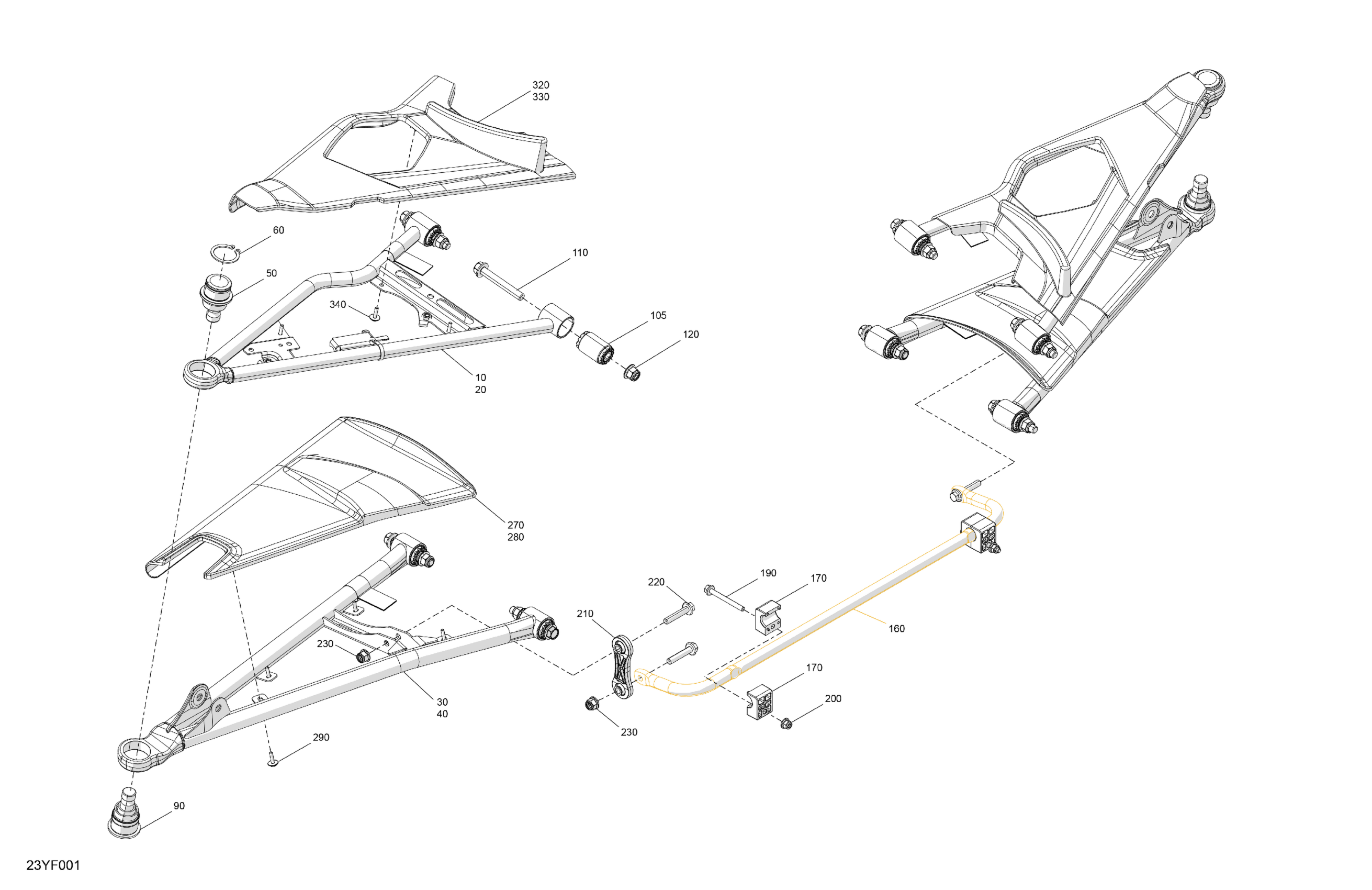

Can-Am Europe - RT - LIMITED - Dark Edition - G1TB - Mineral Blue, 2026 Suspension - Front Diagram

Description

Price

LH Upper Suspension Arm

706205880

$159.00

RH Upper Suspension Arm

706205881

$159.00

LH Lower Suspension Arm

706201733

$159.00

RH Lower Suspension Arm

706201734

$159.00

Ball Joint

706202507

$58.89

Circlip

293370035

$2.55

Ball Joint

706202508

$42.00

105

Suspension Arm Bushing

706205028

$14.00

110

Hex. Flange Screw M10 X 70

207607056

$3.38

120

Flange Elastic Nut M10

233201466

$2.63

160

Sway Bar

706202800

$91.00

170

Stabilizer Bushing

706201391

$9.00

190

Hex. Flange Screw M6 X 60

250000778

$3.61

200

Hex. Flange Elastic Nut M6

233261466

$1.66

210

Tie Rod

706200671

$21.00

220

Hex. Flange Screw M8 X 40

207684054

$2.06

230

Elastic Flange Nut M8

233281464

$0.83

270

LH Lower Air Deflector

706201319

$23.00

280

RH Lower Air Deflector

706201320

$23.00

290

Screw M4 X 16

250000725

$2.87

320

LH Upper Air Deflector

706204026

$25.00

330

RH Upper Air Deflector

706204027

$25.00

340

Screw M4 X 16

250000725

$2.87
