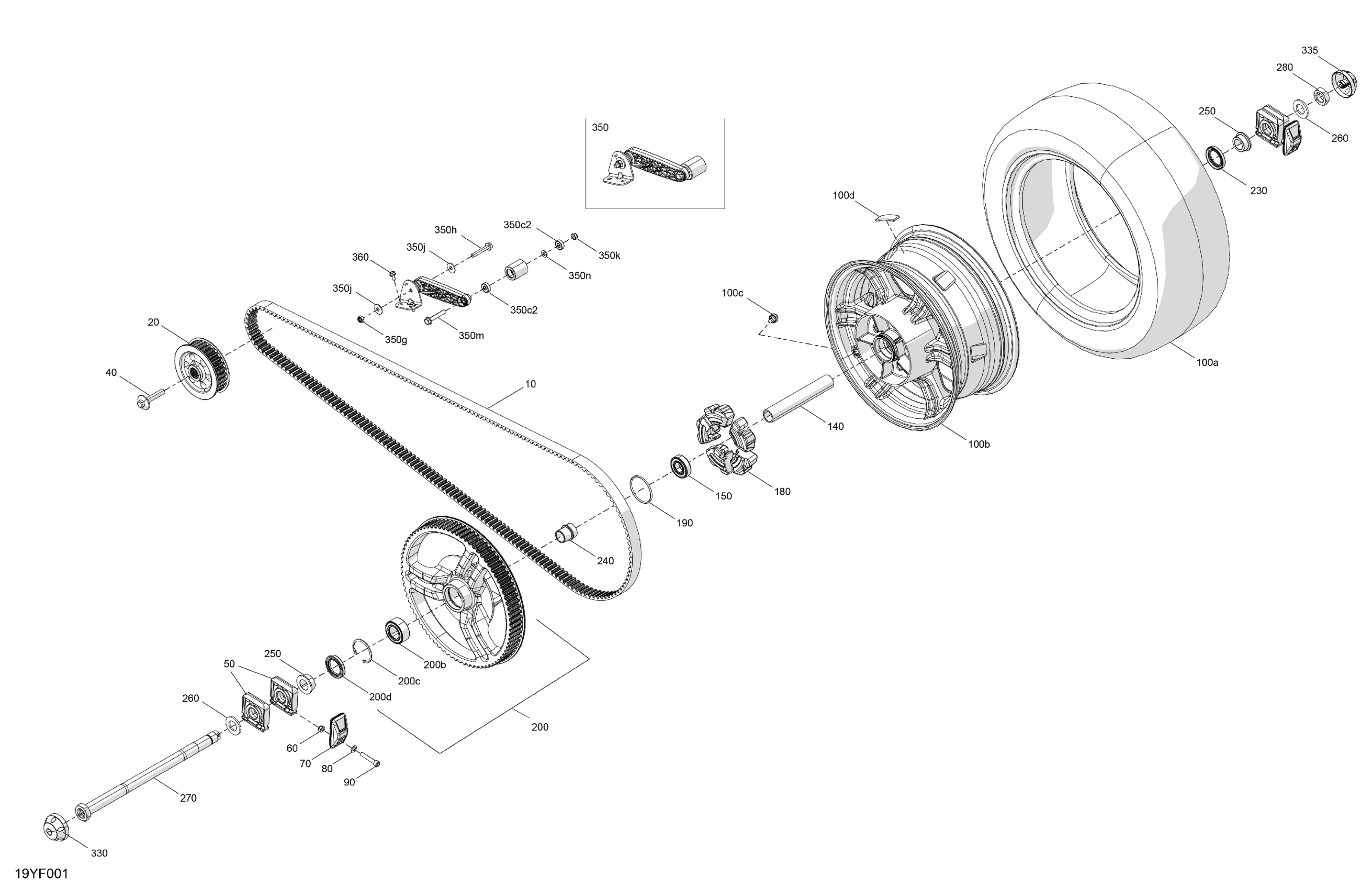

Can-Am Europe - RT - LIMITED - Dark Edition - G1TB - Mineral Blue, 2026 Drive - Rear - Common Parts Diagram

Description

Price

Belt_Drive

705504096

$409.99

Catalyst Gray, Sprocket Wheel 28 Teeth

705504092

$153.49

Hex Flange Screw DIN.6921 S.Grip

250001017

$13.22

Sliding Block

705502448

$14.82

Hex. Elastic Nut M8

250100141

$2.00

Adjustment Support

705502450

$15.89

Flat Washer 8 mm

234081410

$0.83

Socket Screw DIN.912

250000713

$2.85

100a

Rear Tire 225/50R15

705503631

$201.49

100b

Black, Rear Rim

705501992

$391.99

100c

Rim Valve With Cap

705400193

$8.69

100d

Self Adhesive Weight, 5G 20mm

705502106

$4.69

140

Spacer Tube

705502093

$17.59

150

Ball Bearing

293350186

$12.65

180

Shock Absorber Bushing

705503473

$21.49

190

O-Ring

293300124

$3.38

200

Carbon Black, Sprocket Wheel 79 Teeth Ass'y | Included 200 to 200d

705503311

$499.99

200b

Double Bearing Ball

293350152

$30.99

200c

Circlip

293370053

$9.95

200d

Seal

293200094

$10.33

230

Seal

293200094

$10.33

240

Spacer

705500853

$23.49

250

Spacer

705501602

$19.49

260

Flat Washer

250200163

$3.49

270

Rear Wheel Axle

705501691

$99.49

280

Hex. Jam Nut M24

250100170

$12.12

330

Wheel Cap

705503904

$9.27

335

Wheel Cap

705503904

$9.27

350

Idler Pulley Kit Rt | Includes 350 to 350n

705503869

$104.99

350c2

Bearing

293350149

$5.89

350g

Hex. Elastic Stop Nut M8

232581414

$0.56

350h

Hex. Flange Screw M8 X 50

207685044

$1.69

350j

Flat Washer 8 mm

234082410

$1.47

350k

Hex. Elastic Stop Nut M8

232581414

$0.56

350m

Hex. Flange Screw M8 X 50

207685044

$1.69

350n

Flat Washer 8 mm

234081410

$0.83

360

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90
