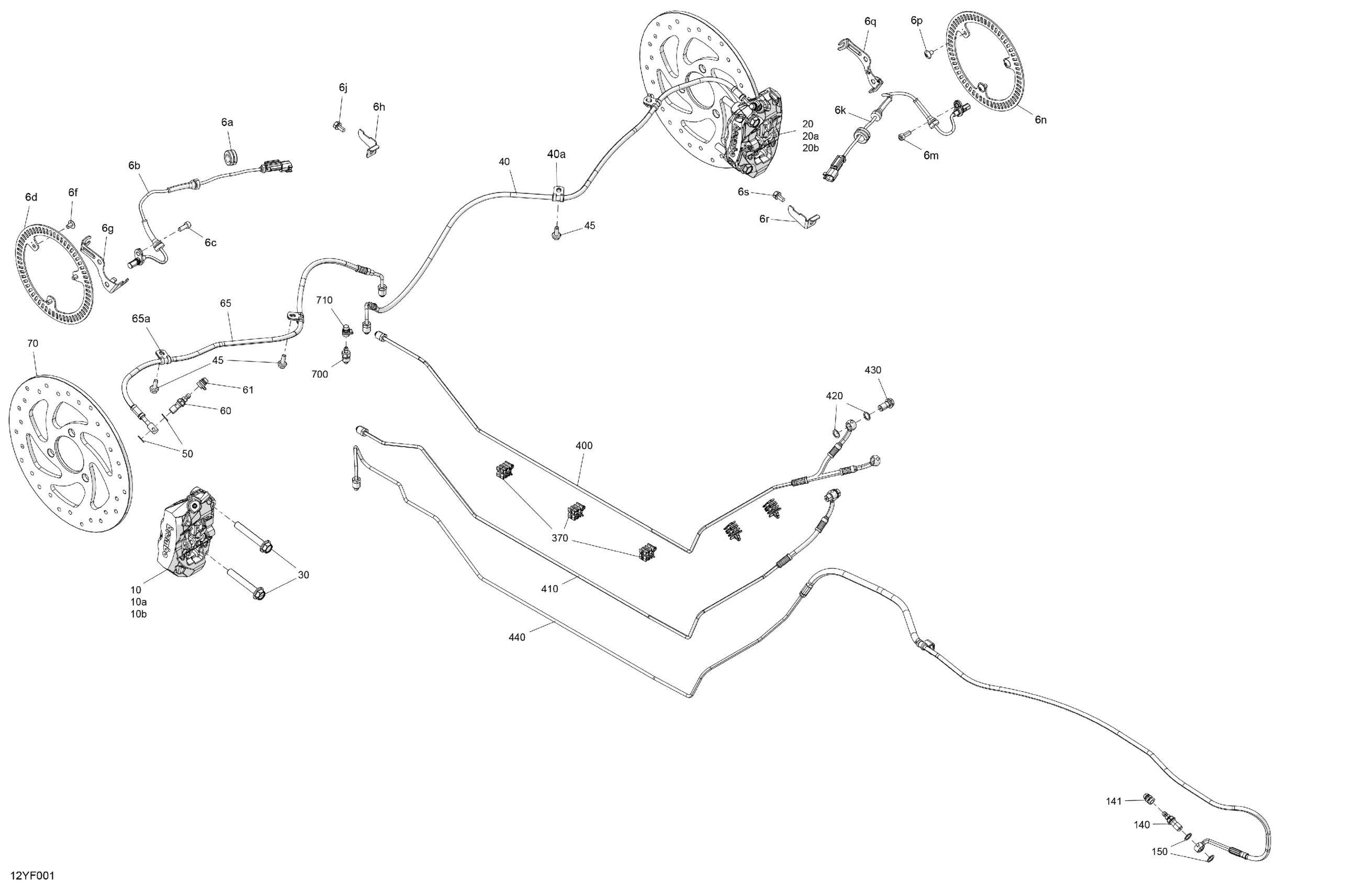

Can-Am Europe - RT - LIMITED - Dark Edition - G1TB - Mineral Blue, 2026 Mechanic - Front Brakes Diagram

#

Description
Price

10

LH Front Brake Caliper | Includes 10 to 10b

705602327

$370.00

10a

Brake Pad Kit

219800237

$79.00

10b

Spring/Pin/Clip Kit

219800238

$27.00

20

RH Front Brake Caliper

705602328

$370.00

20a

Brake Pad Kit

219800237

$79.00

20b

Spring/Pin/Clip Kit

219800238

$27.00

30

Hex Flange Screw M10 X 65

207506556

$7.00

40

RH Front Brake Line | Includes 40 to 40a

705602031

$61.00

40a

Clamp

293650256

$4.36

45

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$1.74

50

Washer

414920600

$1.52

60

Banjo Bolt/ Bleeder

705601201

$17.66

61

Bleeder Bolt Cap

705601190

$4.28

65

LH Front Brake Line | Includes 65 to 65a

705602032

$61.00

65a

Clamp

293650256

$4.36

70

Front Disc Brake

705602408

$154.00

140

Banjo Bolt/ Bleeder

705601201

$17.66

141

Bleeder Bolt Cap

705601190

$4.28

150

Washer

414920600

$1.52

370

Anchorage Tube

705601987

$5.00

400

Central Brake Line

705602033

$78.00

410

Central Brake Line

705602034

$78.00

420

Washer

414920600

$1.52

430

Bolt

507032783

$6.00

440

Central Brake Line | Includes 440 to 440a

705602035

$78.00

700

Purge Screw M12 X 1.0

705602133

$11.98

710

Bleeder Bolt Cap

705601190

$4.28

6a

Grommet

293720095

$8.00

6b

Speed Sensor

710006981

$78.43

6c

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.37

6d

Front Sensor Wheel

705601512

$44.00

6f

Torx-truss M/s M6 X 10

250000995

$3.61

6g

LH Support Wire

710004860

$2.00

6h

Sensor Support

710009856

$12.00

6j

Hex. Flange Screw M6 X 12

210261250

$1.56

6k

Speed Sensor

710006981

$78.43

6m

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.37

6n

Front Sensor Wheel

705601512

$44.00

6p

Torx-truss M/s M6 X 10

250000995

$3.61

6q

RH Support Wire

710004861

$2.00

6r

Sensor Support

710009857

$11.00

6s

Hex. Flange Screw M6 X 12

210261250

$1.56
