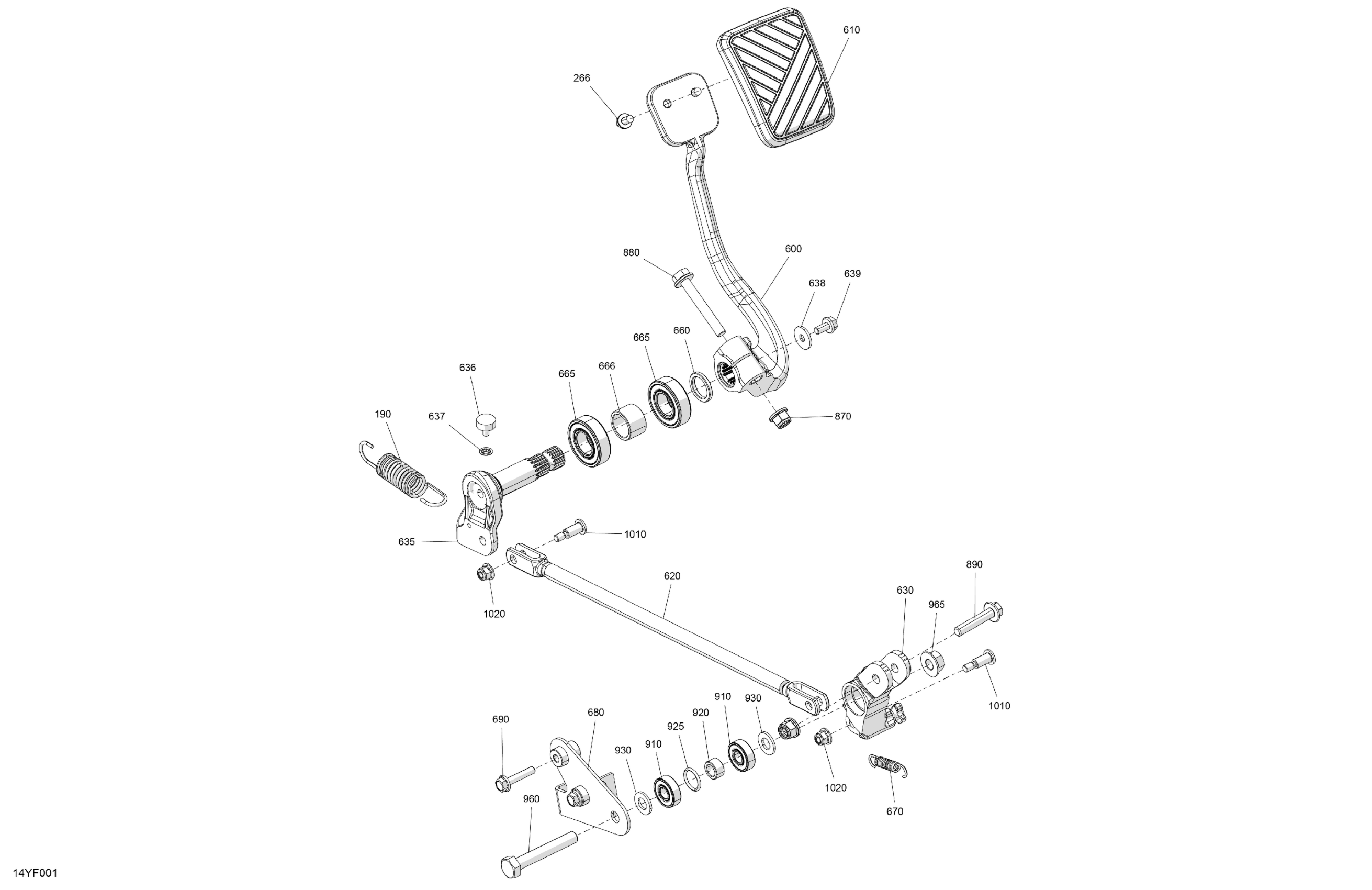

Can-Am Europe - RT - LIMITED - Dark Edition - G1TB - Mineral Blue, 2026 Mechanic - Brake Pedal Diagram

Description

Price

190

Tension Spring

705503085

$4.00

266

Hex. Flange Screw M6 X 12

210261250

$1.56

600

Brake Pedal | Includes 600 to 600a

705602008

$65.00

610

Rubber Pad | Includes 610 to 610a

705014023

$21.00

620

Link Rod Assembly | Includes 620 to 620a2a

705601847

$26.00

630

Machined Rocker

705602309

$62.00

635

Rocker | Includes 635 to 635b

705601982

$57.00

636

Rubber Stopper

708003414

$4.00

637

Push Nut

250100034

$1.11

638

Flat Washer

224061201

$1.11

639

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

660

Spacer

705602010

$7.00

665

Ball Bearing

705602007

$13.00

666

Spacer

705602011

$19.00

670

Compression Spring

705602243

$3.00

680

Rocker Axle

705602337

$24.00

690

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

870

Elastic Flange Nut M8

233281466

$0.83

880

Hex. Flange Screw M8 X 55

207685554

$4.39

890

Hex Flange Screw M8 X 40

207684056

$1.22

910

Ball Bearing

705601974

$7.03

920

Spacer

705602003

$7.00

925

O-Ring

293300191

$1.00

930

Washer

503183800

$3.20

960

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.31

965

Hex. Flange Nut M10

233101414

$4.10

1010

Flange Screw M6 X 26

250000714

$4.00

1020

Hex. Flange Elastic Nut M6

233261466

$1.66
