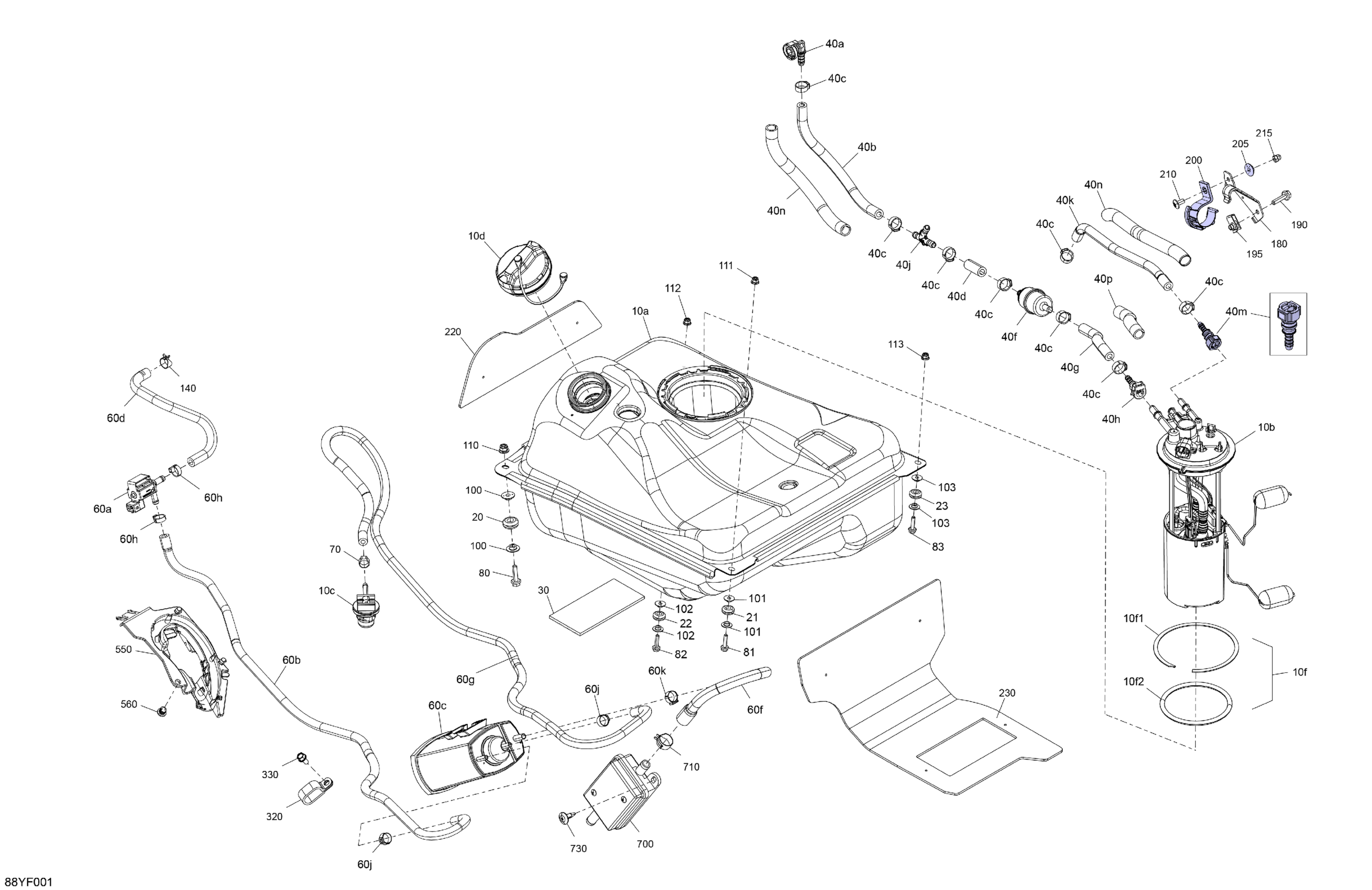

Can-Am Europe - RT - LIMITED - Dark Edition - G1TB - Mineral Blue, 2026 Engine - Fuel - Built Before September 2025 Diagram

#

Description
Price

10a

Fuel Tank

709001447

$600.00

10b

Fuel Pump Module

709001733

$372.00

10c

Rollover Valve

709000413

$52.28

10d

Gaz Cap

709000683

$16.00

10f

Seal Kit

219800248

$39.00

10f1

Not Available As Spare Parts

XXX

Unavailable

10f2

Not Available As Spare Parts

XXX

Unavailable

20

Grommet

709000582

$4.38

21

Grommet

709000582

$4.38

22

Grommet

709000582

$4.38

23

Grommet

709000582

$4.38

30

Self Adhesive Insulating Pad

709001504

$14.00

40a

Elbow Fitting 90°

293710105

$10.58

40b

Hose 7,94 Mm Id X 3000 Mm

219800602

$49.00

40c

Crimp Clamp

293650360

$5.00

40d

Hose 7,94 Mm Id X 3000 Mm

219800602

$49.00

40f

Fuel Filter

513034047

$20.89

40g

Hose 7,94 Mm Id X 3000 Mm

219800602

$49.00

40h

Female Quick Fitting Ass'y

709000684

$15.00

40j

Y Fitting

513034150

$6.02

40k

Hose 7,94 Mm Id X 3000 Mm

219800602

$49.00

40m

Quick Connect Pipe Fitting

293710192

$12.00

40n

Tubing 16 Mm 1000Mm Long

219704408

$6.23

40p

Protector Tube, 16 mm

513033231

$11.12

40q

Corrugated Sheath 16 mm ID 1000mm | Not Shown

219704651

Unavailable

60a

Purge Valve

709001449

$69.20

60b

Formed Hose

709001623

$31.00

60c

Vapor Canister

709000090

$87.66

60d

Formed Hose

709001678

$30.00

60f

Hose, 238MM

709001112

$29.00

60g

Hose

709001622

$30.00

60h

Crimp Clamp, 15.3-706R

293650047

$2.64

60j

Crimp Clamp

293650359

$5.00

60k

Crimp Clamp

293650360

$5.00

70

Crimp Clamp

293650359

$5.00

80

Hex. Flange Screw M6 X 25

207662554

$1.48

81

Hex. Flange Screw M6 X 25

207662554

$1.48

82

Hex. Flange Screw M6 X 25

207662554

$1.48

83

Hex. Flange Screw M6 X 25

207662554

$1.48

100

Bushing

709001287

$3.00

101

Bushing

709001287

$3.00

102

Bushing

709001287

$3.00

103

Bushing

709001287

$3.00

110

Hex. Flange Elastic Nut M6

233261466

$1.66

111

Hex. Flange Elastic Nut M6

233261466

$1.66

112

Hex. Flange Elastic Nut M6

233261466

$1.66

113

Hex. Flange Elastic Nut M6

233261466

$1.66

140

Universal Spring Clamp

513033029

$5.11

180

Fuel Filter Support

709000452

$19.00

190

Hex. Flange Screw M6 X 25

207662554

$1.48

195

Panel Nut M6 X 1.0

250100198

$1.73

200

Mounting Clamp

709001756

$5.00

205

Bushing

709001287

$3.00

210

Torx Truss Screw M6 X 12

250000767

$1.66

215

Domed Hexagonal Nut Din.1587

232361453

$1.60

220

Heat Shield

709001374

$21.00

230

Heat Shield

709001375

$39.00

320

Open Clamp

709000057

$5.52

330

Hex. Flange Screw M6 X 12

210261250

$1.56

550

Valve Purge Support

709001546

$7.00

560

Panel Fastener

518321954

$6.03

700

Air Filter

709000524

$43.69

710

Spring Clamp

513033865

$4.00

730

Tuflock Phillips Plastic Screw

414745900

$1.30
