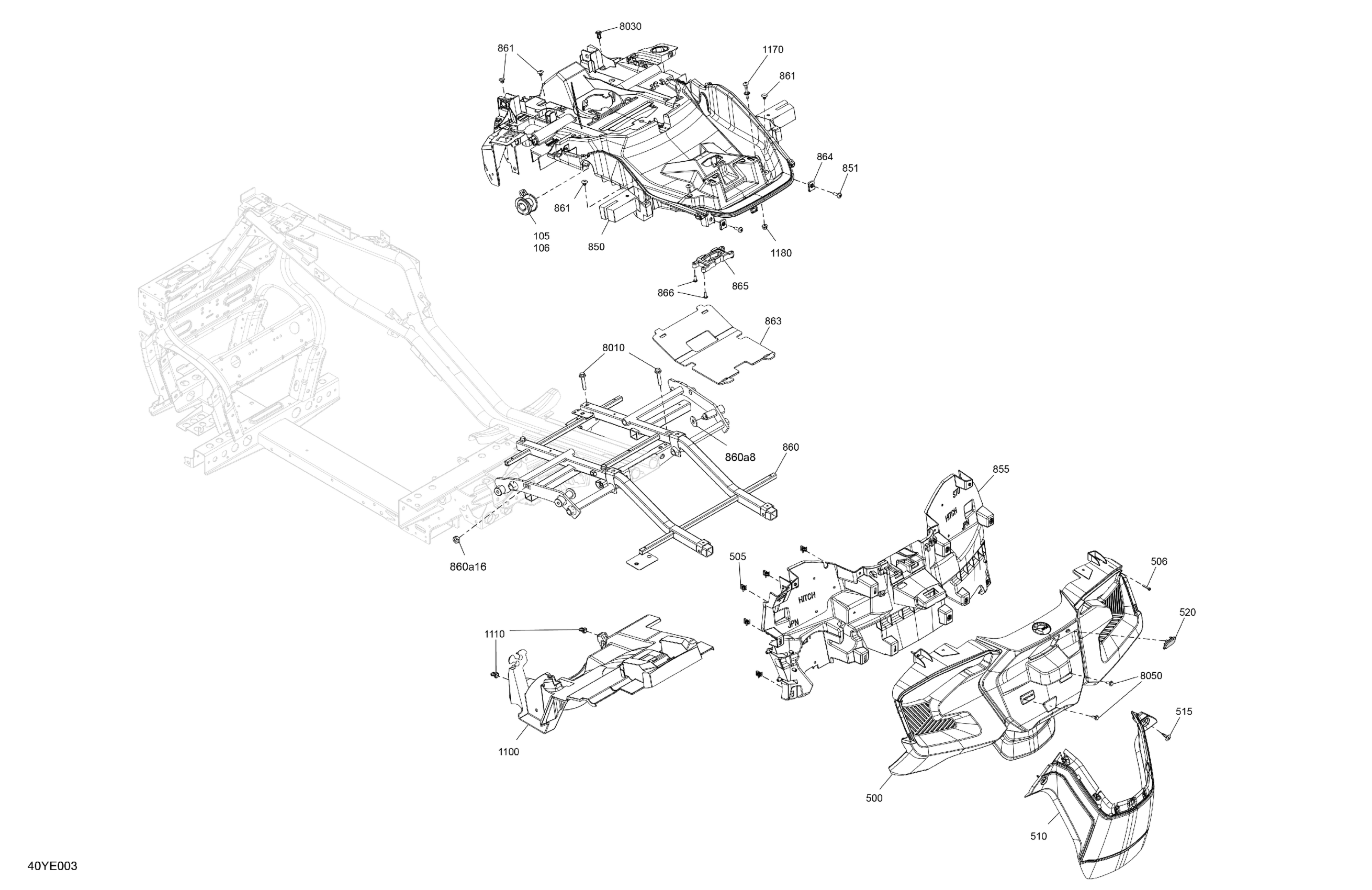

Can-Am Europe - RT LIMITED - Dark Edition - G1SB - Hyper Silver, 2025 Body - Cargo Structure And Rear Fenders Diagram

Description

Price

105

LH Anchorage Socket

708400404

$3.00

106

RH Anchorage Socket

708400441

$3.00

500

Rear Fender

219800618

$250.00

505

Edge Clip

517302785

$0.70

506

Hex. Flange Screw K40 X 25

241142560

$2.17

510

Rear Fender Extention

708301747

$205.00

515

Tuflock Phillips Plastic Screw

414745900

$1.30

520

Cap

708304956

$4.00

850

Rear Box Support

708304842

$110.00

851

Torx Screw M6 X 20

250000722

$1.34

855

Rear Box Support

708304839

$105.00

860

Rear Frame | Includes 860 to 860a18

708305058

$350.00

860a8

Flat Washer 10 mm, Stainless

234002600

$1.85

860a16

Hexagonal Nut

233701400

$0.57

860a18

Steel Wire S6 .9mm HI-DEP | Not Shown

75011200

Unavailable

861

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

863

Rubber Protector

708400407

$15.00

864

Panel Nut M6 X 1.0

250100208

$1.07

865

LinQ Fastener

708303172

$20.00

866

Torx-Truss M/S M5 X 14 S.Grip

250000763

$1.81

1100

Rear Wheel Arch

708303061

$57.00

1110

Tuflok Plastic Rivet

293150230

$1.21

1170

Striker

708303392

$4.00

1180

Hex. Flange Elastic Nut M6

233261494

$1.26

8010

Hex. Flange Screw M8 X 40

207684054

$2.06

8030

Tuflok Plastic Rivet

293150230

$1.21

8050

Hex. Plastic Screw M4.8 X 16

243141630

$1.74
