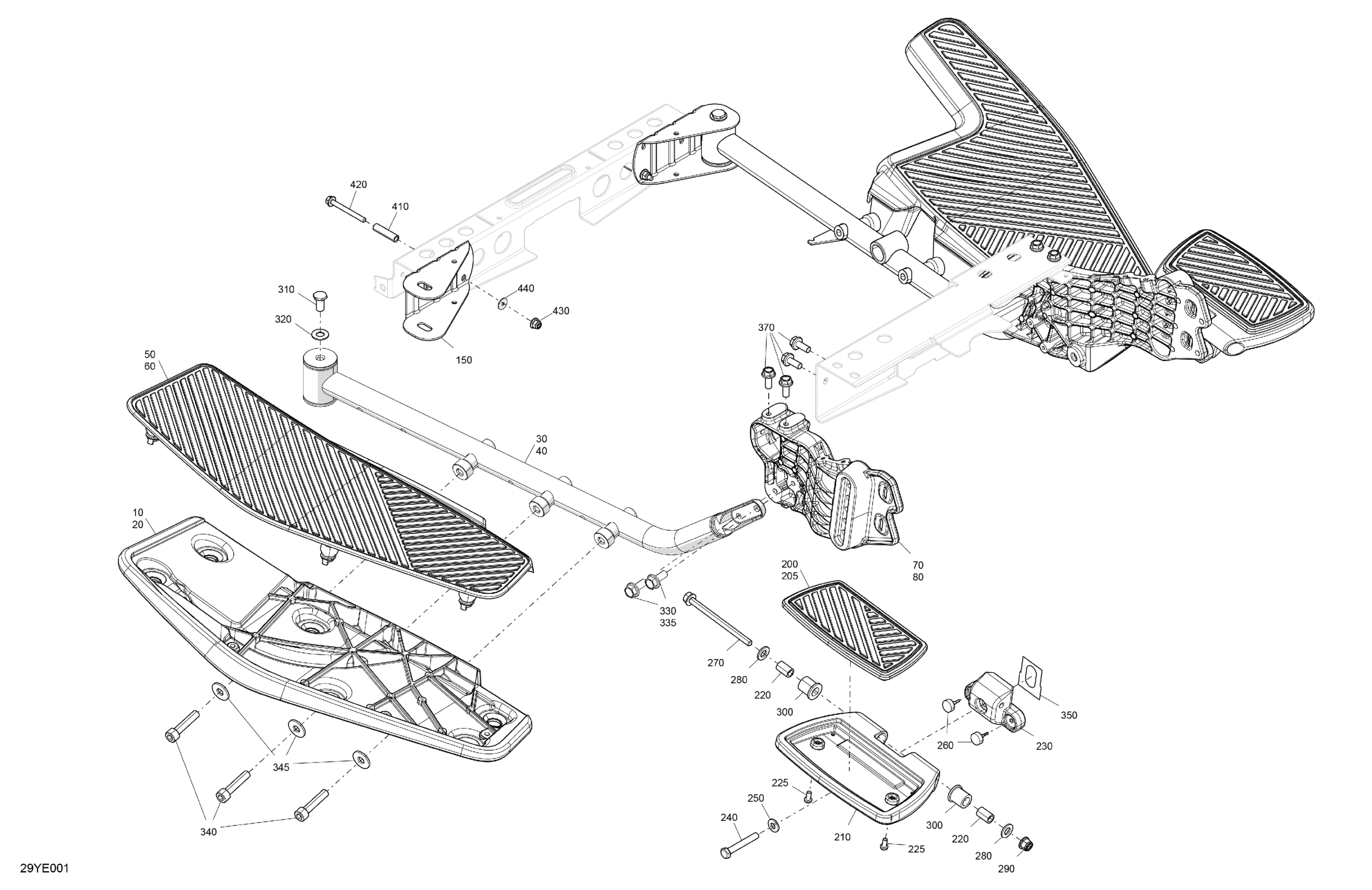

Can-Am Europe - RT LIMITED - Dark Edition - G1SB - Hyper Silver, 2025 Frame - Footrest Diagram

Carbon Black, LH Front Footrest | Includes 10 to 10b

705013902

$150.00

Carbon Black, RH Front Footrest | Includes 20 to 20b

705013903

$150.00

RH Front Footrest Support

705019402

$140.00

LH Front Footrest Support

705019401

$140.00

RH Front Footrest Pad | Includes 50 to 50a

705014002

$220.00

LH Front Footrest Pad | Includes 60 to 60a

705014004

$220.00

Carbon Black, RH Rear Footrest Support

705017860

$220.00

Carbon Black, LH Rear Footrest Support

705019333

$205.00

Tube Support | Includes 150 to 150a

705008950

$23.00

RH Rear Footrest Pad | Includes 200 to 200a

705014609

$49.00

LH Rear Footrest Pad | Includes 205 to 205a

705014610

$49.00

Carbon Black, Rear Footrest | Includes 210 to 210b

705015564

$135.00

Bushing

705002153

$11.06

Allen Plastite Screw #12

250000099

$2.31

BLOCK_SLIDING PAINTED B-322-TX | Includes 230 to 230b

548875375

$59.00

Hex. Screw M8 X 55

207085556

$1.65

Conical Spring Washer M8

234281474

$1.25

Seat Stopper

708003866

$3.61

Hex. Flange Screw M8 X 110

230681034

$4.28

Washer

503183800

$3.20

Hex. Flange Elastic Nut M8

233281434

$1.74

Rubber Bushing

705003018

$10.00

Hex. Cap Screw Full Thread M10 X 20

250000719

$6.00

Washer

506152582

$4.42

Hex Flange Screw M8 X 20

207582046

$1.25

Hex Flange Screw M8 X 20

207582046

$1.25

Socket Screw Nylon Patch M10 X 45

250001120

$1.34

Washer

503191926

$1.57

Film, Protective

705014173

$7.00

Hex Screw Washer Head M8 X 20

207582054

$2.61

Spacer

705018575

$13.00

Hex. Flange Screw M6 X 60

250000778

$3.61

Hex. Flange Elastic Nut M6

233261466

$1.66

Washer M6

250200029

$1.83
