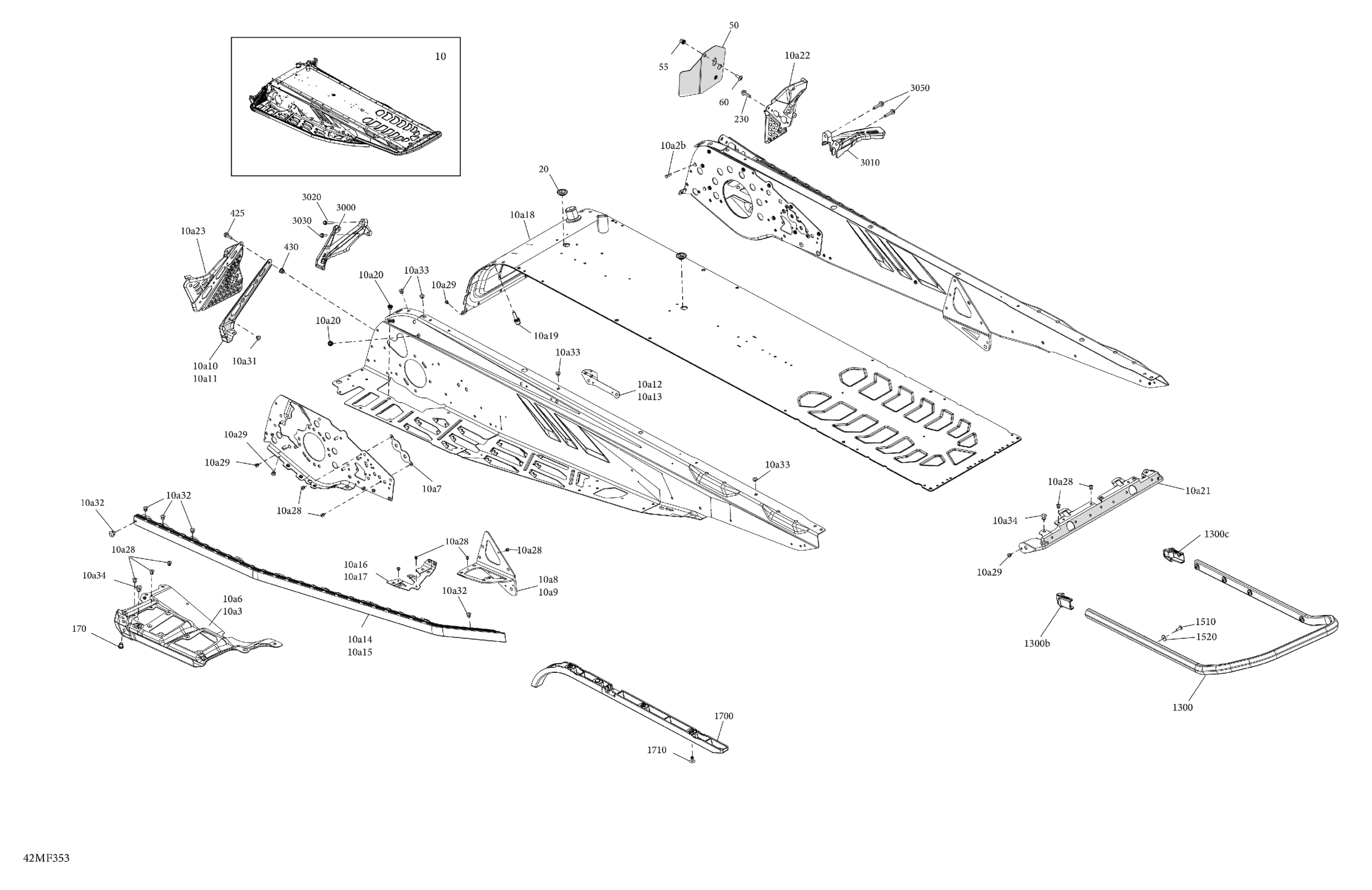

Ski-Doo Europe - RENEGADE - Adrenaline - 900 ACE - MBTB - Deep Black - 15X137X1.25RS Track, 2026 Frame - System - Rear Section Diagram

Description

Price

Deep Black, Chassis Tunnel Module 137

415130886

Unavailable

10a2b

Clinch Stud M6 X 20

250300027

$1.87

10a3

Deep Black, RH Footrest Reinforcement

518330738

$79.82

10a6

Deep Black, LH Footrest Reinforcement

518331523

$79.82

10a7

Front Suspension Arm Reinforcement

518327233

$15.64

10a8

RH Suspension Bracket This part replaces 518329622.

518329622

Unavailable

10a9

LH Rear Suspension Arm Anchorange

518332310

$41.76

10a10

Stirrup Reinforcement

518334507

$17.88

10a11

Deep Black, LH Chassis Reinforcement

518332924

$17.88

10a12

LH Member Fixation Plate

518330299

$15.64

10a13

RH Under Chassis Reinforcement

518331745

$16.39

10a14

RH Roller

518328451

$175.34

10a15

LH Roller

518328452

$175.34

10a16

LH Footrest Reinforcement

518332296

$17.88

10a17

RH Footrest Reinforcement

518332297

$17.88

10a18

Radiator Tunnel 137

518335125

$682.06

10a19

Protruding Stud M8 x 22

250300652

$4.15

10a20

Clinch Nut M6 Hexsert

605636003

$4.00

10a21

Rear Cap

518328990

$20.12

10a22

RH Footrest

518334509

$20.12

10a23

LH Foot Protector

518334305

$23.10

10a28

Avex Rivet

390909100

$0.28

10a29

Avex Rivet

390909200

$0.28

10a31

Rivet Ornit 6,5 X 10.5

293150264

$1.88

10a32

Rivet Ornit 6,5 X 12.5

293150265

$1.88

10a33

Ornit Rivet 6,5 X 14.5

293150266

$1.88

10a34

Rivet Ornit 6,5 X 16.5

293150267

$1.88

Black, Plug

293730052

$6.18

Heat Shield

518331823

$7.19

Insert

293450275

$11.36

Torx Head Screw M6 X 16

250000717

$2.00

170

Insert M5 - 0.8

293450267

$4.09

230

Hex. Flange Screw M6 X 20

207562056

$2.00

425

Hex. Flange Screw M6 x 35

207663546

$0.99

430

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1300

Rear Bumper | Includes 1300 to 1300c

518330033

$105.94

1300b

LH Cap

520001837

Unavailable

1300c

Cap

520001841

Unavailable

1700

Front Protector

518329982

$17.13

1710

Black, Ornit Rivet 3/16 X ,675

293150308

$1.19

3000

LH Front Stirup

518334924

$22.36

3010

Toe Hold

518329134

$15.64

3020

Hex. Flange Screw M6 X 30

250001211

$3.73

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

3050

Hex Screw Forming M6 x 25

250001124

$1.88

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

1520

Flat Washer

224061201

$1.27
