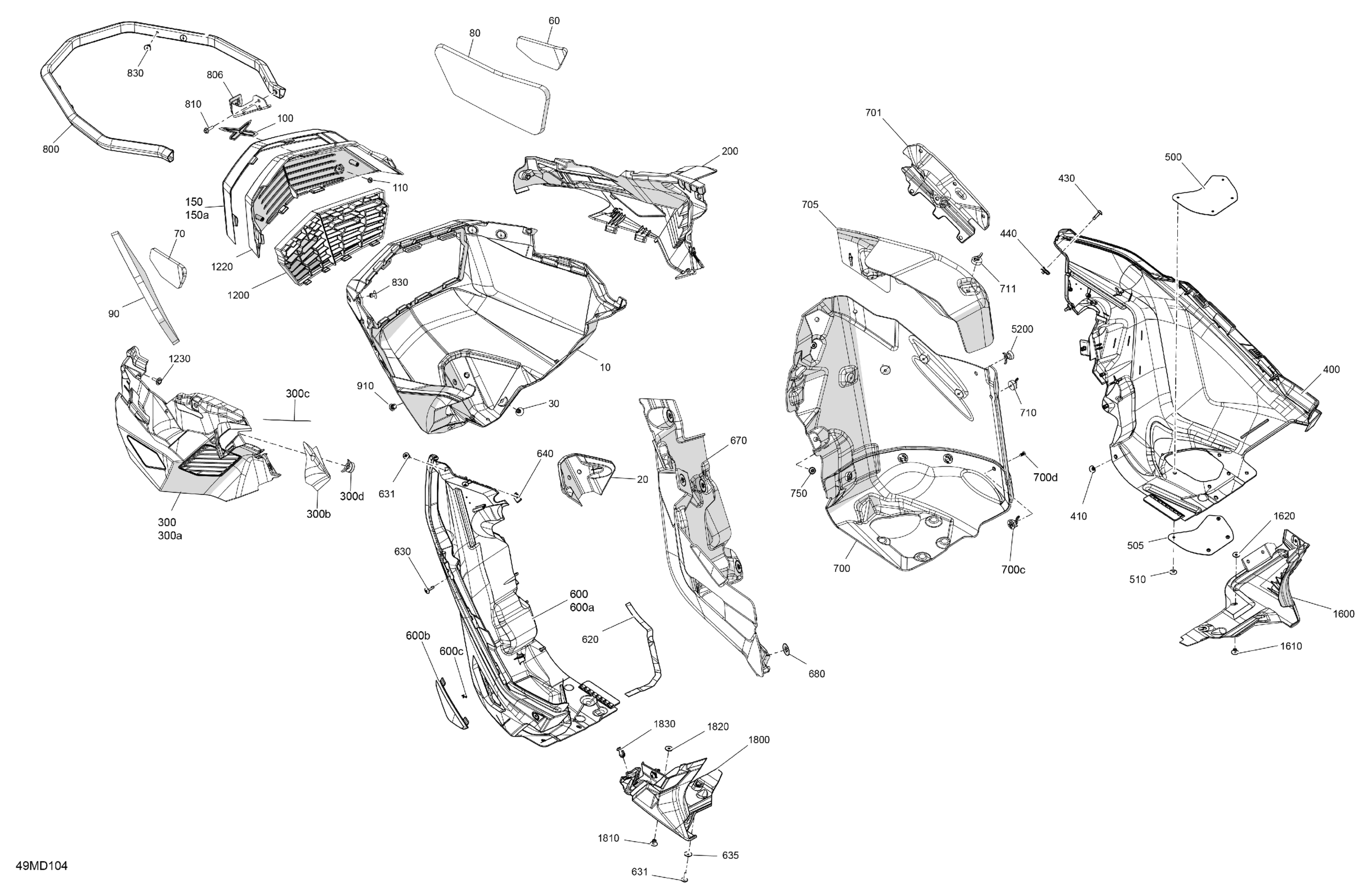

Ski-Doo Europe - RENEGADE 900 ACE Turbo R - X-RS - DBRP - Hyper Silver - 137X15X1.5IR Track, 2024 Body - Bottom Pan Diagram

#

Description
Price

10

Deep Black, Front Bottom Pan

502008525

$176.84

20

Skid Plate

502008466

$6.04

30

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

60

RH Front Central Bottom Pan Foam

502008308

$7.31

70

LH Front Central Bottom Pan Foam

502008309

$11.55

80

Bonded Foam

502008355

$17.13

90

Bonded Foam

502008356

$6.57

100

Emblem X

502008454

$8.39

110

Push Nut

250100206

$0.96

150

Hyper Silver, Central Trim | Includes 150 to 150a

502008470

$128.33

150a

Deep Black, Central Trim

502008354

$11.81

200

Deep Black, RH Bottom Pan Cap

502008264

$55.19

300

Deep Black, LH Bottom Pan Cap Ass'y | Includes 300 to 300d

502008529

Unavailable

300a

Deep Black, LH Bottom Pan Cap

502008265

$55.19

300b

LH Front Heat Shield

502008487

$4.40

300c

LH Front Heat Shield

502008575

$4.03

300d

Stopper

502008610

$1.88

400

Deep Black, RH Bottom Pan

502008663

$124.60

410

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

430

Torx Truss M5 X 20

250000586

$4.15

440

Panel Nut M5 X 0.8

250000958

$4.00

500

Plate

502007868

$1.96

505

Plate

502007868

$1.96

510

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

600

Deep Black, LH Bottom Pan Ass'y | Includes 600 to 600c

502008507

$123.85

600a

Deep Black, LH Bottom Pan

502008512

$91.76

600b

Bottom Pan Door

502007676

$35.79

600c

Hairpin Cotter

269800431

$0.97

620

Gasket, Neoprene 2000Mm Long

219704476

$14.51

630

Screw Torx M5 X 20

250001232

$1.31

631

Torx Truss M5 X 20

250000586

$4.15

635

Washer M5

250200025

$0.70

640

Panel Nut M5 X 0.8

250000958

$4.00

670

LH Lower Acoustic Panel

502008508

$41.01

680

Push Nut

508000853

$1.87

700

Rear Lower Acoustic Panel Ass'y | Includes 700 to 700d

502008699

$105.94

700c

Stopper

502008753

$1.78

700d

Dart

293730062

$1.87

701

Heat Shield

502008087

$5.91

705

Acoustic Panel

502008698

$197.73

710

Stopper

502008610

$1.88

711

Stopper

502008610

$1.88

750

Oval Head Torx Screw K60 X 16

250000546

$2.00

800

Spartan Red, Front Bumper

502008431

$83.55

806

Horn Bracket

502008424

$17.13

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.73

830

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

910

Torx Screw M6 X 25

250000758

$2.00

1200

Lower Prefilter Grille

502007979

$26.09

1220

Upper Grille Prefilter

502008736

$26.84

1230

Screw M4 X 16

250000725

$3.30

1600

RH Panel

502007714

$48.48

1610

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

1620

Washer

517124300

$0.18

1800

LH Panel

502007872

$50.72

1810

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

1820

Washer

517124300

$0.18

1830

Tuflok Plastic Rivet

293150230

$1.39

5200

Stopper

502008753

$1.78
