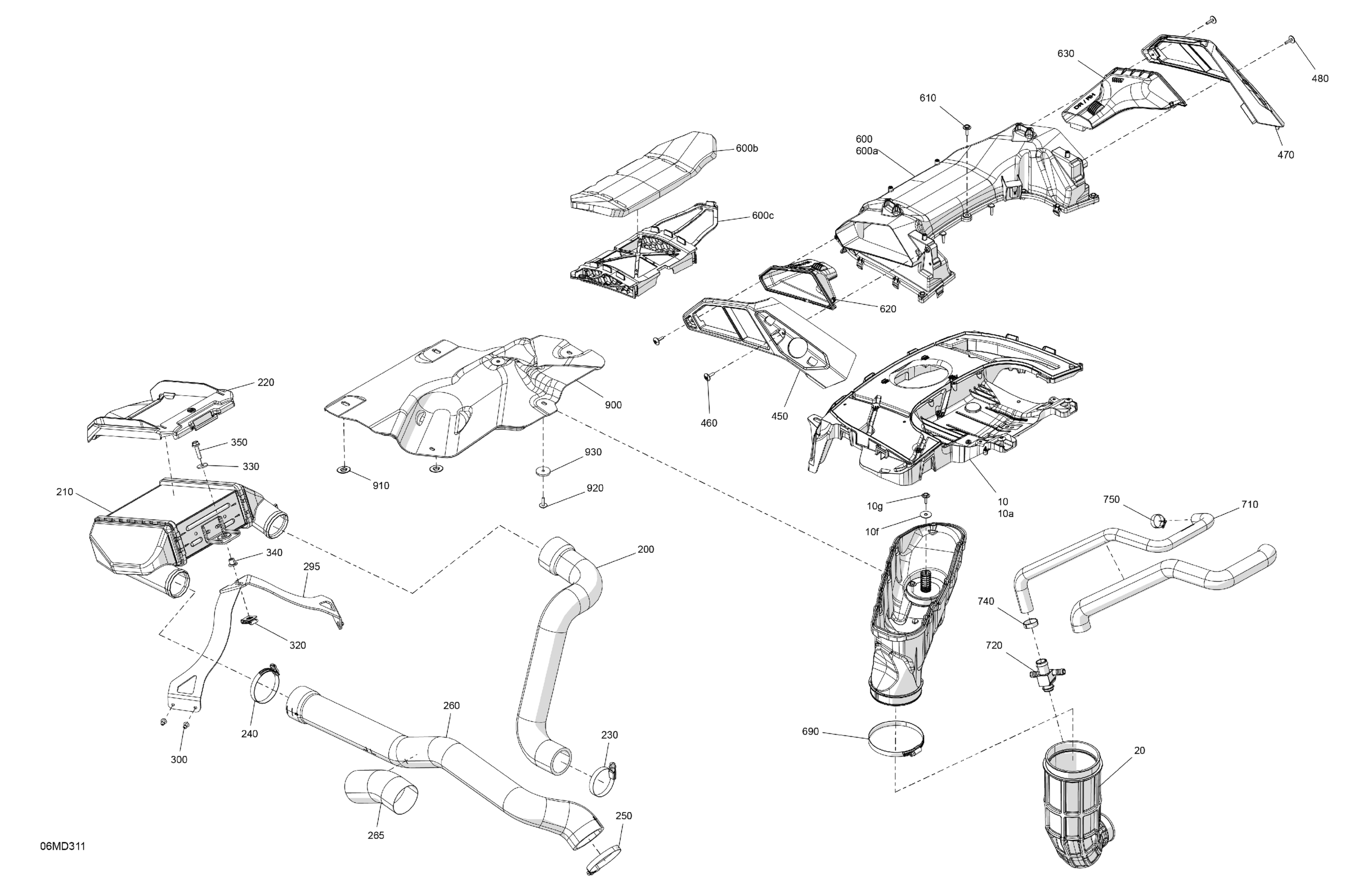

Ski-Doo Europe - RENEGADE 900 ACE Turbo R - X-RS - DBRN - Deep Black - 137X15X1.5IR Track, 2024 Engine - Air Intake Diagram

Description

Price

Molded Multipurpose Plate Ass'y | Includes 10 to 10g

508001262

$174.60

10a

Multi Purpose Plate

508001178

$38.78

10f

Flat Washer

224060201

$1.12

10g

Screw M4 X 16

250000725

$3.30

Intake Silencer

508001297

$49.97

200

Inlet Hose

508001319

$70.12

210

Intercooler

508001317

$408.93

220

Adapter

508001241

$18.63

230

Mounting Clamp

293650303

$3.57

240

Mounting Clamp

293650302

$3.79

250

Mounting Clamp

293650302

$3.79

260

Inlet Hose

508001318

$84.30

265

Protector Tube

508001033

$12.21

295

Rear Support

508001234

$35.04

300

Avex Rivet

390909100

$0.28

320

Panel Nut M6 X 1.0

250100208

$1.22

330

Flat Washer

250200082

$0.40

340

Bushing

293900151

$6.12

350

Hex. Flange Screw M6 X 25

207562544

$1.60

450

LH Air Filter

508001136

$31.31

460

Screw M4 X 16

250000889

$2.82

470

RH Air Filter

508001137

$39.52

480

Screw M4 X 16

250000889

$2.82

600

Upper Intake Silencer Duct Ass'y | Includes 600 to 600c

508001300

Unavailable

600a

Upper Intake Silencer Duct

508001289

$45.49

600b

Acoustic Insulation

508001224

$12.81

600c

Foam Support

508001222

$34.30

610

Screw M4 X 16

250000725

$3.30

620

LH Upper Resonator

508001199

$13.24

630

RH Resonator

508001200

$13.24

690

Norma Clamp

514052924

$12.15

710

Vent Hose

508001272

$14.21

720

Molded Breather

508001278

$25.34

740

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

750

Clamp Gear

293650285

$3.07

900

Acoustic Panel

508001263

$41.01

910

Push Nut

508000853

$1.87

920

Screw M4 X 16

250000725

$3.30

930

Thermal Insulation

508001264

$1.76
