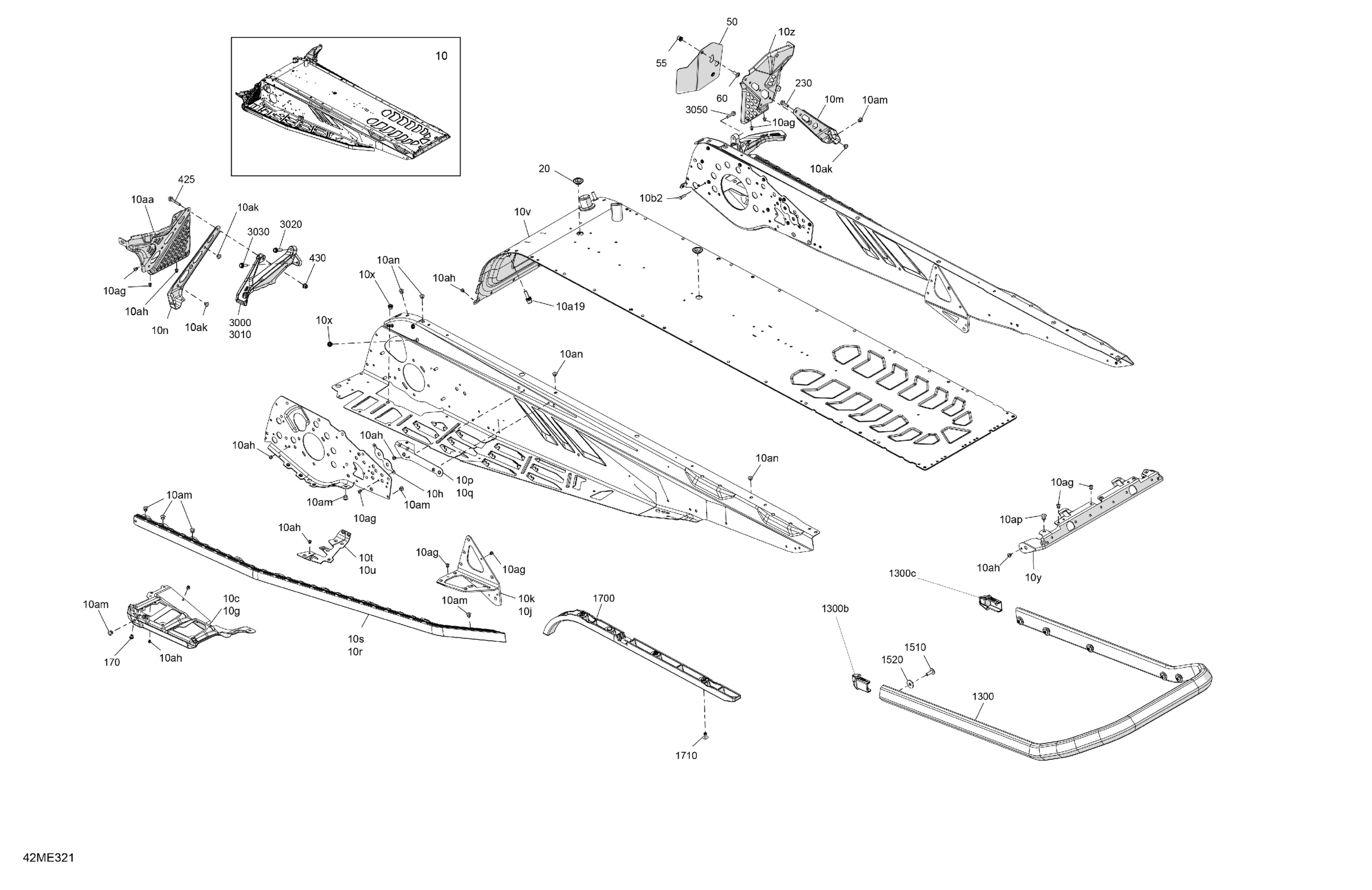

Ski-Doo Europe - RENEGADE - 900 ACE - Adrenaline - MBSC - Deep Black - 137X15X1.25RS Track - 2025 Frame - System - Rear Section Diagram

Description

Price

Deep Black, Chassis Tunnel Module 137

415130886

Unavailable

10b2

Clinch Stud M6 X 20

250300027

$1.92

10c

Deep Black, RH Footrest Reinforcement

518330738

$82.28

10g

Deep Black, LH Footrest Reinforcement

518331523

$82.28

10h

Front Suspension Arm Reinforcement

518327233

$16.12

10j

RH Rear Suspension Support This part replaces 518334389.

518334389

$43.05

10k

LH Rear Suspension Support

518334413

$43.05

10m

Stirrup Reinforcement

518334507

$18.43

10n

Deep Black, LH Chassis Reinforcement

518332924

$18.43

10p

LH Under Chassis Reinforcement

518331744

$16.12

10q

RH Under Chassis Reinforcement

518331745

$16.89

10r

RH Roller

518328451

$180.74

10s

LH Roller

518328452

$180.74

10t

LH Footrest Reinforcement

518332296

$18.43

10u

RH Footrest Reinforcement

518332297

$18.43

10v

Radiator Tunnel 137

518335125

$703.05

10a19

Protruding Stud M8 x 22

250300652

$4.28

10x

Clinch Nut M6 Hexsert

605636003

$4.12

10y

Rear Cap

518328990

$20.74

10z

RH Footrest

518334509

$20.74

10aa

LH Foot Protector

518334305

$23.82

10ag

Avex Rivet

390909100

$0.29

10ah

Avex Rivet

390909200

$0.29

10ak

Rivet Ornit 6,5 X 10.5

293150264

$1.94

10am

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10an

Ornit Rivet 6,5 X 14.5

293150266

$1.94

10ap

Rivet Ornit 6,5 X 16.5

293150267

$1.94

Black, Plug

293730052

$6.37

Heat Shield

518331823

$7.42

Insert

293450275

$9.89

Torx Head Screw M6 X 16

250000717

$1.74

170

Insert M5 - 0.8

293450267

$4.22

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 x 35

207663546

$0.95

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1300

Rear Bumper | Includes 1300 to 1300c

518330033

$109.20

1300b

LH Cap

520001837

Unavailable

1300c

Cap

520001841

Unavailable

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

1520

Flat Washer

224061201

$1.11

1700

Front Protector

518329982

$17.66

1710

Black, Ornit Rivet 3/16 X ,675

293150308

$1.23

3000

LH Front Stirup

518334924

$23.05

3010

Toe Hold

518329134

$16.12

3020

Hex. Flange Screw M6 X 25

250000793

$1.74

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

3050

Hex Screw Forming M6 x 25

250001124

$1.64
