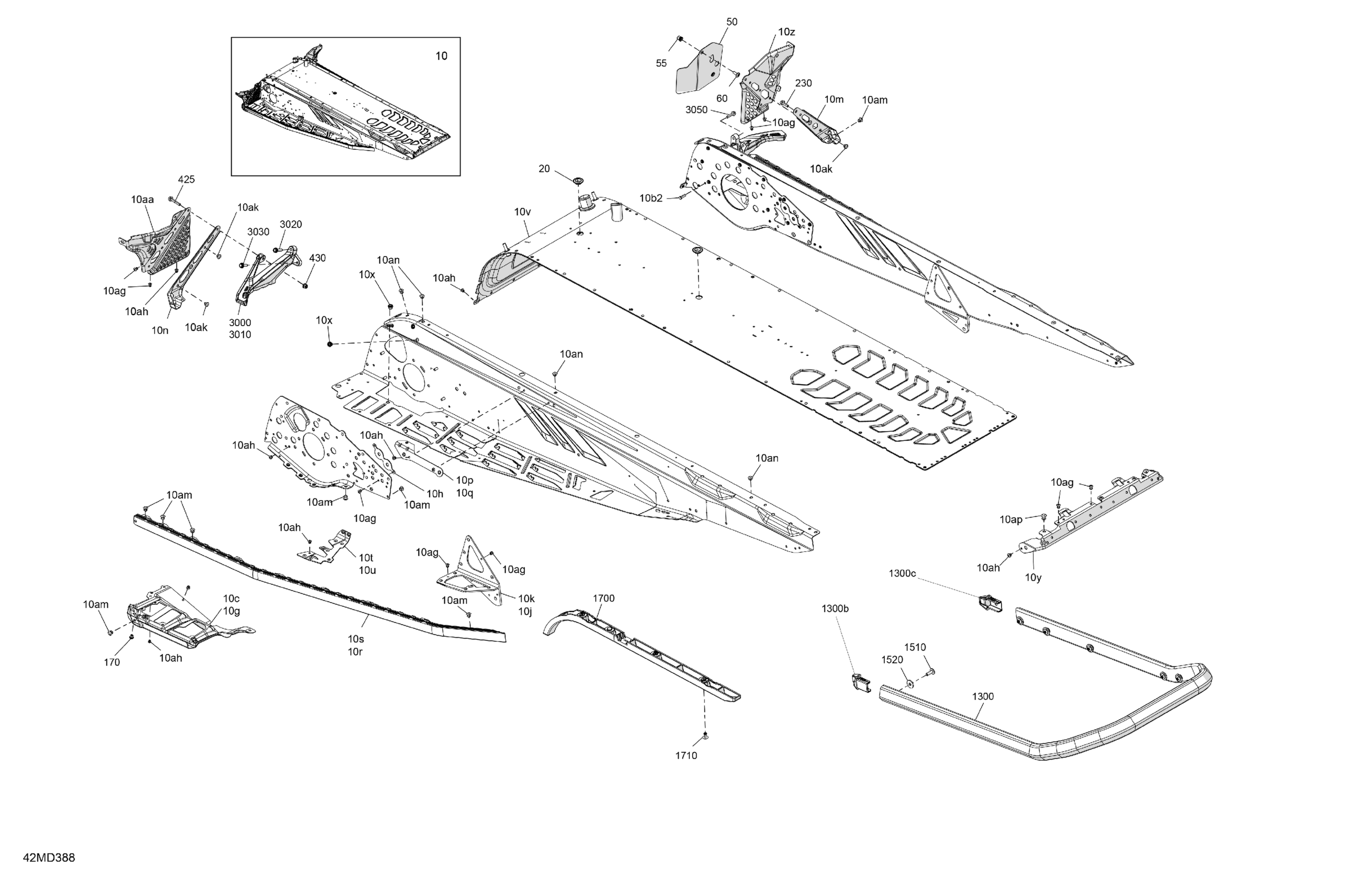

Ski-Doo Europe - RENEGADE 900 ACE - Adrenaline - MBRC - Deep Black - 137X15X1.6C Track, 2024 06- Frame - System - Rear Section Diagram

#

Description
Price

10

Deep Black, Chassis Tunnel Module 137 | Includes 10 to 10ap

415130779

Unavailable

10b2

Clinch Stud M6 X 20

250300027

$2.09

10c

Deep Black, RH Footrest Reinforcement

518330738

$88.99

10g

Deep Black, LH Footrest Reinforcement

518331523

$88.99

10h

Front Suspension Arm Reinforcement

518327233

$4.69

10j

RH Rear Suspension Support This part replaces 518334389.

518334389

$85.99

10k

LH Rear Suspension Support

518334413

$45.99

10m

Stirrup Reinforcement

518334507

$21.99

10n

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10p

LH Under Chassis Reinforcement

518331744

$18.99

10q

RH Under Chassis Reinforcement

518331745

$19.99

10r

RH Roller

518328451

$194.99

10s

LH Roller

518328452

$194.99

10t

LH Footrest Reinforcement

518332296

$21.99

10u

RH Footrest Reinforcement

518332297

$21.99

10v

Radiator Tunnel 137 Ass'y

518334488

$720.49

10x

Clinch Nut M6 Hexsert

605636003

$4.23

10y

Rear Cap

518328990

$22.49

10z

RH Footrest

518334509

$22.49

10aa

LH Foot Protector

518334305

$23.99

10ag

Avex Rivet

390909100

$0.30

10ah

Avex Rivet

390909200

$0.30

10ak

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10am

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10an

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10ap

Rivet Ornit 6,5 X 16.5

293150267

$2.40

20

Black, Plug

293730052

$9.19

50

Heat Shield

518331823

$10.49

55

Insert

293450275

$12.99

60

Torx Head Screw M6 X 16

250000717

$2.11

170

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 x 35

207663546

$1.00

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1300

Rear Bumper | Includes 1300 to 1300c

518330033

$111.49

1300b

LH Cap

520001837

Unavailable

1300c

Cap

520001841

Unavailable

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

3000

LH Front Stirup

518334924

$24.99

3010

Toe Hold

518329134

$18.99

3020

Hex. Flange Screw M6 X 25

250000793

$2.11

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

3050

Hex Screw Forming M6 x 25

250001124

$2.40
