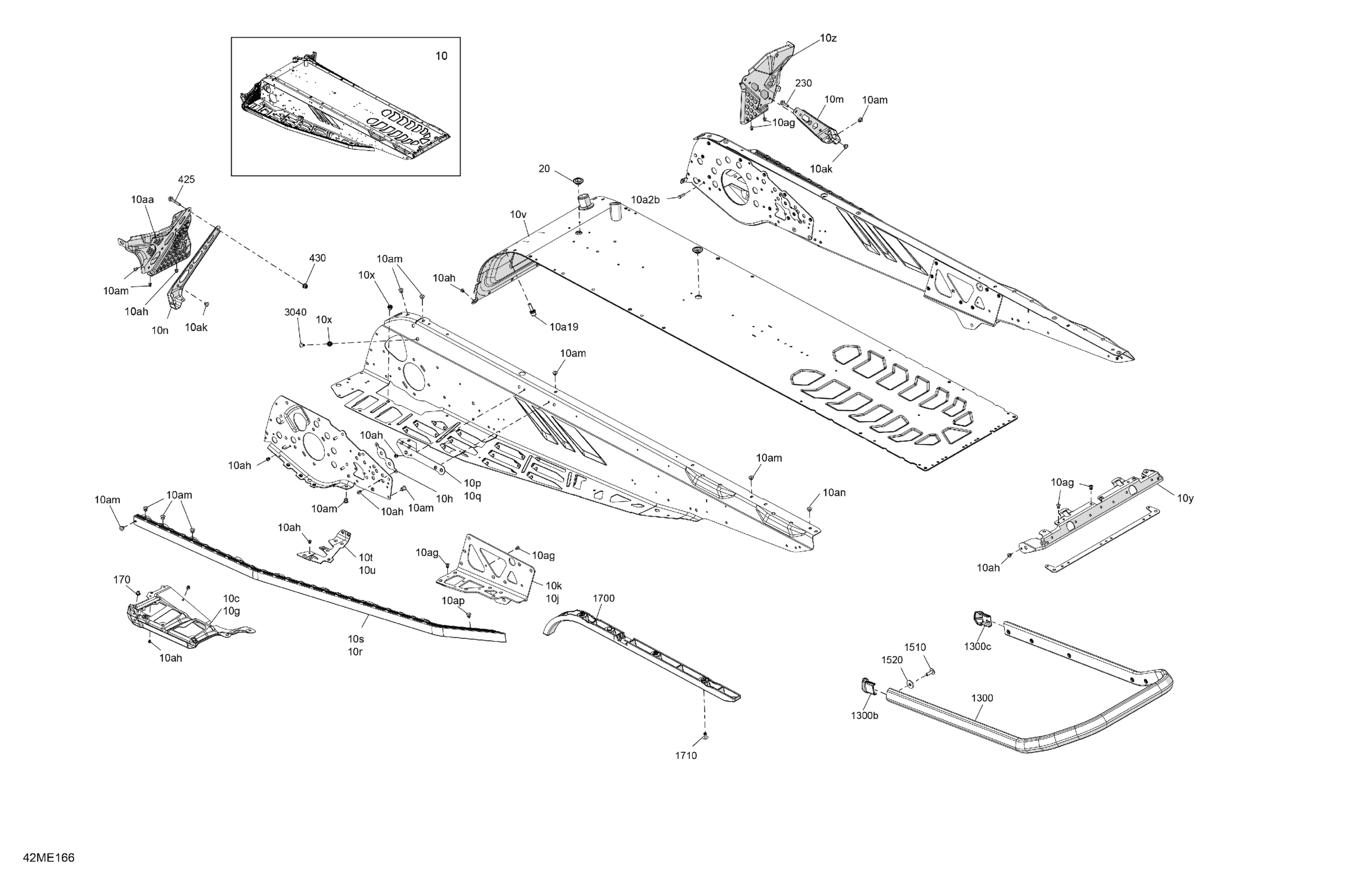

Ski-Doo Europe - RENEGADE - 600 ACE - SPORT - MCSB - Neo Yellow - 137X15X1.25RS Track - 2025 Frame - System - Rear Section Diagram

Full Moon, Chassis Tunnel Module 137

415130887

Unavailable

Clinch Stud M6 X 20

250300027

$1.87

Deep Black, RH Footrest Reinforcement

518330738

$79.82

Deep Black, LH Footrest Reinforcement

518331523

$79.82

Front Suspension Arm Reinforcement

518327233

$15.64

RH Rear Suspension Support This part replaces 518330095.

518334405

$93.25

LH Rear Suspension Support This part replaces 518330094.

518334404

$93.25

Stirrup Reinforcement

518334507

$17.88

Deep Black, LH Chassis Reinforcement

518332924

$17.88

LH Under Chassis Reinforcement

518331744

$15.64

RH Under Chassis Reinforcement

518331745

$16.39

RH Roller

518328451

$175.34

LH Roller

518328452

$175.34

LH Footrest Reinforcement

518332296

$17.88

RH Footrest Reinforcement

518332297

$17.88

Radiator Tunnel 137

518335125

$682.06

Protruding Stud M8 x 22

250300652

$4.15

Clinch Nut M6 Hexsert

605636003

$4.00

Rear Cap

518328990

$20.12

RH Footrest

518334509

$20.12

LH Foot Protector

518334305

$23.10

Avex Rivet

390909100

$0.28

Avex Rivet

390909200

$0.28

Rivet Ornit 6,5 X 10.5

293150264

$1.88

Rivet Ornit 6,5 X 12.5

293150265

$1.88

Ornit Rivet 6,5 X 14.5

293150266

$1.88

Rivet Ornit 6,5 X 16.5

293150267

$1.88

Black, Plug

293730052

$6.18

Insert M5 - 0.8

293450267

$4.09

Hex. Flange Screw M6 X 20

207562056

$2.00

Hex. Flange Screw M6 X 20

207562056

$2.00

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Rear Bumper | Includes 1300 to 1300c

518330033

$105.94

LH Cap

520001837

Unavailable

Cap

520001841

Unavailable

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

Flat Washer

224061201

$1.27

Front Protector

518329982

$17.13

Black, Ornit Rivet 3/16 X ,675

293150308

$1.19

Dart

293730079

$1.87
