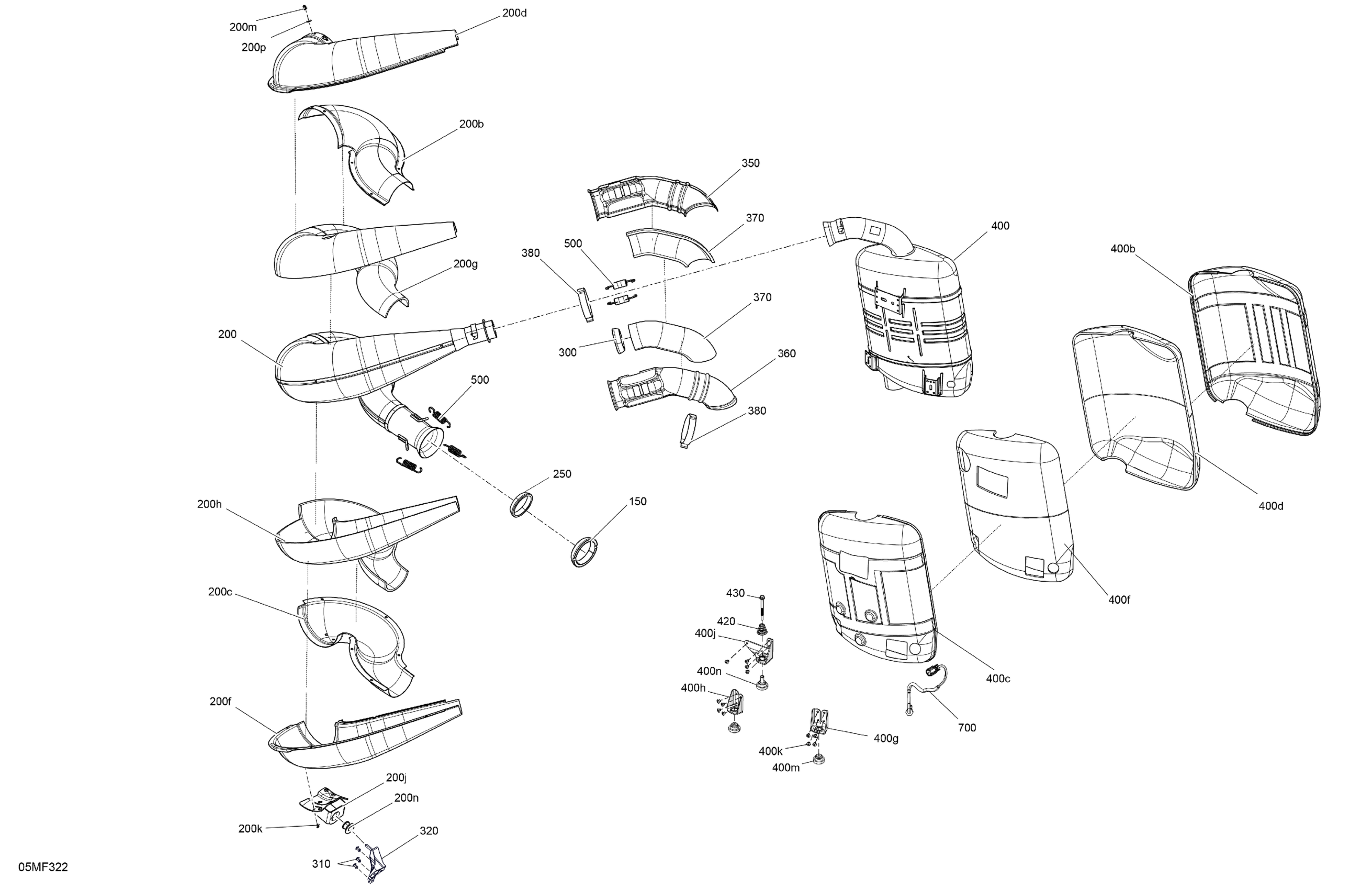

Ski-Doo Europe - MXZ - X-RS with Competition package - 600R E -TEC - UCTH - Mineral Blue - 15X137X1.6C Track, 2026 02- Engine - Exhaust Diagram

Description

Price

150

Exhaust Gasket

514053487

$26.49

200

Tuned Pipe Ass'y | Includes 200 to 200p

514056407

$752.49

200b

Front Upper Aluminum Shell

514055222

$39.99

200c

Shell

514056282

$36.99

200d

Upper Rear Shell

514056420

$82.99

200f

Rear Lower Aluminum Shell

514056141

$82.99

200g

Glass Wool

514056422

$20.99

200h

Glass Wool

514056352

$7.90

200j

Plate

514055844

$5.90

200k

Avex Rivet

390909200

$0.30

200m

Avex Rivet

390909200

$0.30

200n

Vibration Damper

514056375

$11.65

200p

Washer 3/16

514055537

$1.01

250

Seal

514055965

$19.49

300

Exhaust Gasket

514055294

$24.99

310

Rivet Ornit 6,5 X 16.5

293150267

$2.40

320

Overmolded Exhaust Support

514056346

$11.54

350

Front Shield

514055283

$40.99

360

Rear Shield

514055284

$40.99

370

Wool Glass Tail

514056381

$4.44

380

Clip

514056035

$16.18

400

Muffler Ass'y | Includes 400 to 400n

514056564

$784.49

400b

RH Deflector

514055980

$58.99

400c

LH Deflector

514056315

$63.99

400d

Glass Wool

514056353

$19.99

400f

Glass Wool

514056354

$8.39

400g

Exhaust Support

514056193

$6.40

400h

Exhaust Support

514056082

$6.40

400j

Exhaust Support

514056083

$6.40

400k

Pop Rivet 3/16 X ,425

293150293

$0.35

400m

Stopper

514055203

$20.49

400n

Stopper Ass'y

514056138

$13.22

420

Spring

514055282

$6.35

430

Hex. Flange Screw M6

250000926

$1.01

500

Spring

514056279

$5.99

700

Exhaust Temperature Sensor

514056266

$137.99
