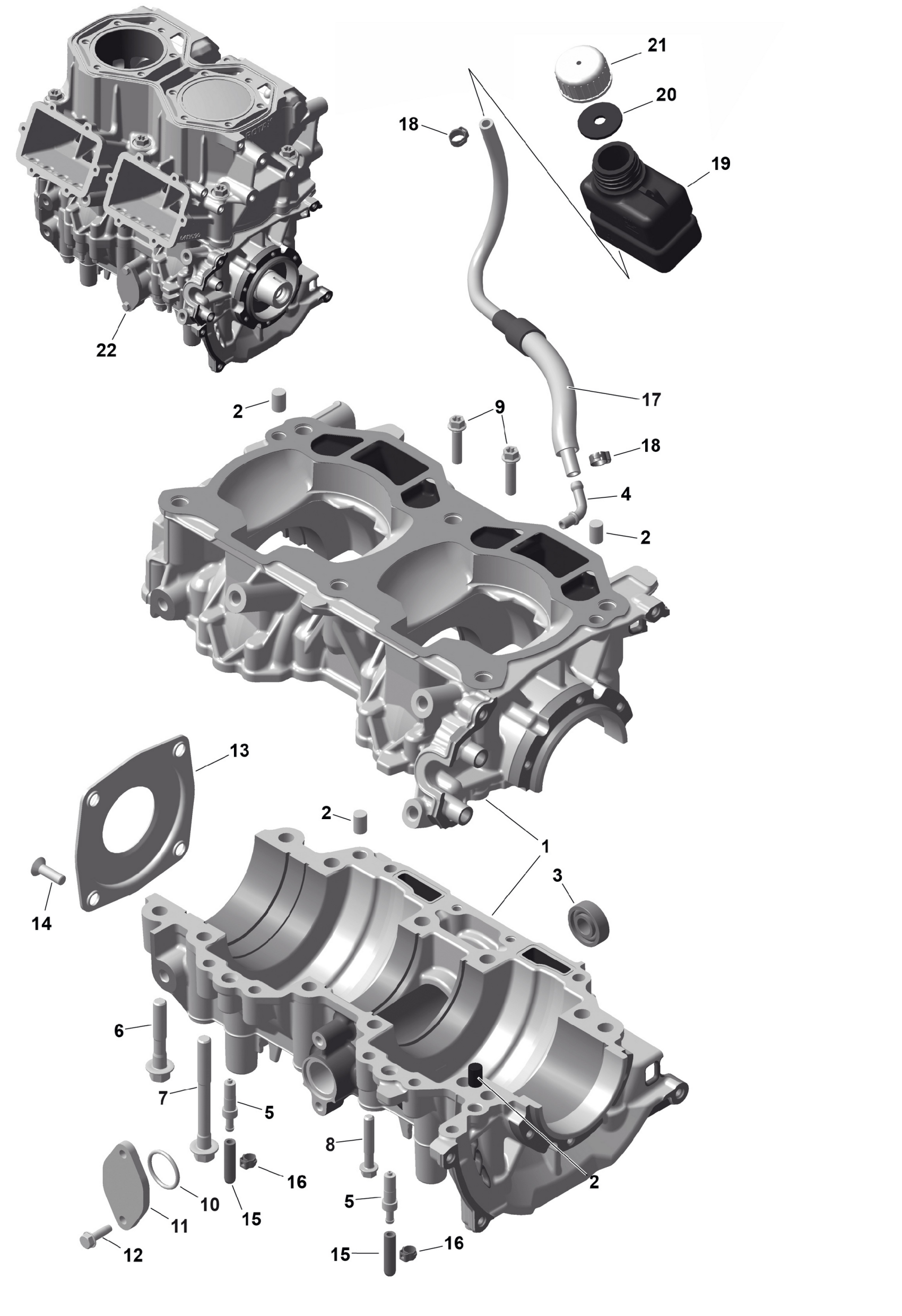

Ski-Doo Europe - MXZ - RACING - 600 RS - BMTB - Neo Yellow - 15X137X1.75R Track, 2026 ROTAX - Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes no. 1-5; 14-15

420686902

$1.00

2

Center Pin 8 X 12

420632010

$4.01

3

Ball Bearing

420232100

$20.99

4

Impulse Fitting

420924529

$8.57

5

Check Valve

420956071

$24.99

6

Screw M6 X 20

420941436

$3.17

7

Closure Cap

420960771

$4.59

8

Collar Hex Screw M8 X 45

420640433

$2.00

9

Collar Hex Screw M8 X 75

420640833

$2.00

10

Torx Flange Screw M6 X 35

420440274

$1.01

11

Torx Flange Screw M6 X 25

420440235

$2.11

12

O-Ring

420430373

$3.17

13

Cover Plate

420810827

$14.83

14

Taptite Screw M5 X 16

420941926

$0.47

15

Oil Seal Cover

420812422

$14.83

16

Clamp 5.8-7.0MM

420853138

$2.11

17

Oil Line / Protective Hose Ass'y

420201592

$29.99

18

Clamp

420853653

$7.41

19

Oil Tank Ass'y | Includes no. 19-21

420956245

$73.99

20

Rubber Gasket

420850350

$5.39

21

Oil Tank Cap

420956250

$15.28

22

Short Block 598 RS

420059804

$2.00
