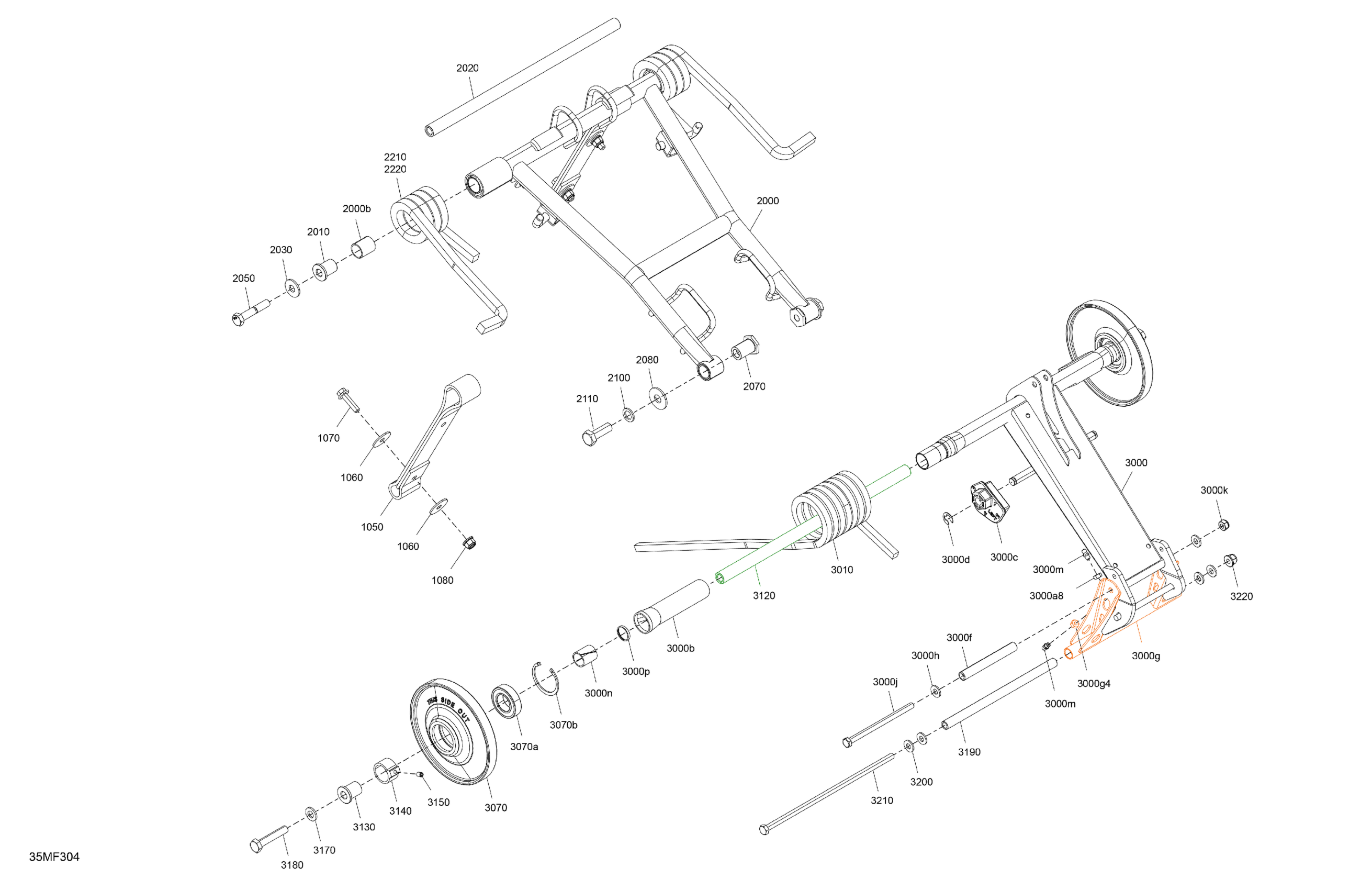

Ski-Doo Europe - MXZ - NEO + - 600 EFI - 55 - BPTB - Deep Black - 15X120X1.25RS Track, 2026 05- Suspension - Rear - Upper Section Diagram

Description

Price

1050

Strap Stopper

503196914

$28.49

1060

Flat Washer 8 mm

250200128

$4.44

1070

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

1080

Elastic Flange Nut M8

233281466

$1.01

2000

Front Suspension Arm Ass'y | Includes 2000 to 2000b

503195948

$402.49

2000b

Extended Bushing

503191556

$7.83

2010

Bushing

503191262

$15.79

2020

Upper Shaft

503191215

$38.99

2030

Washer

503191926

$1.58

2050

Hex. Threadlock Screw M10 X 55

250001365

$8.11

2070

Lower Axle

503193716

$17.23

2080

Flat Washer, 12 mm

250200113

$4.44

2100

Washer

503192491

$4.54

2110

Hex. Cap Screw M12 X 35

250000537

$3.17

2210

LH Front Torsion Spring

503196895

$104.99

2220

RH Front Torsion Spring

503196896

$104.99

3000

Rear Suspension Arm Ass'y | Includes 3000 to 3000p

503195595

$185.49

3000a8

Hexagonal Nut M6

232061404

$0.34

3000b

Bushing

572080700

$17.39

3000c

LH Cam Adjuster

503191565

$16.49

3000d

E-Circlip

293370013

$0.65

3000f

Upper Axle, Pivot Arm

503144300

$11.65

3000g

Shackle | Includes 3000g to 3000g4

503196689

$121.99

3000g4

Hexagonal Nut M6

232061404

$0.34

3000h

Washer

503192494

$3.17

3000j

Hex Screw M8 X 125

250001236

$0.85

3000k

Hex. Elastic Stop Nut M8

232581414

$0.56

3000m

Grease Fitting

408200700

$3.49

3000n

Extended Bushing

503191556

$7.83

3000p

Washer

503191651

$8.32

3010

Black, LH Spring Square

503192271

$80.49

3070

Wheel 155 | Includes 3070 to 3070b

503191150

$48.49

3070a

Ball Bearing

503193548

$17.99

3070b

Retaining Ring

415129780

$15.79

3120

Upper Shaft

503191215

$38.99

3130

Bushing

503191262

$15.79

3140

Retaining Ring

503194366

$39.99

3150

Socket Set Screw M6 X 8

206260844

$1.48

3170

Flat Washer

250200143

$3.17

3180

Hex. Threadlock Screw M10 X 55

250001365

$8.11

3190

Pivot Arm Axle

503196358

$19.99

3200

Washer

503192494

$3.17

3210

Bolt M8 X 248mm

503192440

$30.49

3220

Elastic Flange Nut M8

233281466

$1.01
