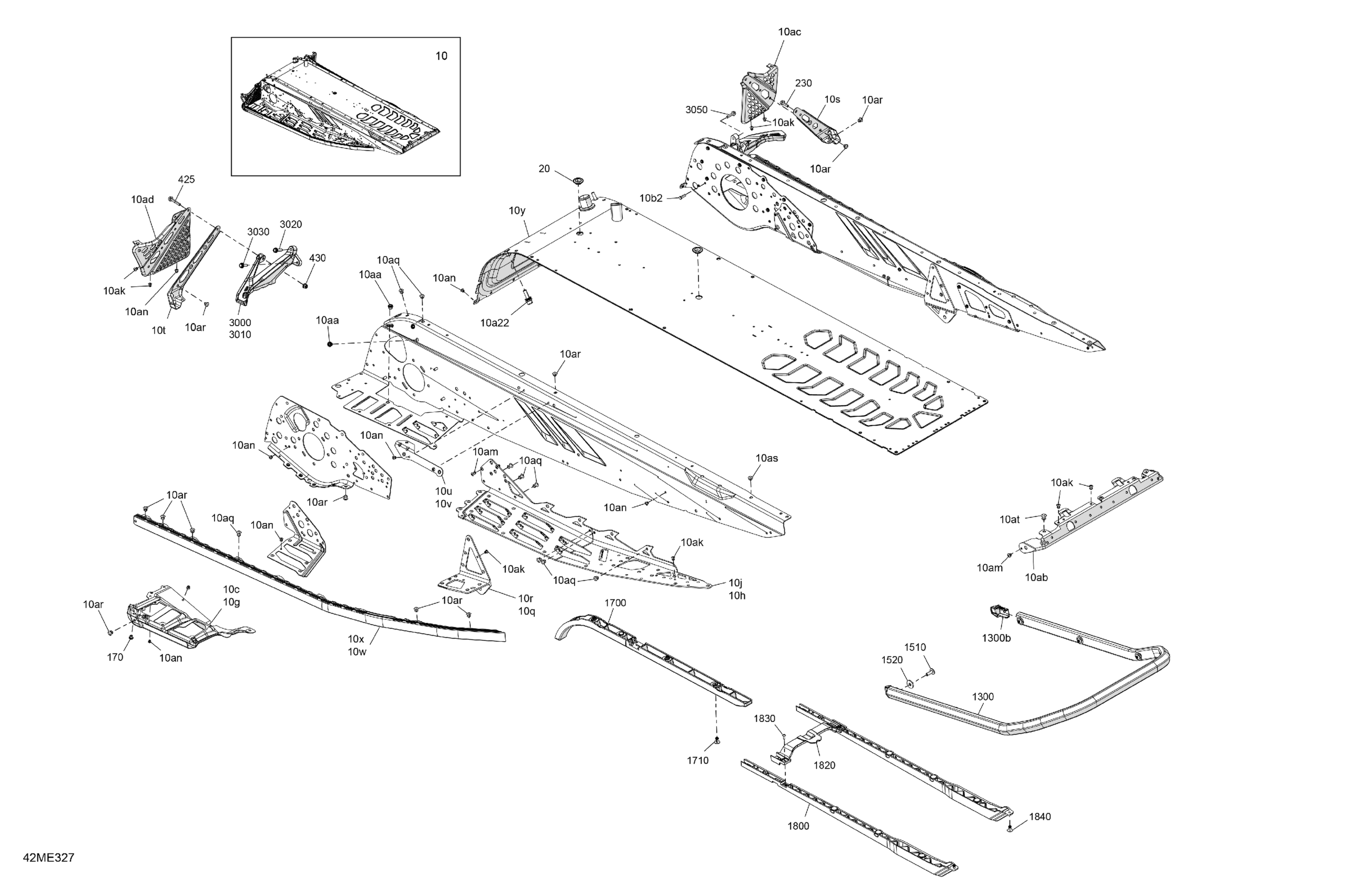

Ski-Doo Europe - MXZ - 850 E-TEC - X-RS - MVSH - Neo Yellow - 137X15X1.5IR Track - 2025 06- Frame - System - Rear Section Diagram

Description

Price

Neo Yellow, Chassis Tunnel Module 137 | Includes 10 to 10at

415130905

Unavailable

10b2

Clinch Stud M6 X 20

250300027

$2.09

10c

Deep Black, RH Footrest Reinforcement

518330738

$88.99

10g

Deep Black, LH Footrest Reinforcement

518331523

$88.99

10h

RH Footrest

518332921

$42.99

10j

LH Footrest

518332306

$42.99

10q

RH Rear Suspension Support This part replaces 518334389.

518334389

$85.99

10r

LH Rear Suspension Support

518334413

$45.99

10s

Stirrup Reinforcement

518334507

$21.99

10t

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10u

LH Under Chassis Reinforcement

518331744

$18.99

10v

RH Under Chassis Reinforcement

518331745

$19.99

10w

RH Roller

518329023

$194.99

10x

LH Exterior Footrest Reinforcement

518332307

$194.99

10y

Radiator Tunnel 137

518335125

$720.49

10a22

Protruding Stud M8 x 22

250300652

$4.44

10aa

Clinch Nut M6 Hexsert

605636003

$4.23

10ab

Rear Cap

518328990

$22.49

10ac

RH Footrest

518333006

$40.99

10ad

LH Footrest

518333858

$40.99

10ak

Avex Rivet

390909100

$0.30

10am

Rivet Hucklok

293150163

$2.99

10an

Avex Rivet

390909200

$0.30

10aq

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10ar

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10as

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10at

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Black, Plug

293730052

$9.19

170

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 x 35

207663546

$1.00

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1300

Rear Bumper | Includes 1300 to 1300b

518328746

$116.99

1300b

Cap

520001612

$10.99

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

1700

Front Protector

518329982

$18.49

1710

Black, Ornit Rivet 3/16 X ,675

293150308

$1.26

1800

Rear Protector

518329979

$9.23

1820

Central Protective Structure

518333936

$3.69

1830

Torx Truss PT K40 x 12

250001131

$2.11

1840

Black, Ornit Rivet 3/16 X ,675

293150308

$1.26

3000

LH Front Stirup

518334924

$24.99

3010

Toe Hold

518329134

$18.99

3020

Hex. Flange Screw M6 X 25

250000793

$2.11

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

3050

Hex Screw Forming M6 x 25

250001124

$2.40
