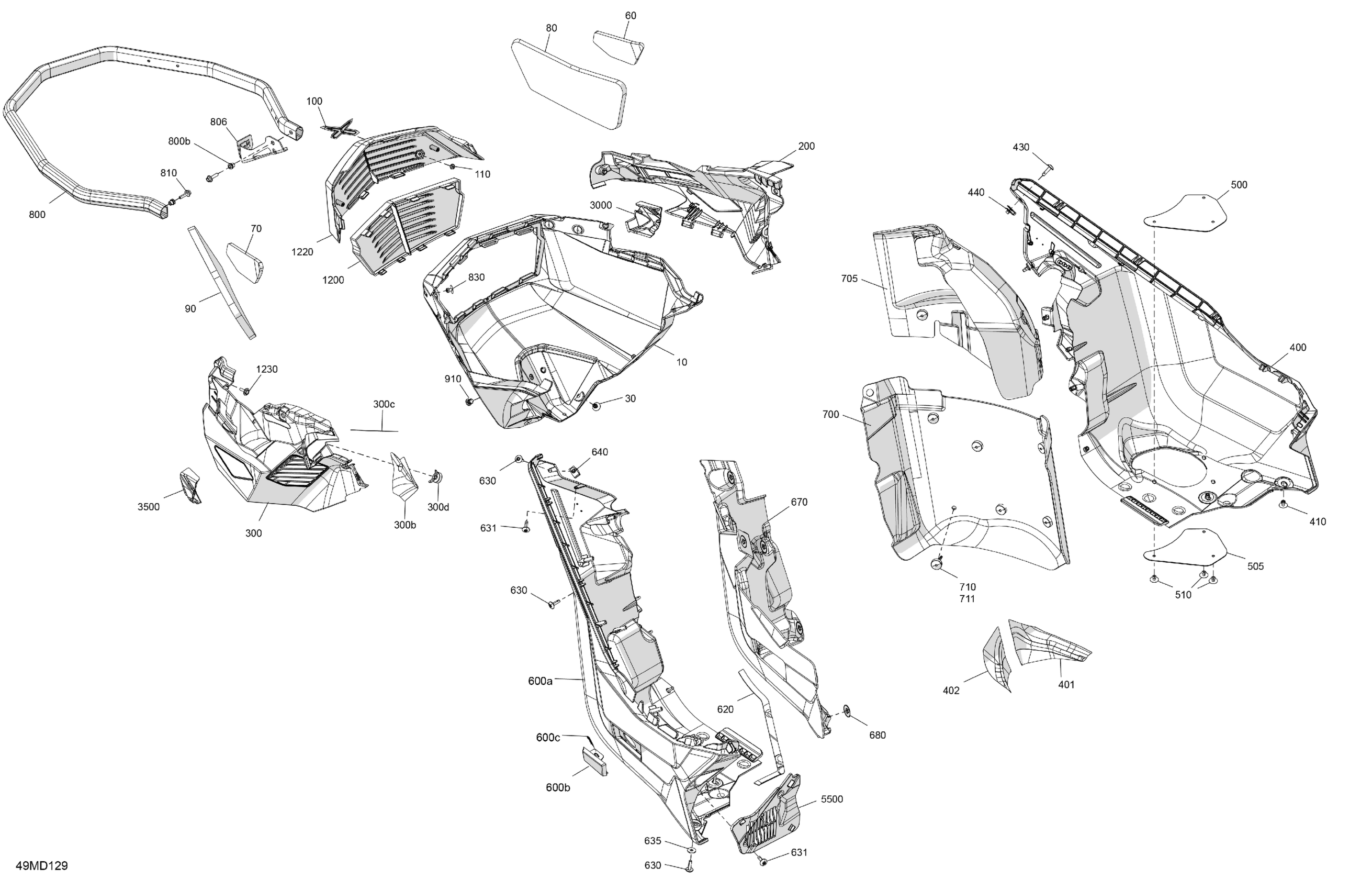

Ski-Doo Europe - MXZ 850 E-TEC Turbo R - X-RS with Competition package - UCRD - Neo Yellow - 137X15X1.25RSII2P Track, 2024 Body - Bottom Pan Diagram

#

Description
Price

10

Neo Yellow, Front Bottom Pan

502008600

$176.84

30

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

60

RH Front Central Bottom Pan Foam

502008308

$7.31

70

LH Front Central Bottom Pan Foam

502008309

$11.55

80

Bonded Foam

502008355

$17.13

90

Bonded Foam

502008356

$6.57

100

Emblem X

502008454

$8.39

110

Push Nut

250100206

$0.96

200

Neo Yellow, RH Bottom Pan Cap Ass'y

502008475

$58.18

300

Neo Yellow, LH Bottom Pan Cap Ass'y | Includes 300 to 300d

502008592

$108.93

300b

LH Front Heat Shield

502008487

$4.40

300c

LH Front Heat Shield

502008575

$4.03

300d

Stopper

502008610

$1.88

400

Neo Yellow, RH Bottom Pan

502008559

$85.79

401

Heat Shield

502008692

$4.03

402

Heat Shield

502008693

$4.03

410

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

430

Torx Truss M5 X 20

250000586

$4.15

440

Panel Nut M5 X 0.8

250000958

$4.00

500

Plate

502008690

$6.07

505

Plate

502008690

$6.07

510

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

600a

Neo Yellow, LH Bottom Pan

502008561

$85.79

600b

Neo Yellow, Bottom Pan Door

502008562

$46.99

600c

Hairpin Cotter

269800431

$0.97

620

Gasket, Neoprene 2000Mm Long

219704476

$14.51

630

Screw Torx M5 X 20

250001232

$1.31

631

Torx Truss M5 X 20

250000586

$4.15

635

Washer M5

250200025

$0.70

640

Panel Nut M5 X 0.8

250000958

$4.00

670

LH Lower Acoustic Panel

502008240

$41.01

680

Push Nut

508000853

$1.87

700

Acoustic Panel

502008754

$41.01

705

Acoustic Panel

502008241

$41.01

710

Stopper

502008610

$1.88

711

Stopper

502008610

$1.88

800

Deep Black, Front Bumper | Includes 800 to 800b

502008381

$110.42

800b

Insert M5 X 0.8

293450268

$1.90

806

Horn Bracket

502008424

$17.13

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.73

830

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

910

Panel Fastener

518321954

$5.85

1200

Lower Prefilter Grille

502008245

$26.84

1220

Upper Grille Prefilter

502008736

$26.84

1230

Screw M4 X 16

250000725

$3.30

3000

Neo Yellow, LH Front Cap

502008499

$1.24

3500

Neo Yellow, RH Front Cap

502008501

$1.36

5500

LH Rear Bottom Pan Grille

502008707

$12.33
