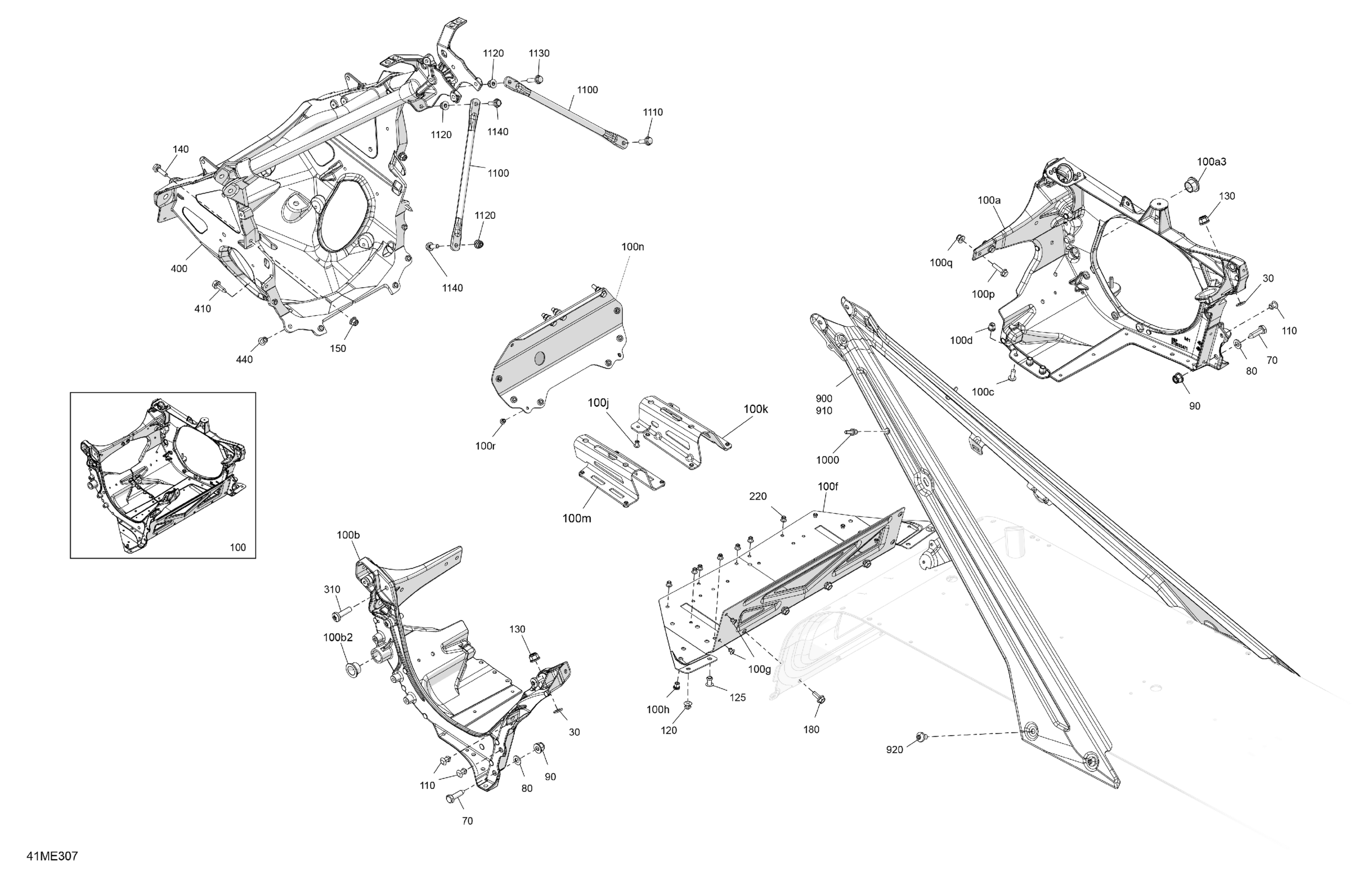

Ski-Doo Europe - MXZ - 600R E -TEC - X-RS with Competition package - UCSF - Neo Yellow - 137X15X1.6C Track - 2025 06- Frame - System - Front Section Diagram

#

Description
Price

30

Conical Spring Washer M8

250200146

$1.01

70

Hex Screw M8 X 30

250000942

$1.15

80

Flat Washer 8 mm

234081410

$0.83

90

Hex. Flange Elastic Nut M8

233281414

$1.47

100

Engine Chassis Module Ass'y | Includes 100 to 100r

518335291

$429.99

100a

RH Side Member Ass'y | Includes 100a to 100a3

518335196

$239.99

100a3

Leg Bushing

505072690

$12.49

100b

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

100b2

Leg Bushing

505072690

$12.49

100c

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

100d

Collar Huck Magna-Grip 6.4

293150149

$0.48

100f

Bottom Plate

518332716

$36.99

100g

Avex Rivet

390909100

$0.30

100h

Insert M5 X 0.8

293450268

$2.09

100j

Rivet Hucklok

293150163

$2.99

100k

RH Cross Link

518329814

Unavailable

100m

LH Central Cross Member Support

518333927

$33.99

100n

Front Member

518330100

$60.99

100p

Hex. Flange Screw M6 X 20

207662046

$2.11

100q

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

100r

Avex Rivet

390909100

$0.30

110

Rivet Ornit 6,5 X 16.5

293150267

$2.40

120

Ornit Rivet 6,5 X 14.5

293150266

$2.40

125

Rivet Ornit 6,5 X 18.5

293150268

$2.40

130

Hex. Flange Elastic Nut M8

233281414

$1.47

140

Hex. Flange Screw M6 X 20

207662046

$2.11

150

Elastic Flange Nut M6 X 1.0

233261416

$2.11

180

Hex. Flange Screw M6 X 16

207661646

$1.36

220

Avex Rivet

390909100

$0.30

310

Screw-Pan HD.Torx M8X30

250001060

$0.82

400

Chassis Suspension Module

518334459

$709.99

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

440

Hex. Flange Screw M6 X 16

207661646

$1.36

900

Deep Black, LH Rear Diagonal Cross Member Ass'y

518333956

Unavailable

910

Deep Black, RH Rear Diagonal Cross Member

518336930

$119.99

920

Pan Head Torx Screw M8 X 12

250000887

$1.90

1000

Protruding Stud M5 x 12

250300651

$2.09

1100

Upper Colomn Support

518329974

$22.49

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1130

Hex. Flange Screw M6 X 25

207662556

$4.44

1140

Hex. Flange Screw M6 X 20

207662046

$2.11
