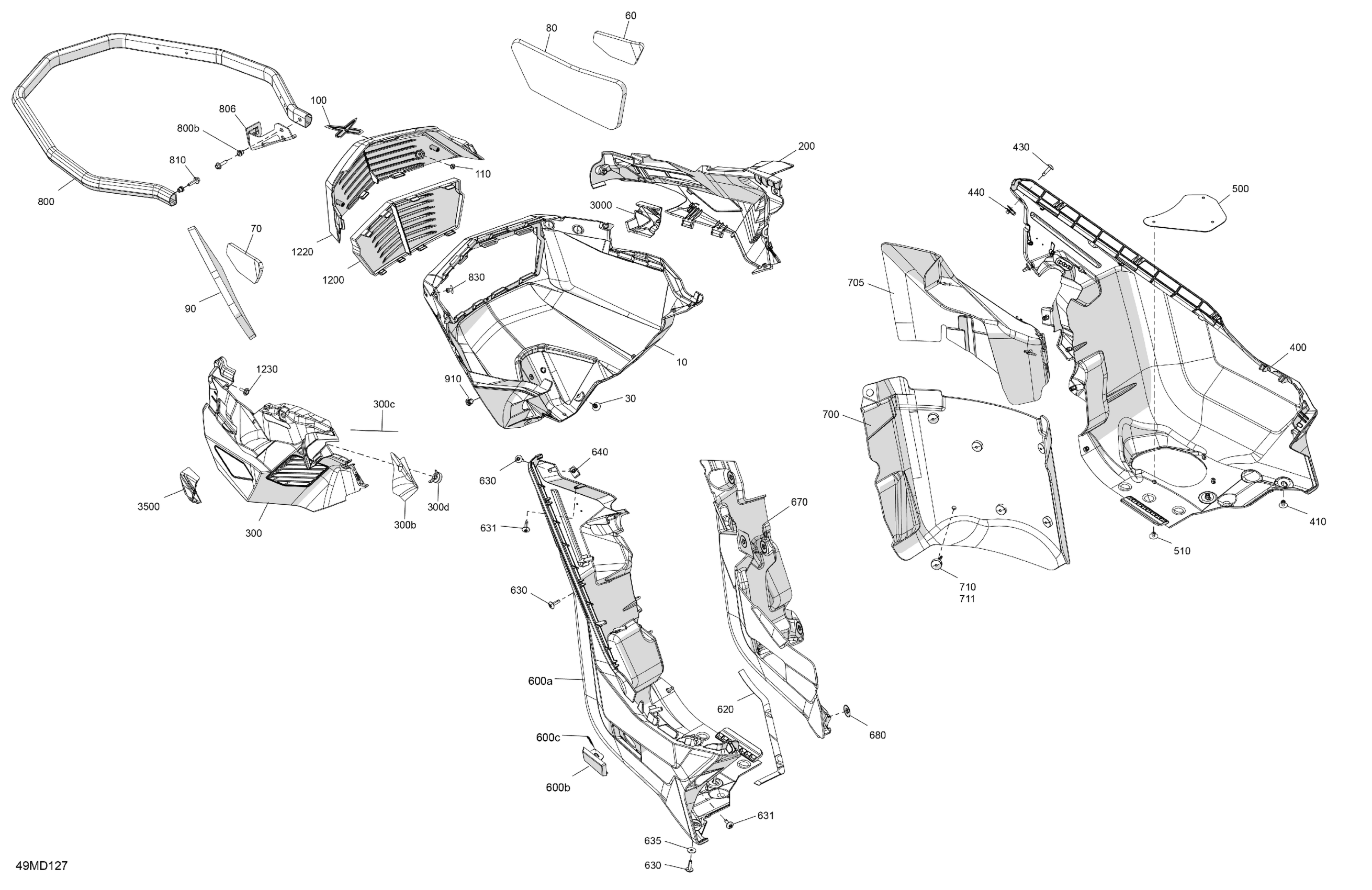

Ski-Doo Europe - MXZ 600R E-TEC - X-RS with Competition package - UCRB - Neo Yellow - 137X15X1.6C Track, 2024 Body - Bottom Pan Diagram

#

Description
Price

10

Neo Yellow, Front Bottom Pan

502008600

$176.84

30

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

60

RH Front Central Bottom Pan Foam

502008308

$7.31

70

LH Front Central Bottom Pan Foam

502008309

$11.55

80

Bonded Foam

502008355

$17.13

90

Bonded Foam

502008356

$6.57

100

Emblem X

502008454

$8.39

110

Push Nut

250100206

$0.83

200

Neo Yellow, RH Bottom Pan Cap Ass'y

502008475

$58.18

300

Neo Yellow, LH Bottom Pan Cap Ass'y | Includes 300 to 300d

502008592

$108.93

300b

LH Front Heat Shield

502008487

$4.40

300c

LH Front Heat Shield

502008575

$4.03

300d

Stopper

502008610

$1.88

400

Neo Yellow, RH Bottom Pan

502008559

$85.79

410

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

430

Torx Truss M5 X 20

250000586

$3.61

440

Panel Nut M5 X 0.8

250000958

$3.48

500

Plate

502008690

$6.07

510

Pop Rivet 3/16"

293150103

$0.52

600a

Neo Yellow, LH Bottom Pan

502008561

$85.79

600b

Neo Yellow, Bottom Pan Door

502008562

$46.99

600c

Hairpin Cotter

269800431

$0.97

620

Gasket, Neoprene 2000Mm Long

219704476

$12.64

630

Screw Torx M5 X 20

250001232

$1.14

631

Torx Truss M5 X 20

250000586

$3.61

635

Washer M5

250200025

$0.61

640

Panel Nut M5 X 0.8

250000958

$3.48

670

LH Lower Acoustic Panel

502008240

$41.01

680

Push Nut

508000853

$1.87

700

Acoustic Panel

502008754

$41.01

705

Acoustic Panel

502008254

$41.01

710

Stopper

502008610

$1.88

711

Stopper

502008610

$1.88

800

Deep Black, Front Bumper | Includes 800 to 800b

502008381

$110.42

800b

Insert M5 X 0.8

293450268

$1.90

806

Horn Bracket

502008424

$17.13

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.12

830

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

910

Panel Fastener

518321954

$5.85

1200

Lower Prefilter Grille

502008245

$26.84

1220

Upper Grille Prefilter

502008736

$26.84

1230

Screw M4 X 16

250000725

$2.87

3000

Neo Yellow, LH Front Cap

502008499

$1.24

3500

Neo Yellow, RH Front Cap

502008501

$1.36
