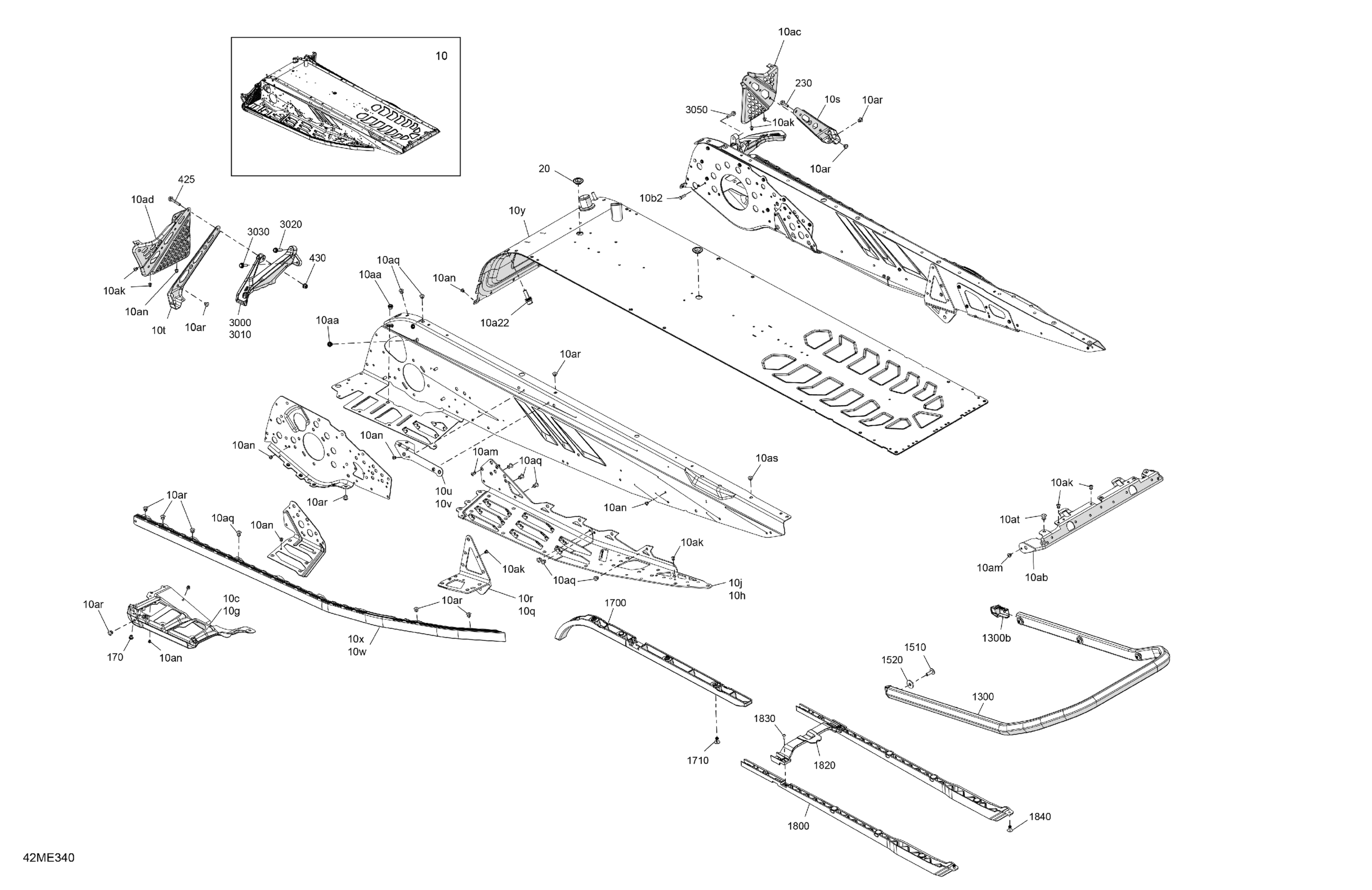

Ski-Doo Europe - MXZ - 600R E -TEC - X-RS - MZSR - Neo Yellow - 129X15X1.5IR Track - 2025 Frame - System - Rear Section Diagram

Description

Price

Neo Yellow, Chassis Tunnel Module 129 | Includes 10 to 10at

415130890

Unavailable

10b2

Clinch Stud M6 X 20

250300027

$1.87

10c

Deep Black, RH Footrest Reinforcement

518330738

$79.82

10g

Deep Black, LH Footrest Reinforcement

518331523

$79.82

10h

RH Footrest

518332921

$38.78

10j

LH Footrest

518332306

$38.78

10q

RH Rear Suspension Support

518334387

$93.25

10r

LH Rear Suspension Support

518334412

$93.25

10s

Stirrup Reinforcement

518334507

$17.88

10t

Deep Black, LH Chassis Reinforcement

518332924

$17.88

10u

LH Under Chassis Reinforcement

518331744

$15.64

10v

RH Under Chassis Reinforcement

518331745

$16.39

10w

RH Roller

518329023

$175.34

10x

LH Roller

518329024

$175.34

10y

Radiator Tunnel 129

518335123

$658.93

10a22

Protruding Stud M8 x 22

250300652

$4.15

10aa

Clinch Nut M6 Hexsert

605636003

$4.00

10ab

Rear Cap

518328990

$20.12

10ac

RH Footrest

518333006

$37.28

10ad

LH Footrest

518333858

$37.28

10ak

Avex Rivet

390909100

$0.28

10am

Rivet Hucklok

293150163

$2.73

10an

Avex Rivet

390909200

$0.28

10aq

Rivet Ornit 6,5 X 10.5

293150264

$1.88

10ar

Rivet Ornit 6,5 X 12.5

293150265

$1.88

10as

Ornit Rivet 6,5 X 14.5

293150266

$1.88

10at

Rivet Ornit 6,5 X 16.5

293150267

$1.88

Black, Plug

293730052

$6.18

170

Insert M5 - 0.8

293450267

$4.09

230

Hex. Flange Screw M6 X 20

207562056

$2.00

425

Hex. Flange Screw M6 x 35

207663546

$0.99

430

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1300

Rear Bumper | Includes 1300 to 1300b

518328745

$114.15

1300b

Cap

520001612

$8.36

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

1520

Flat Washer

224061201

$1.27

1700

Front Protector

518329982

$17.13

1710

Black, Ornit Rivet 3/16 X ,675

293150308

$1.19

1800

Rear Protector

518329979

$7.33

1820

Central Protective Structure

518333936

$3.30

1830

Torx Truss PT K40 x 12

250001131

$2.00

1840

Black, Ornit Rivet 3/16 X ,675

293150308

$1.19

3000

LH Front Stirup

518334924

$22.36

3010

Toe Hold

518329134

$15.64

3020

Hex. Flange Screw M6 X 25

250000793

$2.00

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

3050

Hex Screw Forming M6 x 25

250001124

$1.88
