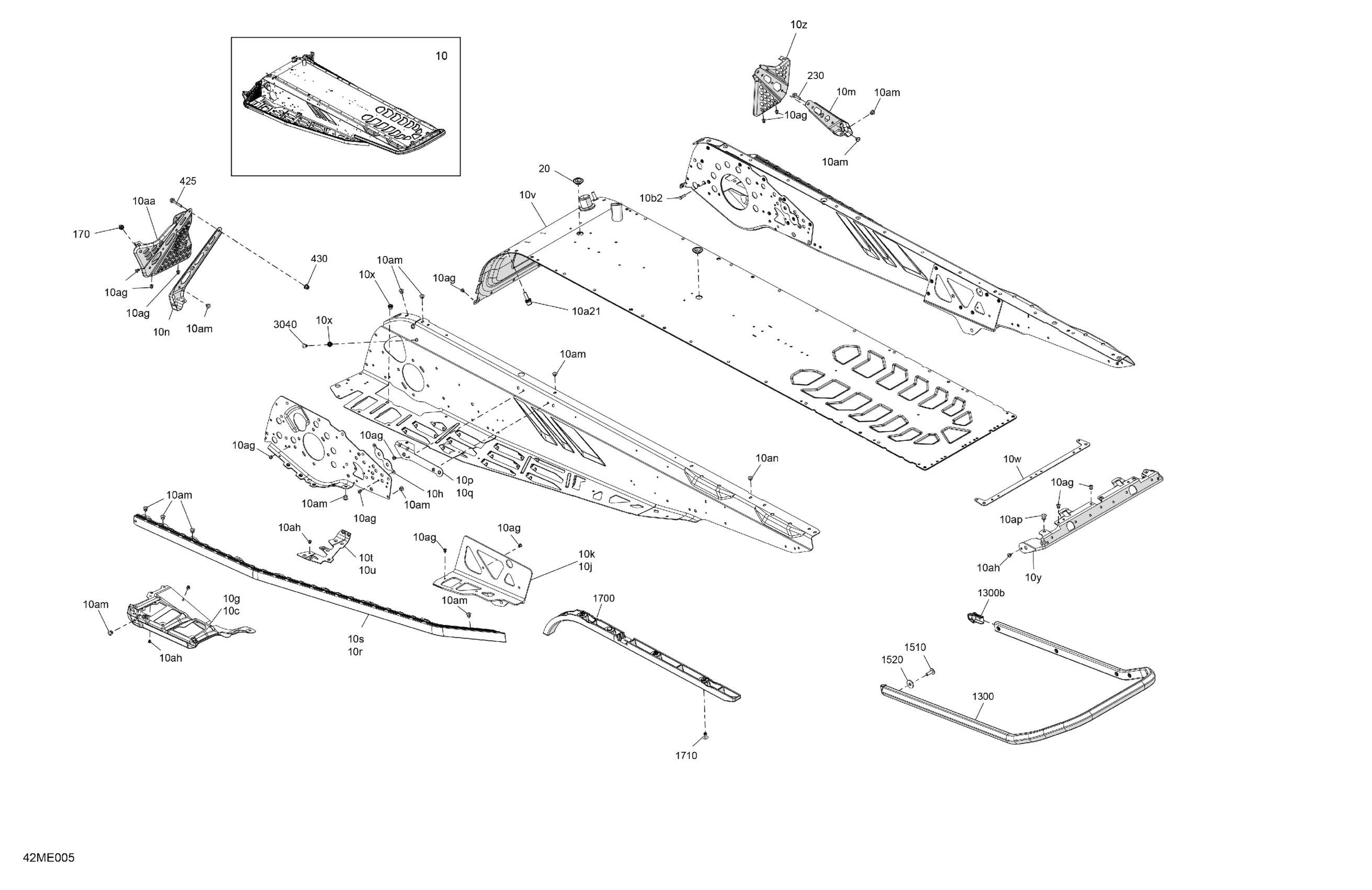

Ski-Doo Europe - MXZ - 600 EFI - 55 - NEO + - BPSB - Deep Black - 120X15X1.25RS Track - 2025 06- Frame - System - Rear Section Diagram

Description

Price

Deep Black, Chassis Tunnel Module 120

415130884

Unavailable

10b2

Clinch Stud M6 X 20

250300027

$2.09

10c

Deep Black, RH Footrest Reinforcement

518330738

$88.99

10g

Deep Black, LH Footrest Reinforcement

518331523

$88.99

10h

Front Suspension Arm Reinforcement

518327233

$4.69

10j

LH Rear Suspension Support

518334417

$94.99

10k

RH Rear Suspension Support

518334418

$94.99

10m

Stirrup Reinforcement

518334507

$21.99

10n

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10p

LH Under Chassis Reinforcement

518331744

$18.99

10q

RH Under Chassis Reinforcement

518331745

$19.99

10r

RH Roller

518328451

$194.99

10s

LH Roller

518328452

$194.99

10t

LH Footrest Reinforcement

518332296

$21.99

10u

RH Footrest Reinforcement

518332297

$21.99

10v

Radiator Tunnel 120

518335150

$819.99

10w

Spacer

518331532

$2.19

10a21

Protruding Stud M8 x 22

250300652

$4.44

10x

Clinch Nut M6 Hexsert

605636003

$4.23

10y

Rear Cap

518328990

$22.49

10z

RH Footrest

518333006

$40.99

10aa

LH Footrest

518333858

$40.99

10ag

Avex Rivet

390909100

$0.30

10ah

Avex Rivet

390909200

$0.30

10am

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10an

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10ap

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Black, Plug

293730052

$9.19

170

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1300

Rear Bumper 120 | Includes 1300 to 1300b

518331613

$111.99

1300b

Insert

293450275

$12.99

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

1700

Front Protector

518329982

$18.49

1710

Black, Ornit Rivet 3/16 X ,675

293150308

$1.26

3040

Dart

293730079

$2.09
