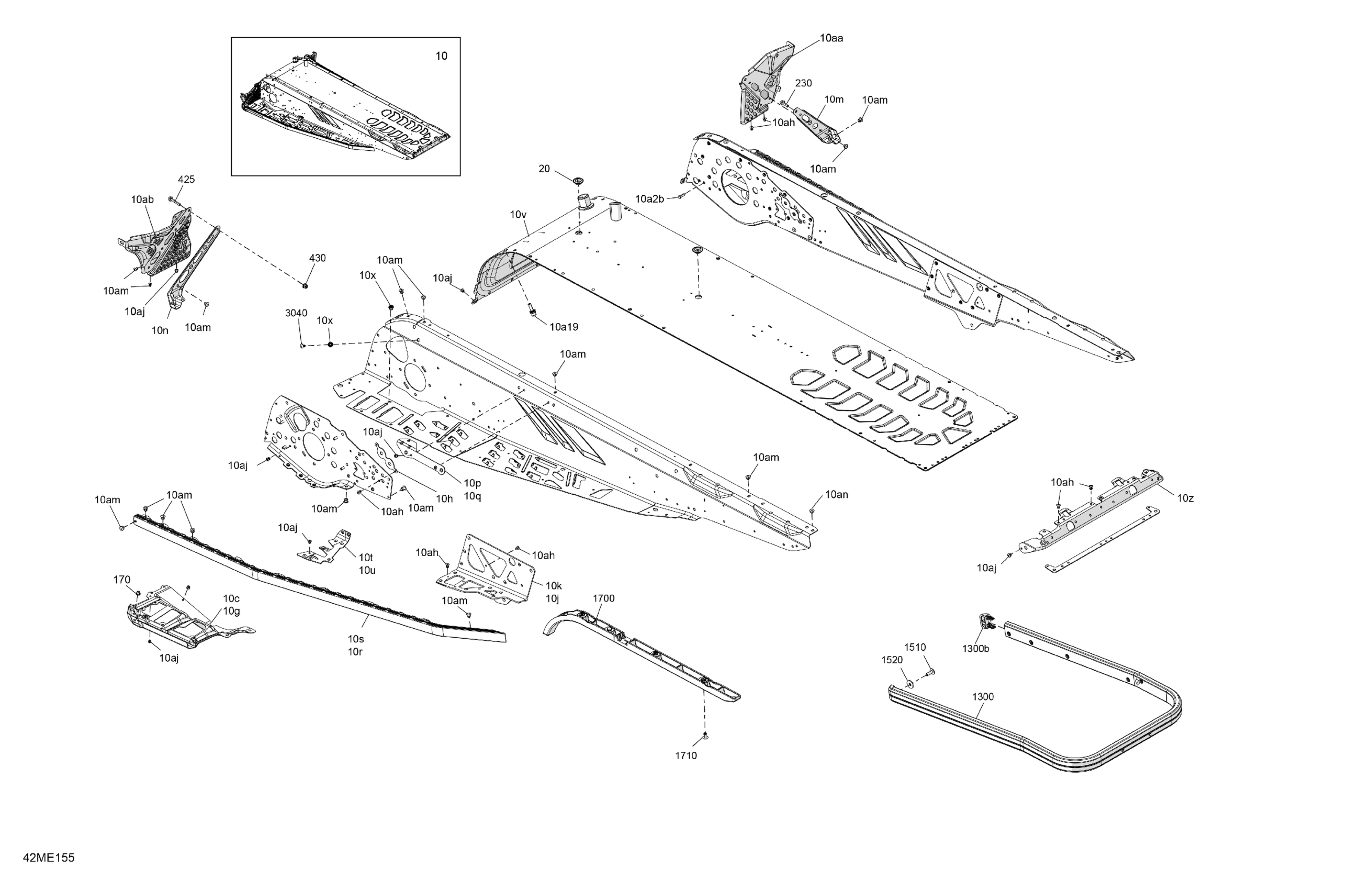

Ski-Doo Europe - GRAND TOURING - 600 ACE - SPORT - ETSB - Neo Yellow - 137X15X1.25ST3 Track - 2025 06- Frame - System - Rear Section Diagram

Description

Price

Full Moon, Chassis Tunnel Module 137 | Includes 10 to 10a33

415130883

Unavailable

10a2b

Clinch Stud M6 X 20

250300027

$2.09

10c

Deep Black, RH Footrest Reinforcement

518330738

$88.99

10g

Deep Black, LH Footrest Reinforcement

518331523

$88.99

10h

Front Suspension Arm Reinforcement

518327233

$4.69

10j

RH Rear Suspension Support

518334403

$82.99

10k

LH Rear Suspension Support

518334402

$82.99

10m

Stirrup Reinforcement

518334507

$21.99

10n

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10p

LH Under Chassis Reinforcement

518331744

$18.99

10q

RH Under Chassis Reinforcement

518331745

$19.99

10r

RH Roller

518328451

$194.99

10s

LH Roller

518328452

$194.99

10t

LH Footrest Reinforcement

518332296

$21.99

10u

RH Footrest Reinforcement

518332297

$21.99

10v

Radiator Tunnel 137

518335125

$720.49

10a19

Protruding Stud M8 x 22

250300652

$4.44

10x

Clinch Nut M6 Hexsert

605636003

$4.23

10z

Rear Cap

518328990

$22.49

10aa

RH Footrest

518334509

$22.49

10ab

LH Foot Protector

518334305

$23.99

10ah

Avex Rivet

390909100

$0.30

10aj

Avex Rivet

390909200

$0.30

10am

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10an

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Black, Plug

293730052

$9.19

170

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1300

Black, 137 Hitch Bumper | Includes 1300 to 1300b

518330197

$116.99

1300b

Bumper Cap

520001629

$0.98

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

1700

Front Protector

518329982

$18.49

1710

Black, Ornit Rivet 3/16 X ,675

293150308

$1.26

3040

Dart

293730079

$2.09
