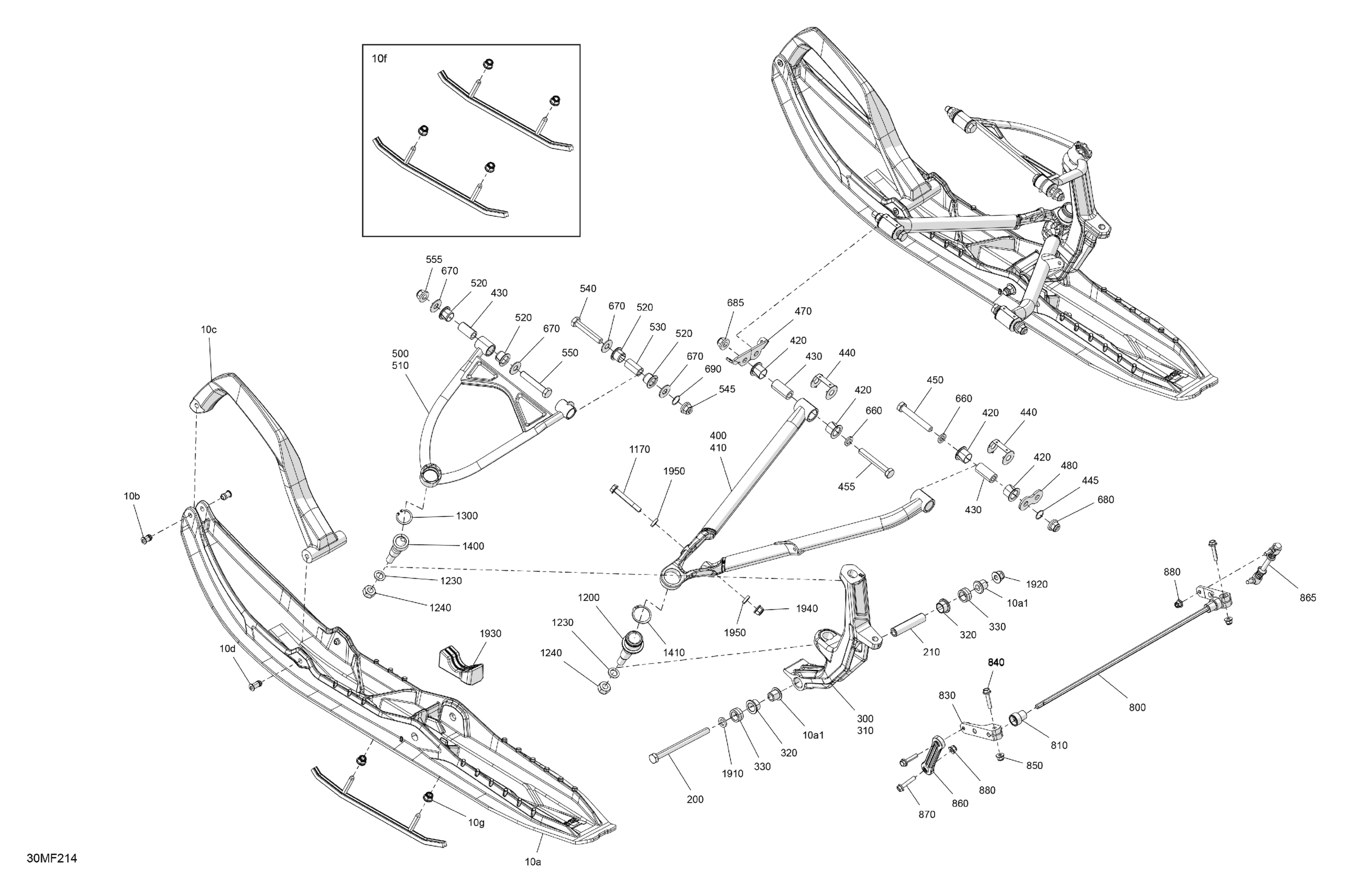

Ski-Doo Europe - FREERIDE - STD - 850 E-TEC - VBTA - Scandi Blue - 15X146X2.5P Track, 2026 Suspension - Front Diagram

Description

Price

10a

Scandi Blue, Ski Pilot Ds 4 | Includes 10a to 10a1

505076051

Unavailable

10a1

Ski Bushing

505071781

$14.90

10b

Rivet Ski Handle Short

505075902

$4.30

10c

Black, Handle

505072976

$34.30

10d

Rivet Ski Handle Long

505075906

$4.88

10f

Carbide Runner Square Kit This part replaces 860202518.

860203079

Unavailable

10g

Hex. Flange Elastic Nut M8

233281414

$1.31

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

210

Ski Axle

505073691

$12.21

300

Magma Red, LH Ski Leg -5

505076011

$211.91

310

Magma Red, RH Ski Leg -5

505076012

$211.91

320

Leg Bushing

505072690

$5.75

330

Spacer

505074949

$1.97

400

Black, LH Lower Suspension Arm

505076014

$184.30

410

Black, RH Inf Suspension Arm

505076015

$184.30

420

Bushing

505072208

$3.04

430

Bushing

505075324

$14.66

440

Wear Plate

505072634

$4.31

445

O-Ring

505072448

$2.18

450

Screw Hex. M10 X 70

250001024

$2.00

455

Screw Hex. M10 X 70

250001024

$2.00

470

Wear Plate

505073723

$5.67

480

Plate

505073844

$2.07

500

LH Upper Arm 36"

505074609

$138.03

510

RH Upper Arm 36"

505074610

$138.03

520

Bushing

505072250

$3.04

530

Bushing

505075322

$3.70

540

Screw Hex. M10 X 60

250001023

$2.00

545

Hex. Flange Elastic Nut M10

250100165

$0.81

550

Screw Hex. M10 X 60

250001023

$2.00

555

Hex. Flange Elastic Nut M10

250100165

$0.81

660

Washer

503189564

$0.70

670

Washer

505072392

$4.51

680

Hex. Flange Elastic Nut M10

250100165

$0.81

685

Hex. Flange Elastic Nut M10

250100165

$0.81

690

O-Ring

505072448

$2.18

800

Stabilizer Bar

505075485

$75.34

810

Bushing

505072786

$7.18

830

Stabilisator Lever

505073752

$14.90

840

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.15

850

Hex. Flange Elastic Nut M6

233261466

$1.91

860

Double Ball Joint Link

505073172

$52.96

865

Double Ball Joint Link

860200811

$93.99

870

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.15

880

Hex. Flange Elastic Nut M6

233261466

$1.91

1170

Hex. Flange Screw M8 X 58

250000824

$2.00

1200

Ball Joint

505074133

$49.97

1230

Washer

503192491

$4.25

1240

Hex Elastic Nut M12 X 1.25

232521464

$2.00

1300

Circlip

293370070

$6.81

1400

Upper Ball Joint

505072913

$67.88

1410

Snap Ring

293370098

$3.01

1910

Washer

503192496

$0.73

1920

Hex. Flange Elastic M10 x 1.5

233201464

$7.09

1930

Ski Stopper

505074831

$15.64

1940

Elastic Flange Nut M8

233281466

$0.96

1950

Spacer

505073892

$2.10
