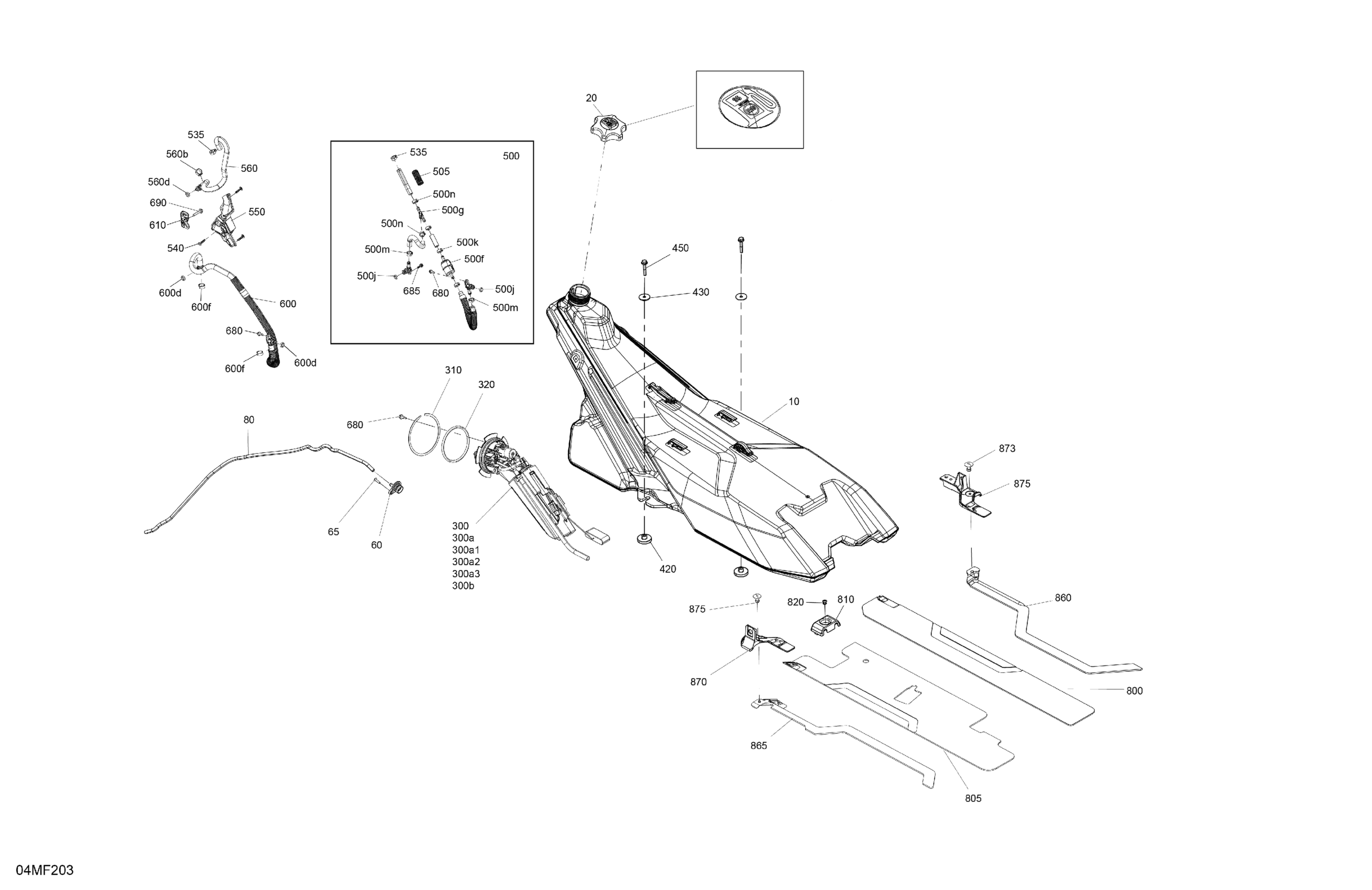

Ski-Doo Europe - FREERIDE - STD - 850 E-TEC - VBTA - Scandi Blue - 15X146X2.5P Track, 2026 02- Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank

513034245

$349.99

20

Fuel Tank Cap

513034170

$26.99

60

Check Valve

513033849

$36.99

65

Truss Torx Screw K40 X 16

250000918

$2.11

80

Polyurethane Hose 10000Mm Long

219704410

$56.99

300

Fuel Pump Ass'y | Includes 300 to 300b

861805526

$259.99

300a

Fuel Pump Ass'y | Includes 300 to 300b

861805526

$259.99

300a1

Canister

415130507

$85.99

300a2

Filter

415130508

$41.49

300a3

Fuel Level Sensor

415130726

$149.99

300b

Harness

515178468

$149.99

310

Circlip

513034097

$14.23

320

O-Ring

513033862

$23.99

420

Bushing

513034085

$7.62

430

Washer | Not Shown

503193995

$4.54

450

Hex. Flange Screw M6 X 35

250001255

$2.22

500

Hose Ass'y | Includes 500 to 500n

513034255

$121.99

500f

Fuel Filter

513034047

$21.99

500g

Y Fitting

513034150

$6.25

500j

O-Ring

513033668

$10.99

500k

Crimp Clamp, 15.3-706R

293650047

$3.29

500m

Crimp Clamp

293650053

$3.09

500n

Oetiker Clamp

293650125

$3.29

505

Tubing 16 Mm 1000Mm Long

219704408

$7.49

535

Crimp Clamp, 15.3-706R

293650047

$3.29

540

Torx Screw Truss Head K50X20 T20

250000760

$2.11

550

Hose Guide

513034204

$7.89

560

Fuel Tank Hose Ass'y | Includes 560 to 560d

513034251

$56.99

560b

Crimp Clamp

293650053

$3.09

560d

O-Ring

513033668

$10.99

600

Hose Ass'y | Includes 600 to 600f

513034250

$78.99

600d

O-Ring

513033668

$10.99

600f

Crimp Clamp

293650053

$3.09

610

Molded Hose Support

513034194

$5.79

680

Hex. Flange Screw M5 X 16

250000911

$0.85

685

Hex. Flange Screw M5 X 16

250000911

$0.85

690

Hex.Flange Screw M5 X 28 S.Grip

207552844

$5.39

800

Insulated Foam

513033913

$5.59

805

LH Foam

513034165

$16.99

810

Guide

513034155

$2.29

820

Pop Rivet 3/16 X ,425

293150293

$0.35

860

Foam

513033915

$19.49

865

Foam

513033916

$4.69

870

LH Trim

513034242

$8.49

873

RH Trim

513034243

$8.49

875

Black, Pop Rivet 3/16 X ,550

293150292

$1.05
