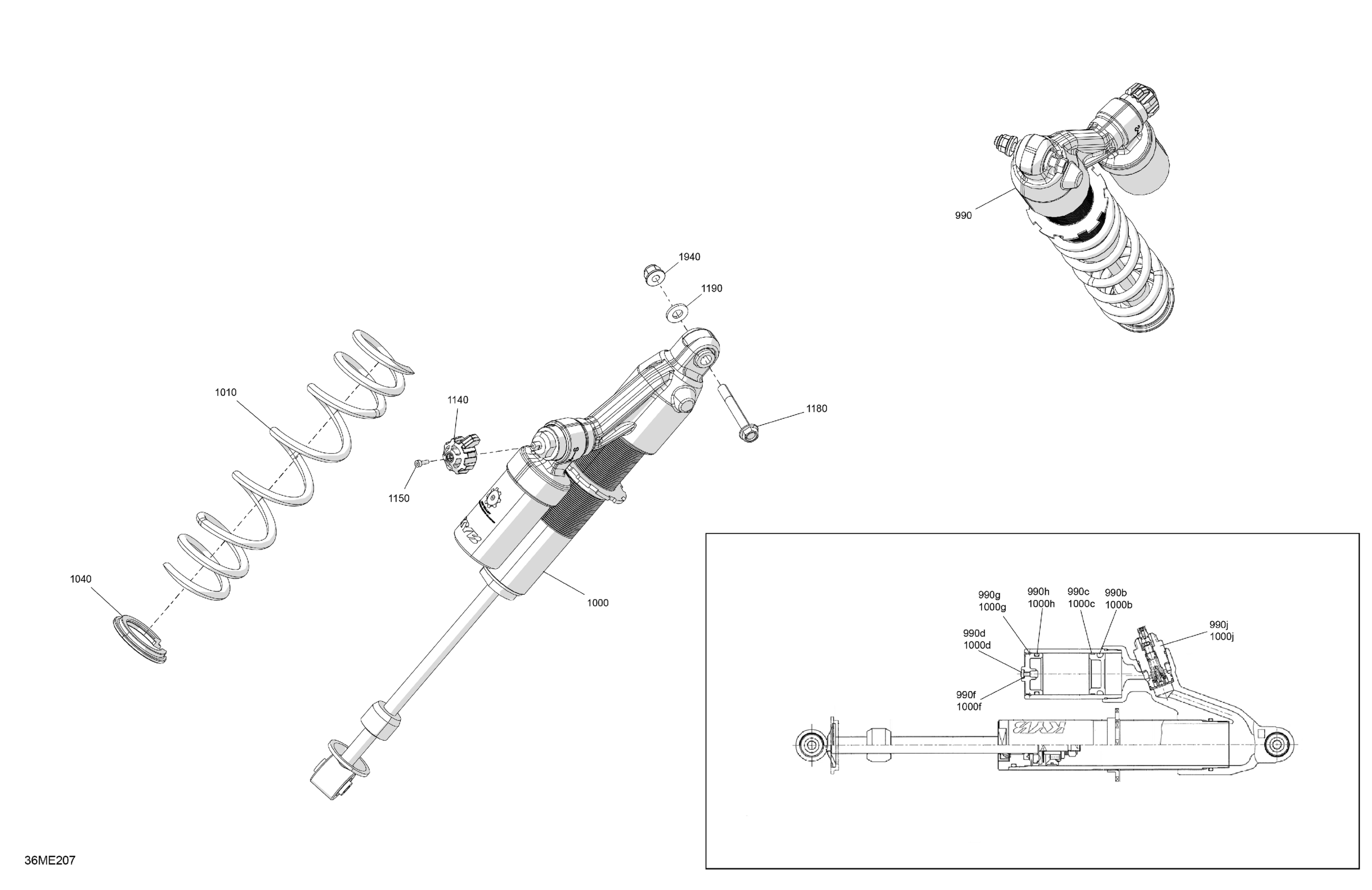

Ski-Doo Europe - FREERIDE - 850 E-TEC Turbo R - 146 - VKSB - Flare Yellow HG - 146X15X2.5P Track - 2025 Suspension - Front Shock Diagram

Description

Price

990

RH Front Shock Absorber KYB PRO 40-3C | Includes 990 to 990j

505075558

$812.99

990b

O-Ring

415093807

$33.55

990c

Piston Ring | Not Shown

415093806

$14.52

990d

Screw | Not Shown

505070399

$3.88

990f

O-Ring

505070400

$4.25

990g

Circlip - Call your local BRP dealership

715900076

$3.91

990h

O-Ring

415093804

$4.25

990j

Valve

503195958

$90.27

1000

LH Front Shock Absorber PRO 40-3C | Includes 1000 to 1000j

505075559

$812.99

1000b

O-Ring

415093807

$33.55

1000c

Piston Ring | Not Shown

415093806

$14.52

1000d

Screw | Not Shown

505070399

$3.88

1000f

O-Ring

505070400

$4.25

1000g

Circlip - Call your local BRP dealership

715900076

$3.91

1000h

O-Ring

415093804

$4.25

1000j

Valve

503195958

$90.27

1010

Deep Black, Spring

505072760

$49.97

1040

Spring Stopper

503194270

$16.39

1110

Washer

505073150

$0.96

1140

Adjustment Button

503196209

$2.49

1150

Allen Screw M3 X 0.5 X 10

250000644

$2.00

1180

Hex. Flange Screw M8 X 58

250000824

$2.00

1190

Washer

503192494

$3.01

1940

Elastic Flange Nut M8

233281466

$0.96
