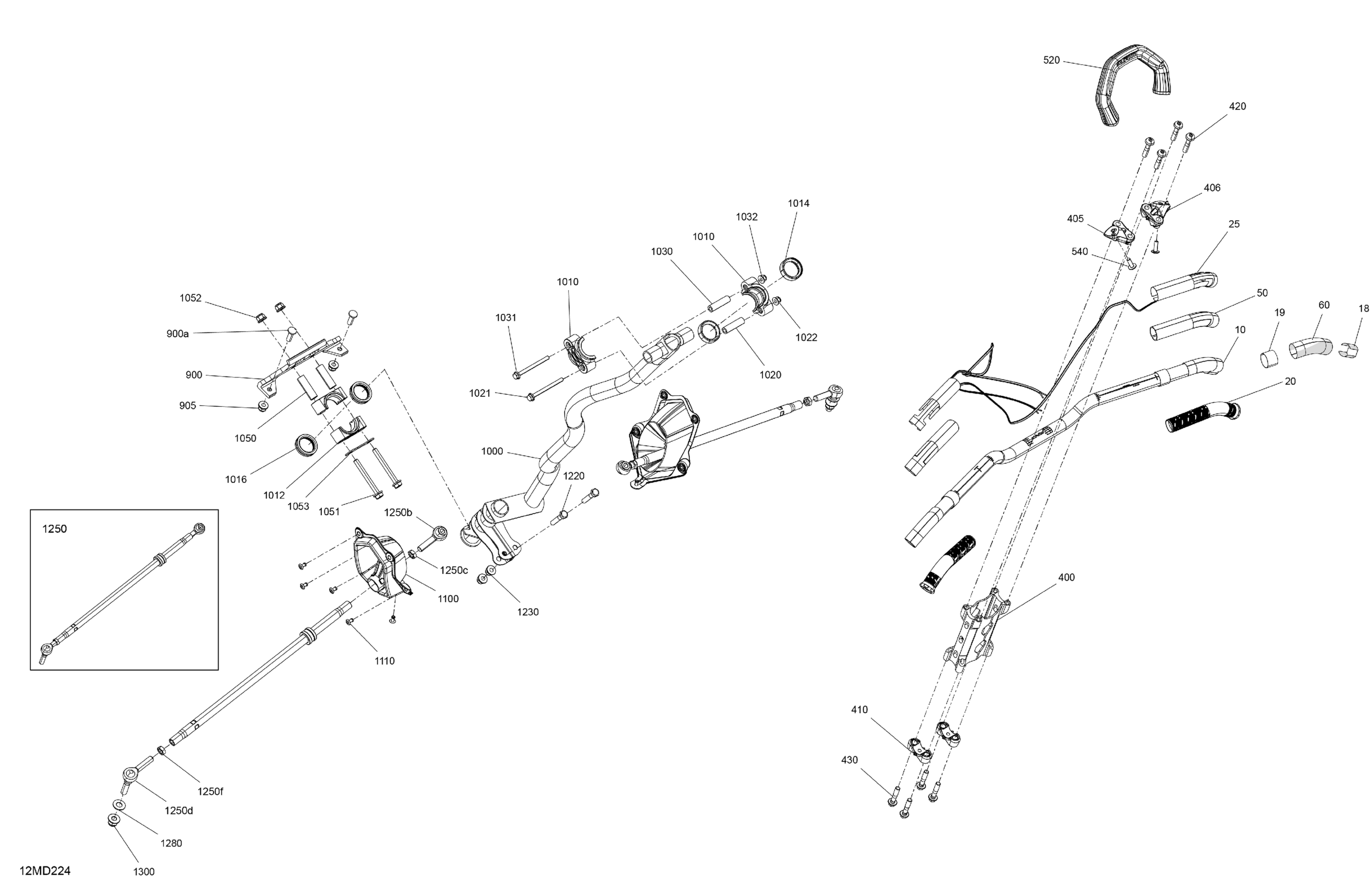

Ski-Doo Europe - FREERIDE 850 E-TEC Turbo R - 146 - VKRC - Neo Mint - 146X15X2.5P Track, 2024 03- Mechanic - Steering Diagram

#

Description
Price

10

Black, Handlebar This part replaces 506153137.

506153219

$94.49

18

Tape

293740005

Unavailable

19

Tape

293740005

Unavailable

20

Grip 148 mm

506153134

$23.49

25

Heated Film

506153135

$39.99

50

Thermal Insulation

506153177

$5.99

60

Tape

293740005

Unavailable

400

Riser Kit 120

860201427

$60.49

405

LH Handle Bar Support

506152867

$16.49

406

RH Handle Bar Support

506152928

$15.99

410

Steering Support

506152894

$14.49

420

Button Head Torx Screw M8 X 38

250000904

$2.11

430

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.11

520

Moulding Strap Ass'y

506153133

$50.99

540

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

900

Support Plate | Includes 900 to 900a

506152787

$37.99

900a

Clinch Stud

250300038

$4.29

905

Hex. Elastic Flange Nut M8

233281416

$1.48

1000

Tube Main

506153083

$264.99

1010

Upper Half Housing

506152219

$1.79

1012

Lower Half Housing

506153048

$6.92

1014

Upper Vibration Ring

506152292

$0.74

1016

Lower Vibration Ring

506152518

$4.79

1020

Housing Bushing

506153249

$12.99

1021

Hex. Flange Screw M6 x 75

250001114

$4.44

1022

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1030

Housing Bushing

506153249

$12.99

1031

Hex. Flange Screw M6 x 75

250001114

$4.44

1032

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1050

Housing Bushing

506153248

$12.99

1051

Hex. Flange Screw M8 X 70

207687044

$7.41

1052

Hex. Elastic Flange Nut M8

233281416

$1.48

1053

Stopper Plate

506152938

$12.99

1100

Cap

506153294

$26.99

1110

Pop Rivet 3/16"

293150008

$0.50

1220

Hex. Screw M8 X 40

207084044

$1.15

1230

Hex. Elastic Flange Nut M8

233281416

$1.48

1250

Tie Rod Ass'y | Includes 1250 to 1250f

506153140

$72.99

1250b

LH Threaded Ball Joint

506152344

$41.49

1250c

LH Threaded Hex. Jam Nut M10

250100016

$0.74

1250d

RH Threaded Ball Joint

506152684

$44.49

1250f

RH Threaded Hex. Jam Nut M10

732610010

$0.74

1280

Washer

506152582

$4.55

1300

Hex. Flange Elastic M10 x 1.5

233201464

$7.51
