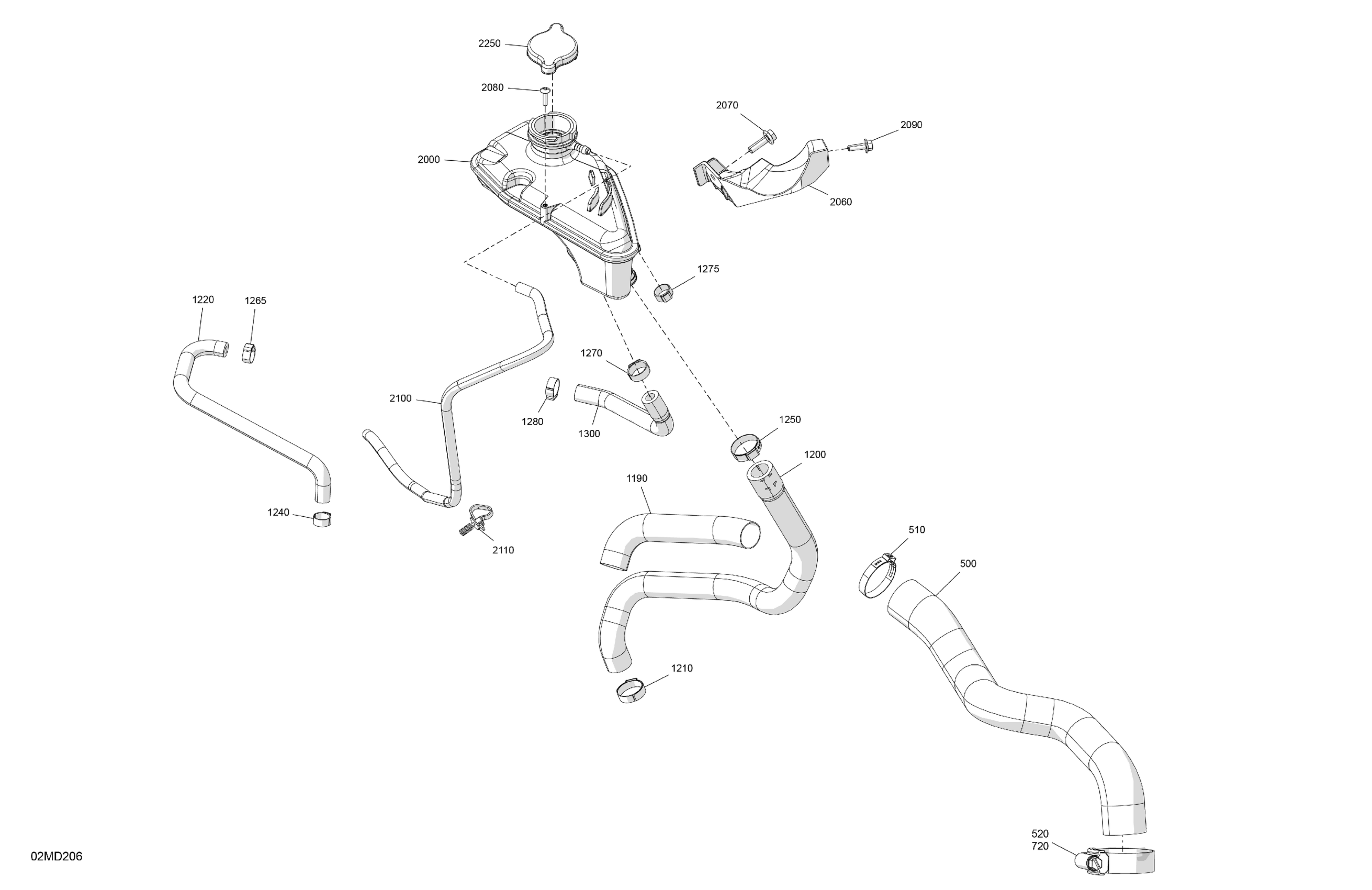

Ski-Doo Europe - FREERIDE 850 E-TEC Turbo R - 146 - VKRC - Neo Mint - 146X15X2.5P Track, 2024 02- Engine - Cooling Diagram

Description

Price

500

Thermostat Hose

509001414

$24.99

510

Oetiker Clamp

293650326

$8.59

520

Aba Gear Clamp, 26-38 MM

509000443

$12.72

720

Aba Gear Clamp, 26-38 MM

509000443

$12.72

1190

Protector Tube 32 Mm 1000Mm Long

219704421

$26.99

1200

Cooling Hose

509001430

$23.49

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

1220

Hose

509001408

$23.49

1240

Oetiker Clamp

293650046

$2.89

1250

Oetiker Clamp

509001041

$2.09

1265

Oetiker Clamp

293650125

$3.29

1270

Oetiker Clamp | Europe

293650030

$5.19

1275

Oetiker Clamp

293650046

$2.89

1280

Oetiker Clamp

293650140

$2.69

1300

Cooling Hose

509001409

$23.49

2000

Coolant Tank

509001314

$78.99

2060

Coolant Tank Support

509001318

$11.60

2070

Hex. Flange Screw M6 X 20

207662046

$2.11

2080

Torx-Truss Pt K40 X 16

250000759

$2.11

2090

Hex. Flange Screw M5 X 16

207651646

$2.11

2100

Hose 6 Mm 15000Mm Long

219704360

$132.49

2110

Anchorage Tie Wrap Christmas Tree

293750099

$2.19

2250

Radiator Pressure Cap

509000180

$20.49
