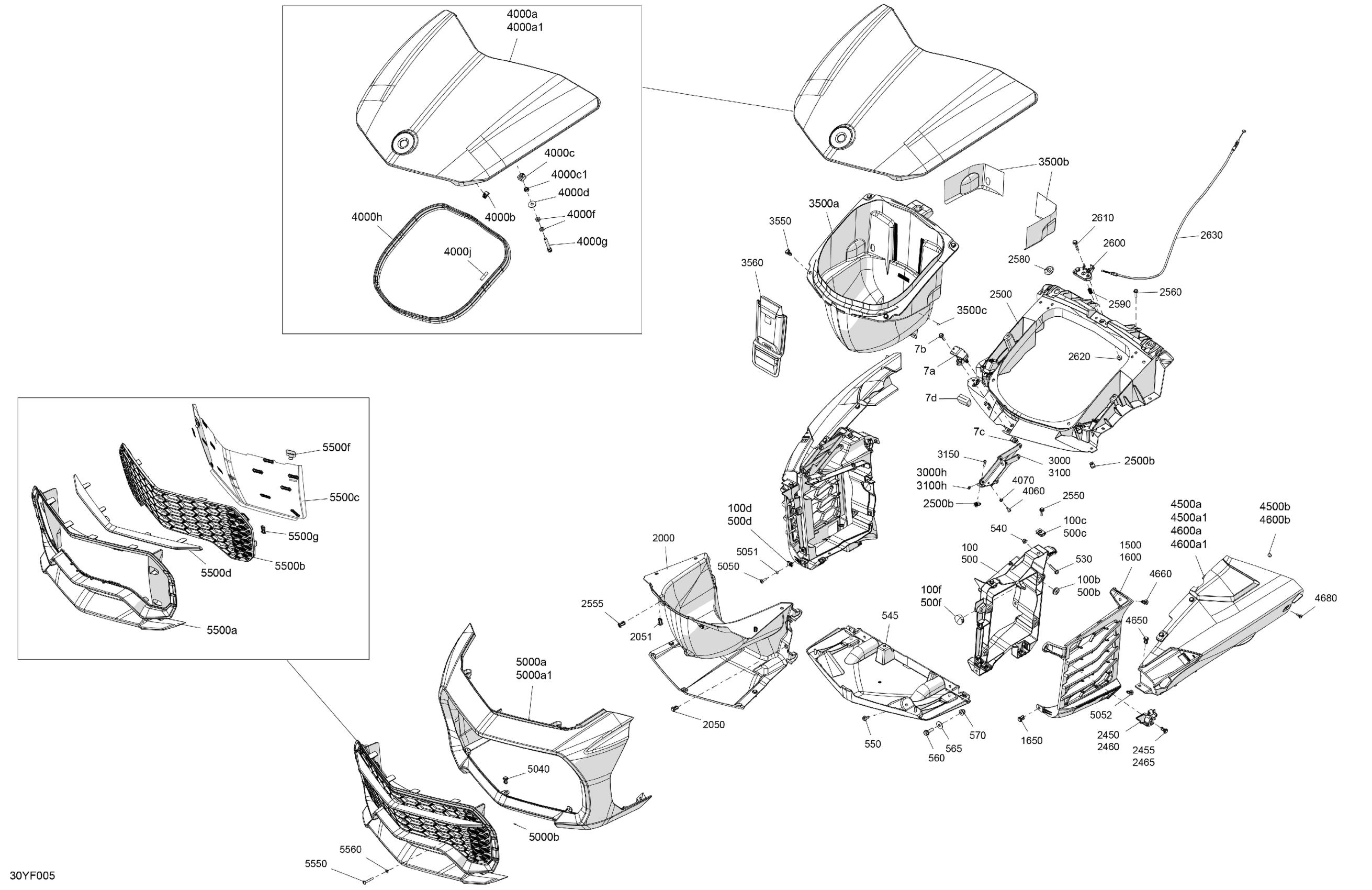

Can-Am Europe - F3 - SPORT - E6TJ - Monolith Black, 2026 Body - Front Storage Tray Diagram

Pressure And Temperature Sensor

707000995

$88.99

Hex. Flange Screw M6 X 25

207662554

$1.48

Panel Nut M6 X 1.0

250100198

$2.11

Foam Filter

707000586

$5.50

LH Breakaway Lateral Tower Leg | Includes 100 to 100f

708200437

$78.99

Overmolded Grommet

293720130

$4.69

Panel Nut M6 X 1.0

250100208

$1.46

Panel Nut M5 X 0.8

250000958

$4.23

Black, Nylon Cap

414916600

$4.69

RH Breakaway Lateral Tower Leg | Includes 500 to 500f

708200438

$78.99

Overmolded Grommet

293720130

$4.69

Panel Nut M6 X 1.0

250100208

$1.46

Panel Nut M5 X 0.8

250000958

$4.23

Black, Nylon Cap

414916600

$4.69

Hex. Flange Screw M6 X 30

207663054

$4.44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Front Skid Plate

708200405

$29.99

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Screw M8 X 25

207682544

$1.35

Flat Washer M8

234082430

$2.11

Hex. Flange Elastic Nut M8

233281434

$2.11

LH Side Vent

708200860

$34.99

RH Side Vent

708200859

$34.99

Tuflok Plastic Rivet

293150230

$1.47

Front Air Duct Module

708200362

$88.99

Tuflok Plastic Rivet

293150230

$1.47

Tuflok Plastic Rivet

293150230

$1.47

LH Front Union Link

708200493

$9.69

Tuflok Plastic Rivet

293150230

$1.47

RH Front Union Link

708200494

$9.69

Tuflok Plastic Rivet

293150230

$1.47

Sub-Frame Type Structure | Includes 2500 to 2500b

708200446

$78.99

Panel Nut M5 X 0.8

250000958

$4.23

Hex. Flange Screw M6 X 20

207662044

$2.00

Tuflok Plastic Rivet

293150230

$1.47

Hexagonal Head Screw

210262050

$2.11

Oval Washer

705000321

$5.61

Spring

705003911

$3.99

Latch

705018738

$28.99

Hex. Flange Screw M6 X 35

207663544

$0.90

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hood Cable

517305742

$42.99

LH Hood Hinge | Includes 3000 to 3000h

708200673

$91.99

Flat Washer M5

234051670

$2.11

RH Hood Hinge | Includes 3100 to 3100h

708200674

$91.99

Flat Washer M5

234051670

$2.11

Torx Truss Screw M5 X 16, T25

250000578

$2.11

Front Storage Bin

708200957

$69.99

Heat Shield Sheet

708200490

Unavailable

Stopper

705006633

$8.49

Tuflok Plastic Rivet

293150230

$1.47

Front Storage Box Net | Not Shown

708201433

$43.99

Monolith Black, Hood

708200544

$539.99

Bare, Hood

708200366

$244.99

Panel Nut M5 X 0.8

250000958

$4.23

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

Hex. Elastic Nut M8 Brass

232581200

$2.22

Flat Washer 8 mm

234082410

$1.47

Hex. Jam Nut M8

232180600

$0.67

Lug

705002223

$25.99

Neoprene Seal 3000Mm Long

219704371

$51.99

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

Torx Truss Screw M5 X 16, T25

250000578

$2.11

Flat Washer M5

234051670

$2.11

Monolith Black, LH Front Fairing | Includes 4500a to 4500a1

708201516

$214.99

Bare, LH Front Fairing

708201510

$54.99

Polyurethane Stopper

705006634

$4.76

Monolith Black, RH Front Fairing | Includes 4600a to 4600a1

708201517

$214.99

Fairing Fr Bare

708201511

$54.99

Polyurethane Stopper

705006634

$4.76

Tuflok Plastic Rivet

293150230

$1.47

Tuflok Plastic Rivet

293150230

$1.47

Torx Screw K50 X 16

250000720

$1.69

Monolith Black, Front Fascia

708200693

$329.99

Bare, Front Fascia

708200698

$149.99

Stopper

705006633

$8.49

Tuflok Plastic Rivet

293150230

$1.47

Torx Truss Screw M5 X 20

250000715

$2.11

Flat Washer M5

234051670

$2.11

Tuflok Plastic Rivet

293150230

$1.47

Molded Frame

705009339

$72.99

Front Grille

705009340

$55.99

Grille

708200937

$56.99

Can-Am Red, Grille Trim

708201416

$89.99

Mounting Plate

705010273

$9.53

Flat Clip

705004838

$7.73

Torx Screw Nylon

250000732

$2.11

Flat Washer M5

234051670

$2.11
