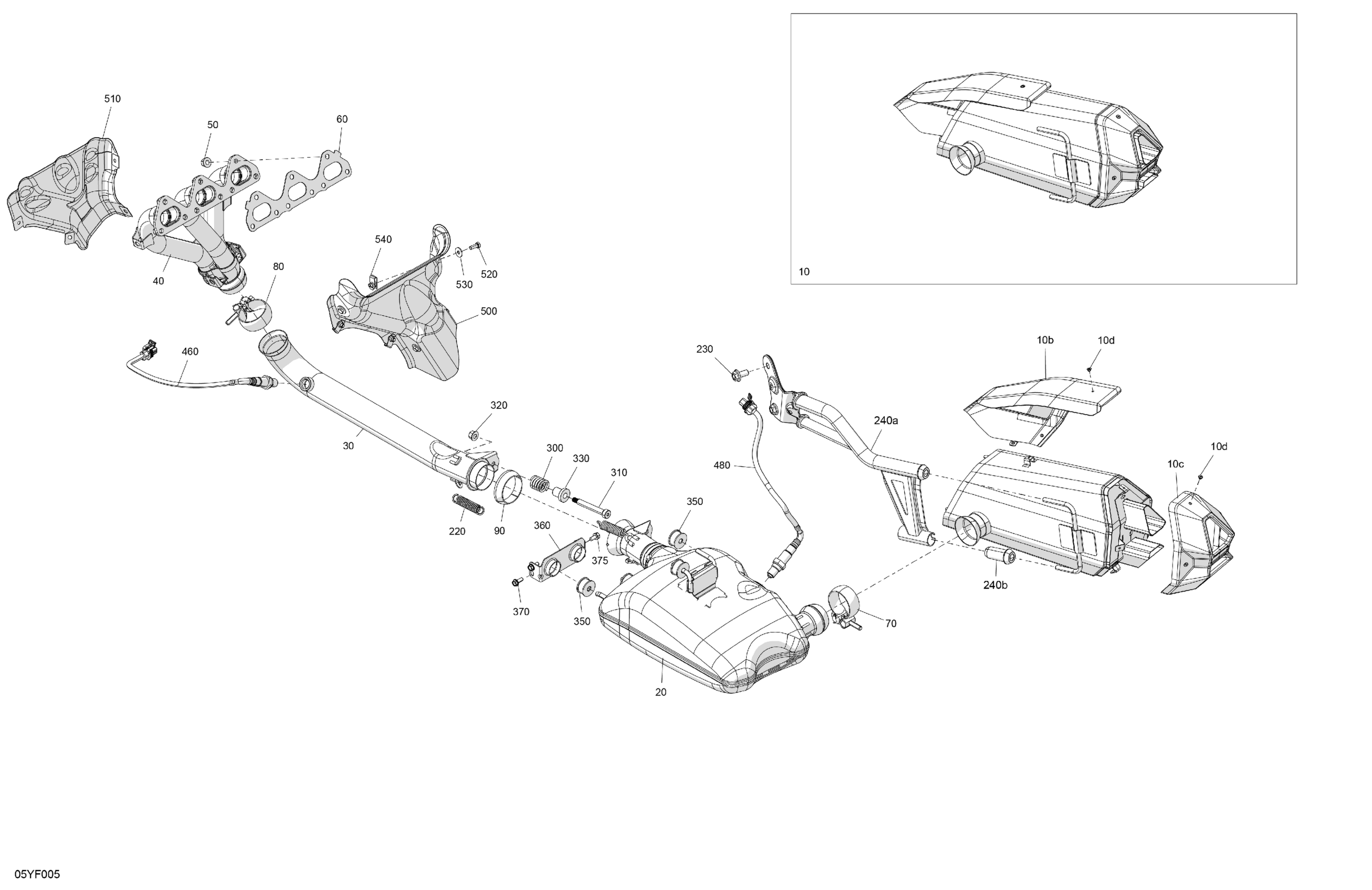

Can-Am Europe - F3 - SPORT - E6TE - Circuit Yellow, 2026 Engine - Exhaust Diagram

#

Description
Price

10

Carbon Black, Muffler Exhaust Sec. | Includes 10 to 10d

707602475

$953.99

10b

Carbon Black, Heat Shield | Includes 10b to 10b2

707601560

$82.49

10c

Carbon Black Muffler End Cap | Includes 10c to 10c2

707601561

$82.49

10d

Rivet-Pop 5/32

293150219

$1.39

20

Primary Exhaust Muffler

707604008

$1.00

30

Exhaust Pipe Out Weld

707604009

$338.99

40

Exhaust Manifold

707603565

$769.99

50

Hex. Flange Nut M8

233081416

$1.15

60

Exhaust Seal

707601985

$7.94

70

Exhaust Clamp

707600980

$24.99

80

Exhaust Clamp

707600980

$24.99

90

Exhaust Gasket

514054174

$28.49

220

Spring

415107100

$6.35

230

Hex Flange Screw M10 X 20

207502044

$4.44

240a

Exhaust Support

707603935

$67.99

240b

Rubber Bushing

293830167

$14.83

300

Spring

707600682

$6.35

310

Screw Socket Head Shoulder M10 X 65

250001363

$8.79

320

Hex. Flange Nut M8

233081416

$1.15

330

Bushing

707601254

$11.49

350

Anti-Vibration Rubber

707600702

$8.57

360

Front Bracket | Includes 360 to 360b1a

707600661

$13.22

370

Hex. Flange Screw M6 X 16

210261650

$1.67

375

Hex. Flange Screw M6 X 12

210261250

$1.90

460

Oxygen Sensor

707600872

$144.99

480

Oxygen Sensor

707600872

$144.99

500

Heat Shield interior

707603641

$53.99

510

Heat Shield Exterior

707603642

$53.99

520

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

530

Flat Washer M6, Stainless

234062600

$0.77

540

Panel Nut M6 X 1.0

250100198

$2.11
