Partiron

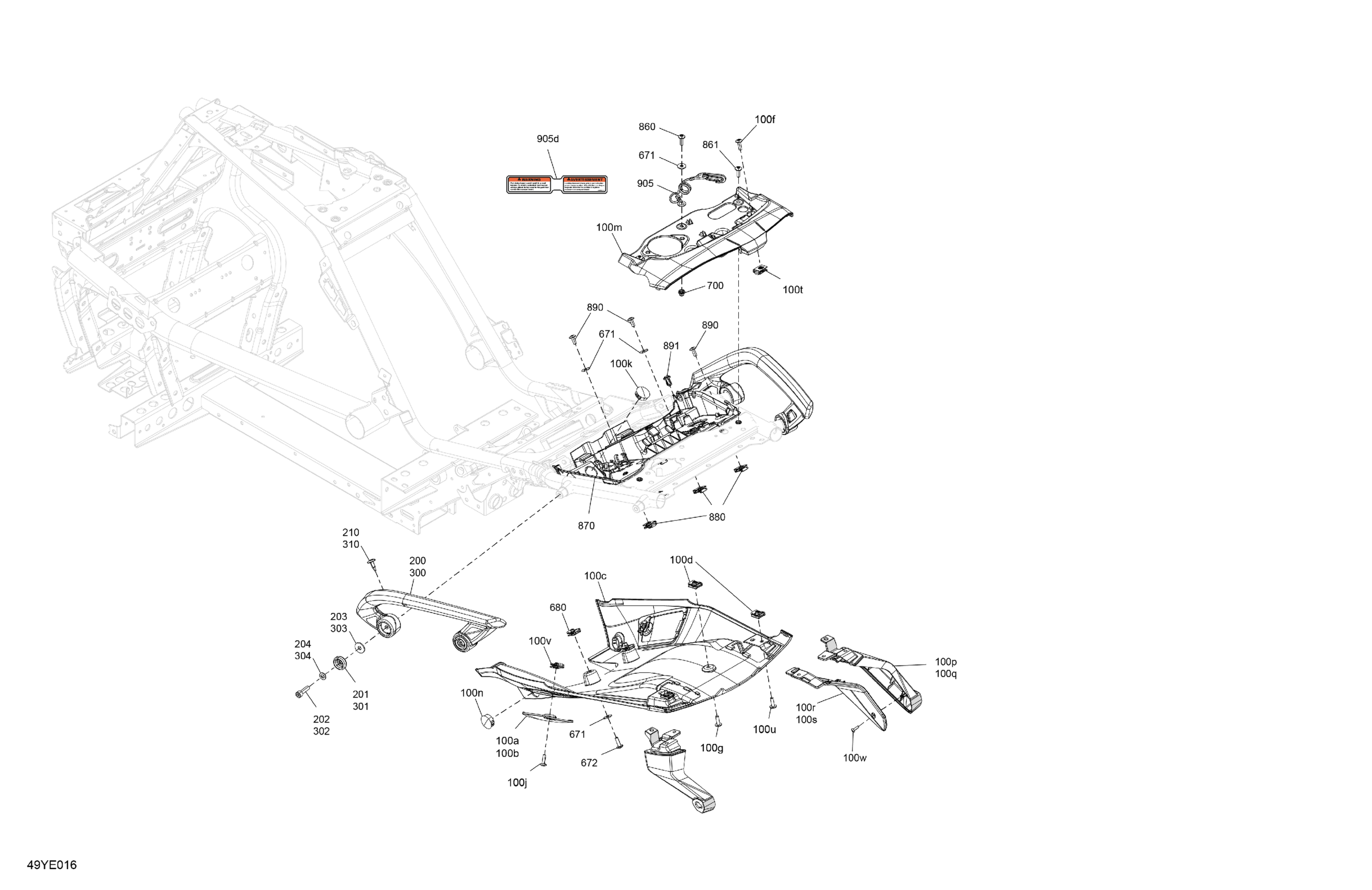

Can-Am Europe - F3 SPORT - E6SB - Monolith Black, 2025 Body - Cargo Diagram

#

Description
Price

100a

LH Front Cap

708301513

$17.00

100b

RH Front Cap

708301514

$17.00

100c

Under Tail Cover

708001415

$55.00

100d

Panel Nut M6 X 1.0

250100208

$1.07

100f

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

100g

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

100h

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

100j

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

100k

Black, Nylon Cap

414916600

$4.32

100m

Taillight Support

708002814

$27.00

100n

Black, Nylon Cap

414916600

$4.32

100p

LH Support

708001622

$19.00

100q

RH Support

708001623

$19.00

100r

LH Cap Support

708001624

$17.00

100s

RH Cap Support

708001625

$17.00

100t

Panel Nut M6 X 1.0

250100198

$1.73

100u

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

100v

Panel Nut M6 X 1.0

250100208

$1.07

100w

Torx-Truss Pt K40 X 16

250000759

$1.74

200

LH Rear Holding Handle

708003456

$106.00

201

Bushing

708302461

$19.00

202

Socket Head Screw M8 X 30, Scotch Grip

250000823

$3.00

203

Flat Washer 8 mm

234082410

$1.11

204

Stainless Steel Flat Washer 8 mm

234081670

$0.56

210

Tuflock Phillips Plastic Screw

414745900

$1.30

300

RH Rear Holding Handle

708003457

$106.00

301

Bushing

708302461

$19.00

302

Socket Head Screw M8 X 30, Scotch Grip

250000823

$3.00

303

Flat Washer 8 mm

234082410

$1.11

304

Stainless Steel Flat Washer 8 mm

234081670

$0.56

310

Tuflock Phillips Plastic Screw

414745900

$1.30

671

Stainless Steel Flat Washer

234062670

$1.74

672

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

680

Panel Nut M6 X 1.0

250100208

$1.07

700

Insert Half Hex Body M6 x 1.0

250100199

$2.54

860

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

861

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

870

Cargo Rear Support

708301698

$90.00

880

Panel Nut M6 X 1.0

250100208

$1.07

890

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

891

Tuflok Plastic Rivet

293150230

$1.21

905

Lanyard | Included 905 to 905d

708002532

$23.00

905d

Cord Decal

704905127

Unavailable
