Description

Price

10

LH Front Brake Caliper | Includes 10 to 10b

705602327

$370.49

10a

Brake Pad Kit

219800237

$79.49

10b

Spring/Pin/Clip Kit

219800238

$26.99

20

RH Front Brake Caliper

705602328

$370.49

30

Hex Flange Screw M10 X 65

207506556

$6.77

40

Brake Line | Includes 40 to 40a

705602202

$61.49

40a

Clamp

293650256

$5.49

45

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$2.11

46

Panel Nut M6 X 1.0

250100208

$1.46

50

Washer

414920600

$1.90

60

Banjo Bolt/ Bleeder

705601201

$19.99

61

Bleeder Bolt Cap

705601190

$4.44

65

Brake Line | Includes 65 to 65a

705602203

$61.49

65a

Clamp

293650256

$5.49

70

Front Brake Disk

705601631

$153.99

125

Hex. Flange Screw M6 X 20

207662054

$1.01

140

Banjo Bolt/ Bleeder

705601201

$19.99

141

Bleeder Bolt Cap

705601190

$4.44

150

Washer

414920600

$1.90

370

Anchorage Tube

705601987

$5.18

400

Central Brake Line

705602033

$78.49

410

Central Brake Line

705602034

$78.49

420

Washer

414920600

$1.90

430

Banjo Bolt

507032551

$5.61

440

Central Brake Line | Includes 440 to 440a

705602267

$78.49

440a

Clamp

293650256

$5.49

700

Purge Screw M12 X 1.0

705602133

$12.16

710

Bleeder Bolt Cap

705601190

$4.44

8850

Speed Sensor

710006981

$83.99

8851

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

8852

Front Sensor Wheel

705601512

$43.99

8853

Torx-truss M/s M6 X 10

250000995

$4.44

8855

LH Support Wire

710004860

$2.29

8860

Sensor Support

710009856

$11.99

8861

Hex. Flange Screw M6 X 12

210261250

$1.90

8900

Speed Sensor

710006981

$83.99

8901

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

8902

Front Sensor Wheel

705601512

$43.99

8903

Torx-truss M/s M6 X 10

250000995

$4.44

8905

RH Support Wire

710004861

$2.29

8910

Sensor Support

710009857

$11.05

8911

Hex. Flange Screw M6 X 12

210261250

$1.90

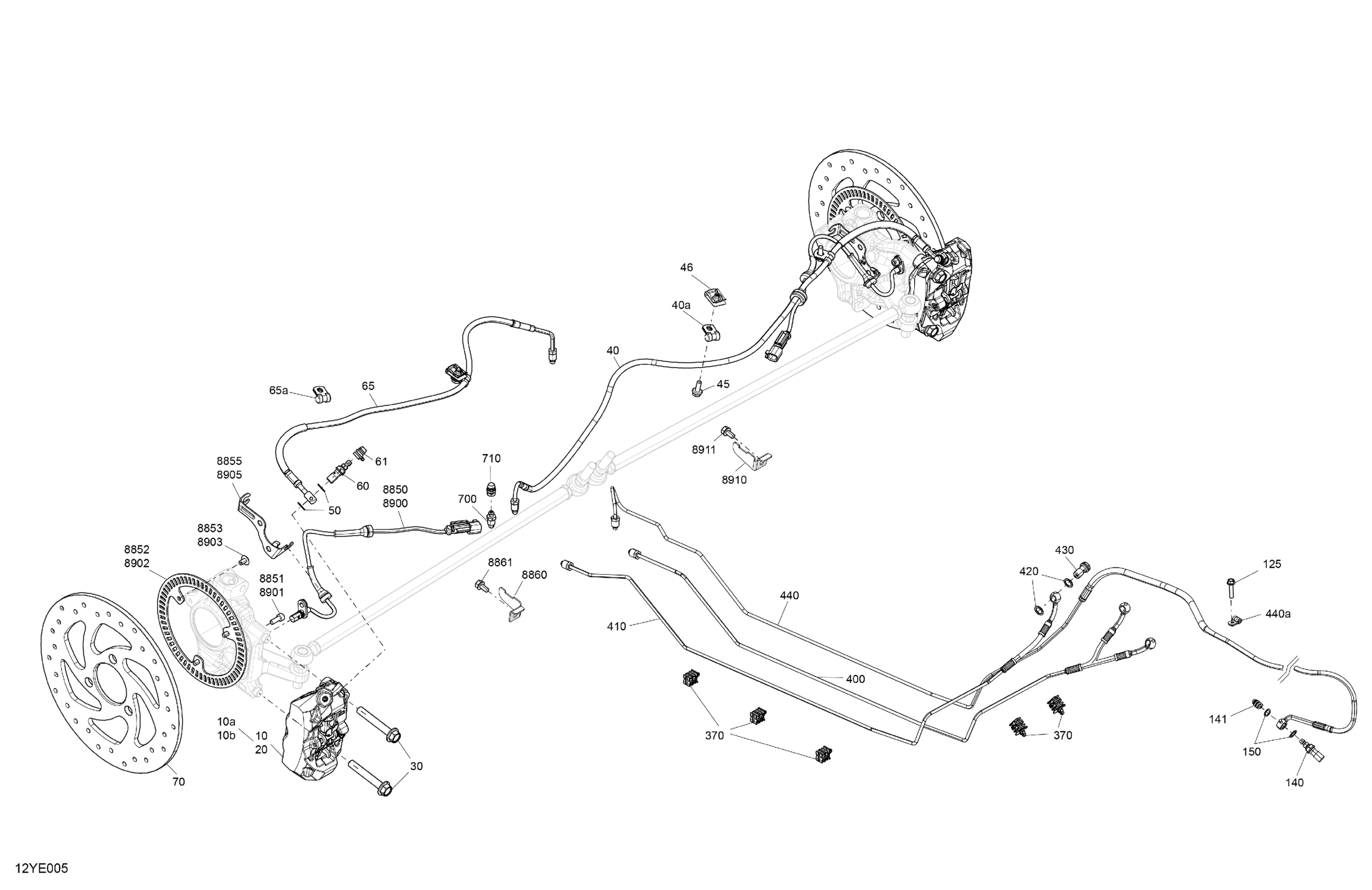

Can-Am On-Road Europe - F3 SPORT - E6SB - Monolith Black, 2025 03- Mechanic - Front Brakes Diagram

LH Front Brake Caliper | Includes 10 to 10b

Brake Pad Kit

Spring/Pin/Clip Kit

RH Front Brake Caliper

Hex Flange Screw M10 X 65

Brake Line | Includes 40 to 40a

Clamp

Hex. Flange Screw M6 X 16, Scotch Grip

Panel Nut M6 X 1.0

Washer

Banjo Bolt/ Bleeder

Bleeder Bolt Cap

Brake Line | Includes 65 to 65a

Clamp

Front Brake Disk

Hex. Flange Screw M6 X 20

Banjo Bolt/ Bleeder

Bleeder Bolt Cap

Washer

Anchorage Tube

Central Brake Line

Central Brake Line

Washer

Banjo Bolt

Central Brake Line | Includes 440 to 440a

Clamp

Purge Screw M12 X 1.0

Bleeder Bolt Cap

Speed Sensor

Socket Head Screw M6 X 16, Scotch Grip

Front Sensor Wheel

Torx-truss M/s M6 X 10

LH Support Wire

Sensor Support

Hex. Flange Screw M6 X 12

Speed Sensor

Socket Head Screw M6 X 16, Scotch Grip

Front Sensor Wheel

Torx-truss M/s M6 X 10

RH Support Wire

Sensor Support

Hex. Flange Screw M6 X 12
