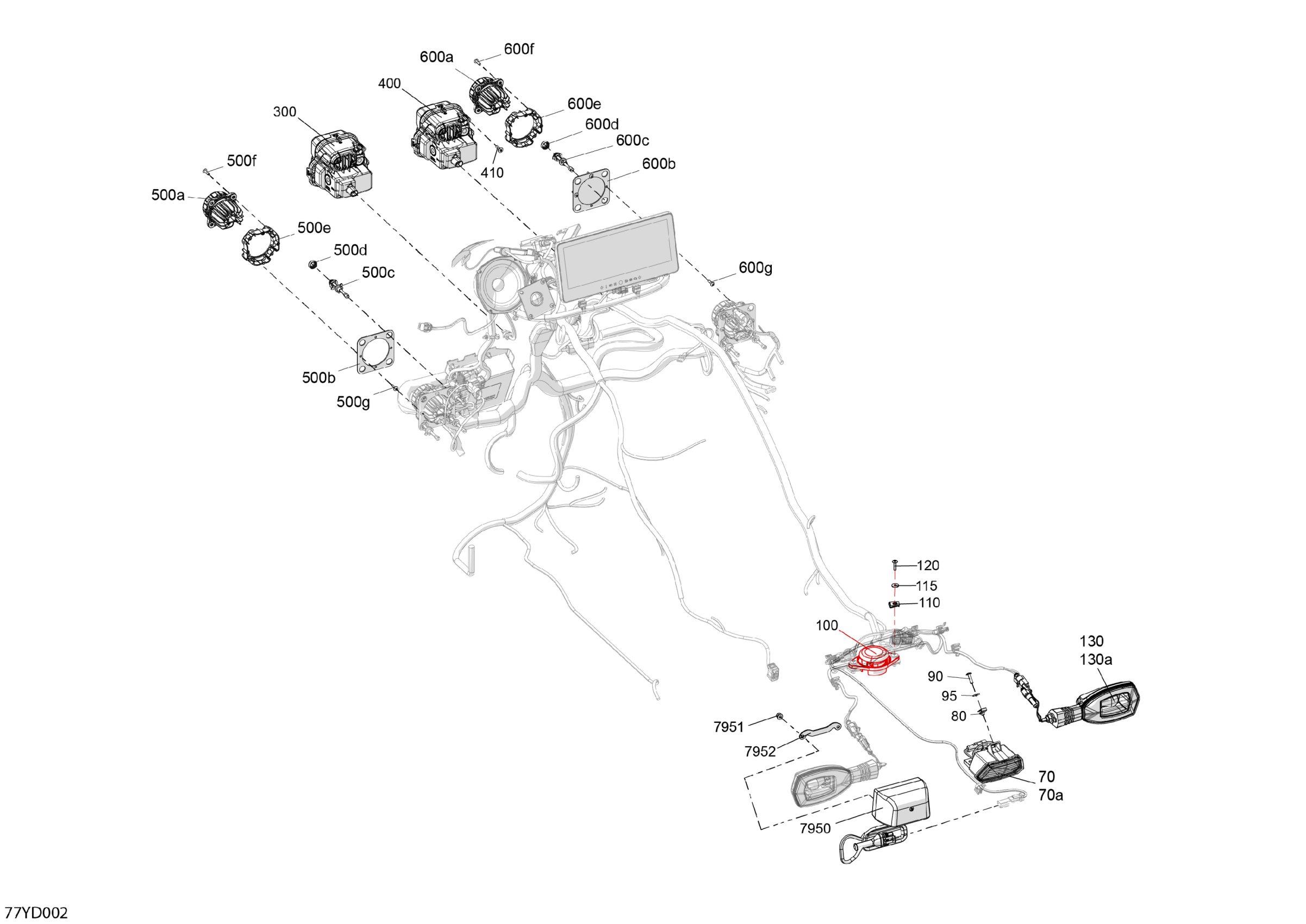

Can-Am Europe - F3 SPORT - E6RB- SPORT - Monolith Black, 2024 Electric - Vehicle Lighting Diagram

Description

Price

Back-Up Light | Includes 0k to 0k1

710007005

Unavailable

70a

Bulb 12V 10W

219800322

$9.00

Panel Nut M5 X 0.8

250000958

$3.48

Torx Truss Screw M5 X 20

250000715

$2.06

Stainless Steel Flat Washer M5

234052670

$0.83

100

Passenger Detection Switch

710008103

$72.28

110

Panel Nut M6 X 1.0

250100208

$1.07

115

Stainless Steel Flat Washer

234062670

$1.74

120

Torx Truss Screw M6 X 25

250000807

$1.74

130

Amber, Rear Turn Signal | Includes 0u to 0u1

710007006

$83.00

130a

Flasher Bulb

219800122

$7.00

300

Front Headlight

710008694

$350.00

400

Front Headlight

710008694

$350.00

410

Torx Screw K50 X 16

250000720

$1.39

500a

Low Beam Ass'y

710006007

$350.00

500b

Headlight Support

710007188

$15.00

500c

Adjustment Screw

710007200

$10.00

500d

Clip

293730095

$2.00

500e

Adapter

710007189

$4.00

500f

Torx-Truss Pt K40 X 16

250000759

$1.74

500g

Torx-Truss Pt K40 X 16

250000759

$1.74

600a

Low Beam Ass'y

710006007

$350.00

600b

Headlight Support

710007188

$15.00

600c

Adjustment Screw

710007200

$10.00

600d

Clip

293730095

$2.00

600e

Adapter

710007189

$4.00

600f

Torx-Truss Pt K40 X 16

250000759

$1.74

600g

Torx-Truss Pt K40 X 16

250000759

$1.74

7950

License Plate Light

710003349

$71.00

7951

Elastic Flange Nut M5

233251494

$1.74

7952

Plate

710004815

$18.00
