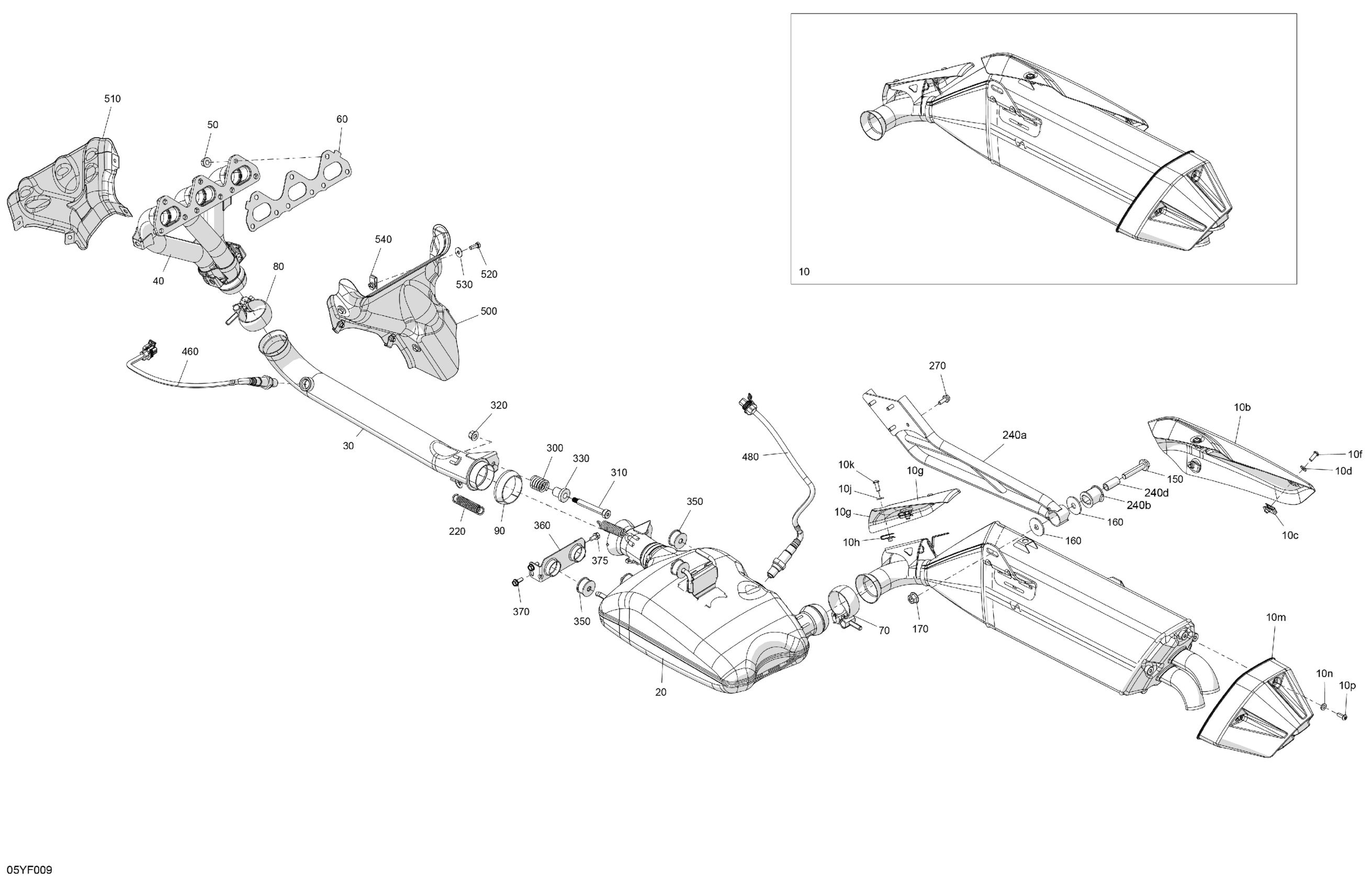

Can-Am Europe - F3 - LIMITED - Platine Edition - H9TC - Vegas White, 2026 Engine - Exhaust Diagram

#

Description
Price

10

Carbon Black, Muffler Exhaust Sec. | Includes 10 to 10p

219800442

$953.99

10b

Carbon Black, Heat Shield | Includes 10b to 10b2

707601381

$76.49

10c

Panel Nut M6 X 1.0

250100198

$2.11

10d

Black, Flat Washer 6 mm

234061670

$1.25

10f

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

10g

Carbon Black, Heat Shield | Includes 10g to 10g2

707601054

$26.99

10h

Panel Nut M6 X 1.0

250100198

$2.11

10j

Black, Flat Washer 6 mm

234061670

$1.25

10k

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

10m

Carbon Black, RH Rear Muffler Trim | Includes 10m to 10m2

707601995

$82.49

10n

Black, Flat Washer 6 mm

234061670

$1.25

10p

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

20

Primary Exhaust Muffler

707604008

$1.00

30

Exhaust Pipe Out Weld

707604009

$338.99

40

Exhaust Manifold

707603565

$769.99

50

Hex. Flange Nut M8

233081416

$1.15

60

Exhaust Seal

707601985

$7.94

70

Exhaust Clamp

707600980

$24.99

80

Exhaust Clamp

707600980

$24.99

90

Exhaust Gasket

514054174

$28.49

150

Hex. Flange Screw M10 X 50, Scotch Grip

207505046

$7.41

160

Washer 10 mm

506150000

$2.74

170

Hex. Flange Nut M10

233101600

$5.29

220

Spring

415107100

$6.35

240a

Muffler Support | Includes 240a to 240a2

707601683

$67.99

240b

Anti-Vibration Rubber

293830162

$13.22

240d

Bushing | Includes 240d to 240d1

503189282

$4.34

270

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

300

Spring

707600682

$6.35

310

Screw Socket Head Shoulder M10 X 65

250001363

$8.79

320

Hex. Flange Nut M8

233081416

$1.15

330

Bushing

707601254

$11.49

350

Anti-Vibration Rubber

707600702

$8.57

360

Front Bracket | Includes 360 to 360b1a

707600661

$13.22

370

Hex. Flange Screw M6 X 16

210261650

$1.67

375

Hex. Flange Screw M6 X 12

210261250

$1.90

460

Oxygen Sensor

707600872

$144.99

480

Oxygen Sensor

707600872

$144.99

500

Heat Shield interior

707603641

$53.99

510

Heat Shield Exterior

707603642

$53.99

520

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

530

Flat Washer M6, Stainless

234062600

$0.77

540

Panel Nut M6 X 1.0

250100198

$2.11
