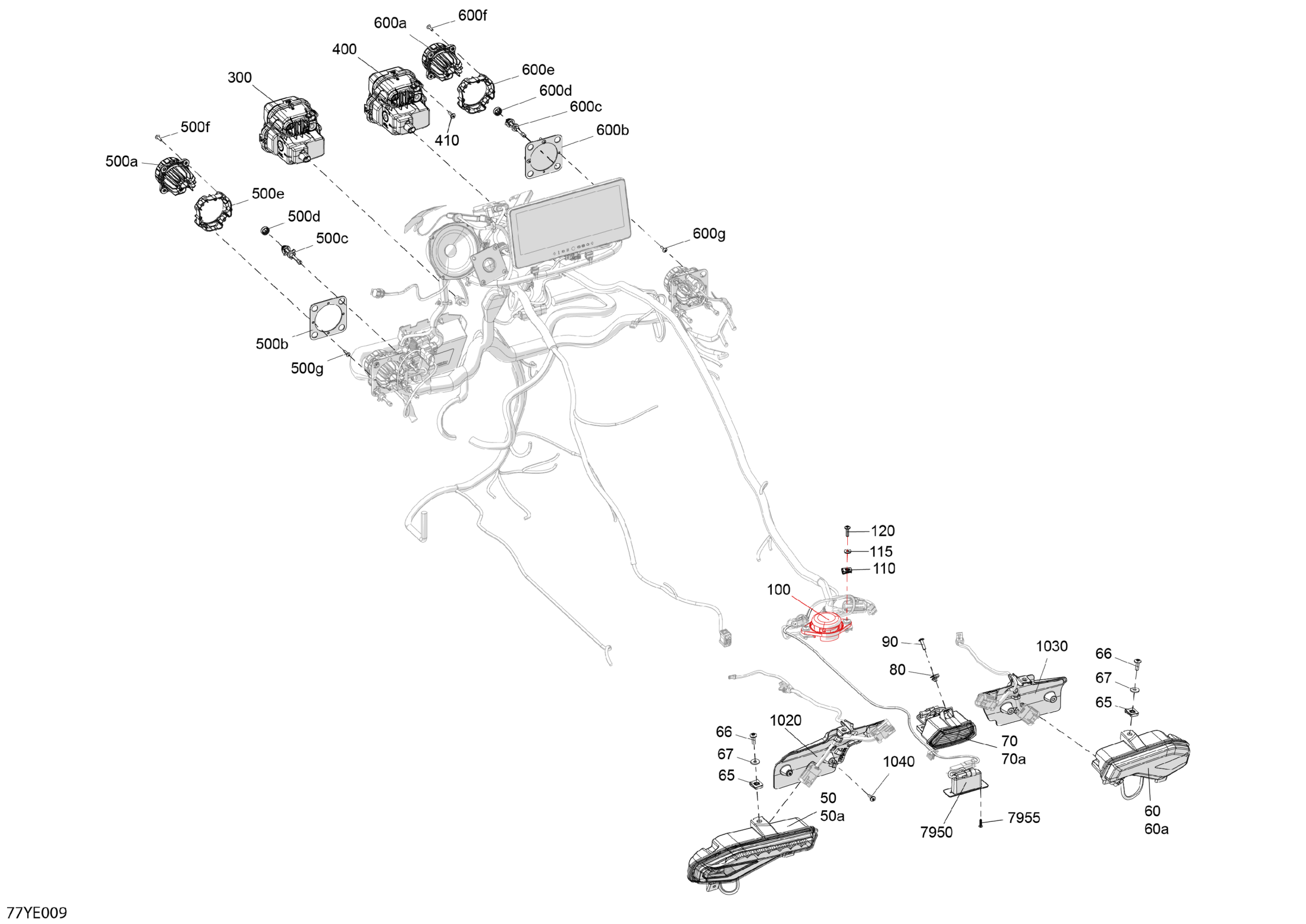

Can-Am Europe - F3 LIMITED - Dark Edition - H8SF - Mineral Blue, 2025 Electric - Vehicle Lighting Diagram

#

Description
Price

50

LH Tail Light | Includes 0k to 0k1

710007002

Unavailable

50a

Flasher Bulb

219800304

$6.66

60

RH Tail Light | Includes 0m to 0m1

710007004

Unavailable

60a

Flasher Bulb

219800304

$6.66

65

Panel Nut M6 X 1.0

250100208

$1.07

66

Torx Screw M6 X 20

250000722

$1.34

67

Flat washer M6

250200164

$0.83

70

Back-Up Light | Includes 0k to 0k1

710007005

Unavailable

70a

Bulb 12V 10W

219800322

$8.68

80

Panel Nut M5 X 0.8

250000958

$3.48

90

Torx Truss Screw M5 X 20

250000715

$2.00

100

Passenger Detection Switch

710008103

$70.12

110

Panel Nut M6 X 1.0

250100208

$1.07

115

Stainless Steel Flat Washer

234062670

$1.74

120

Torx Truss Screw M6 X 25

250000807

$1.74

300

Front Headlight

710008694

$349.99

400

Front Headlight

710008694

$349.99

410

Torx Screw K50 X 16

250000720

$1.39

500a

Low Beam Ass'y

710006007

$349.99

500b

Headlight Support

710007188

$15.49

500c

Adjustment Screw

710007200

$10.27

500d

Clip

293730095

$1.68

500e

Adapter

710007189

$3.59

500f

Torx-Truss Pt K40 X 16

250000759

$1.74

500g

Torx-Truss Pt K40 X 16

250000759

$1.74

600a

Low Beam Ass'y

710006007

$349.99

600b

Headlight Support

710007188

$15.49

600c

Adjustment Screw

710007200

$10.27

600d

Clip

293730095

$1.68

600e

Adapter

710007189

$3.59

600f

Torx-Truss Pt K40 X 16

250000759

$1.74

600g

Torx-Truss Pt K40 X 16

250000759

$1.74

1020

LH Connector Support

710004643

$12.99

1030

RH Connector Support

710004644

$11.49

1040

Torx Screw K50 X 16

250000720

$1.39

7950

License Light

710005501

$55.19

7955

Hex. Flange Screw K40 X 16

250001123

$2.00
