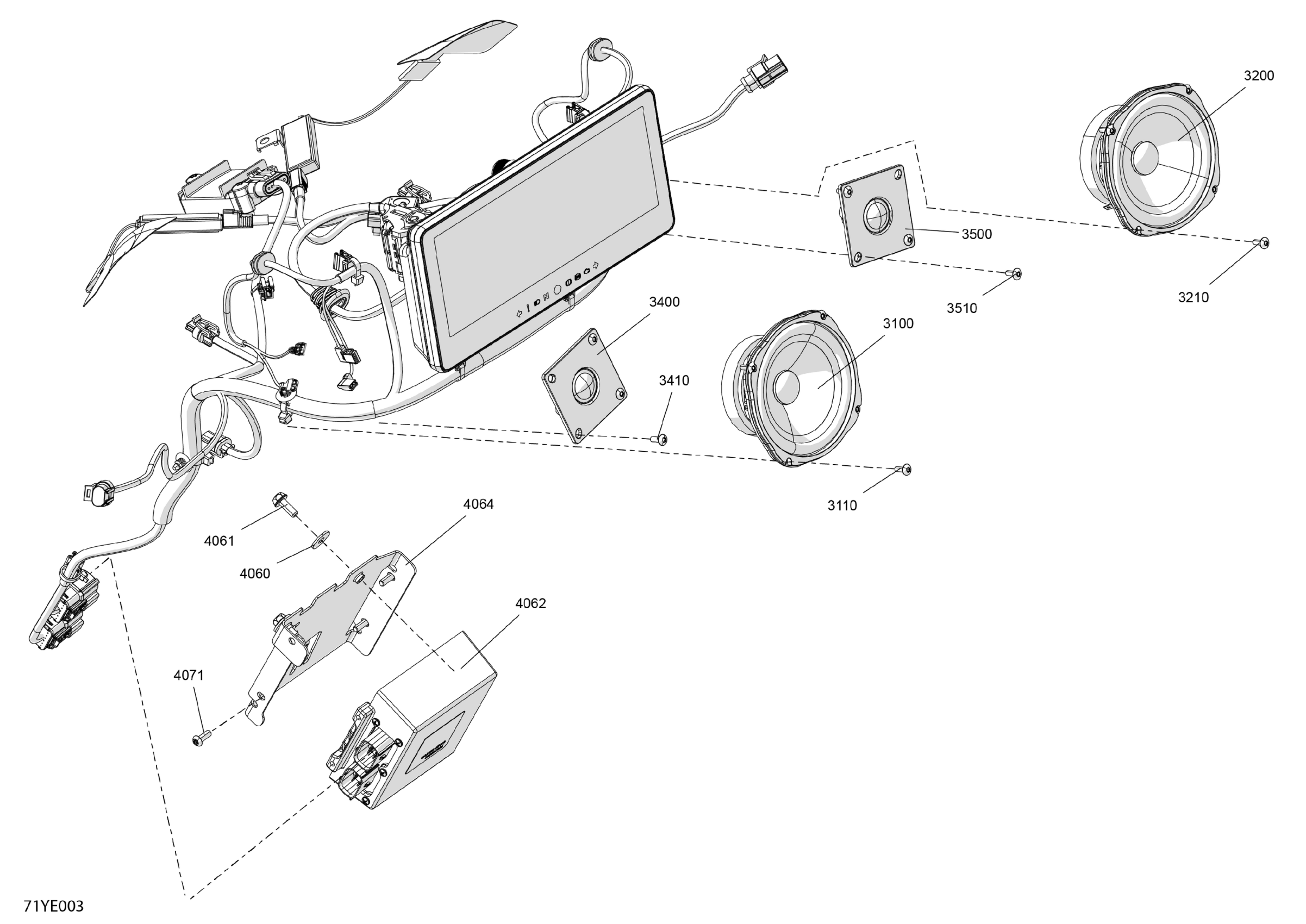

Can-Am Europe - F3 LIMITED - Dark Edition - H8SF - Mineral Blue, 2025 Electric - Audio System Diagram

Description

Price

3100

4.5" Speaker

710005433

$36.00

3110

Torx Truss PT K40 x 12

250001131

$1.74

3200

4.5" Speaker

710005433

$36.00

3210

Torx Truss PT K40 x 12

250001131

$1.74

3400

Loudspeaker Tweeter

710006796

$21.00

3410

Torx Truss PT K40 x 12

250001131

$1.74

3500

Loudspeaker Tweeter

710006796

$21.00

3510

Torx Truss PT K40 x 12

250001131

$1.74

4060

Stainless Steel Flat Washer

234062670

$1.74

4061

Hexagonal Head Screw

210262050

$1.74

4062

Amplifier 6 x 20 Watts

710006566

$455.00

4064

Amplifier Support

710010814

$17.00

4071

Screw-Torx Button Head M5 X 14

235551454

$7.31
