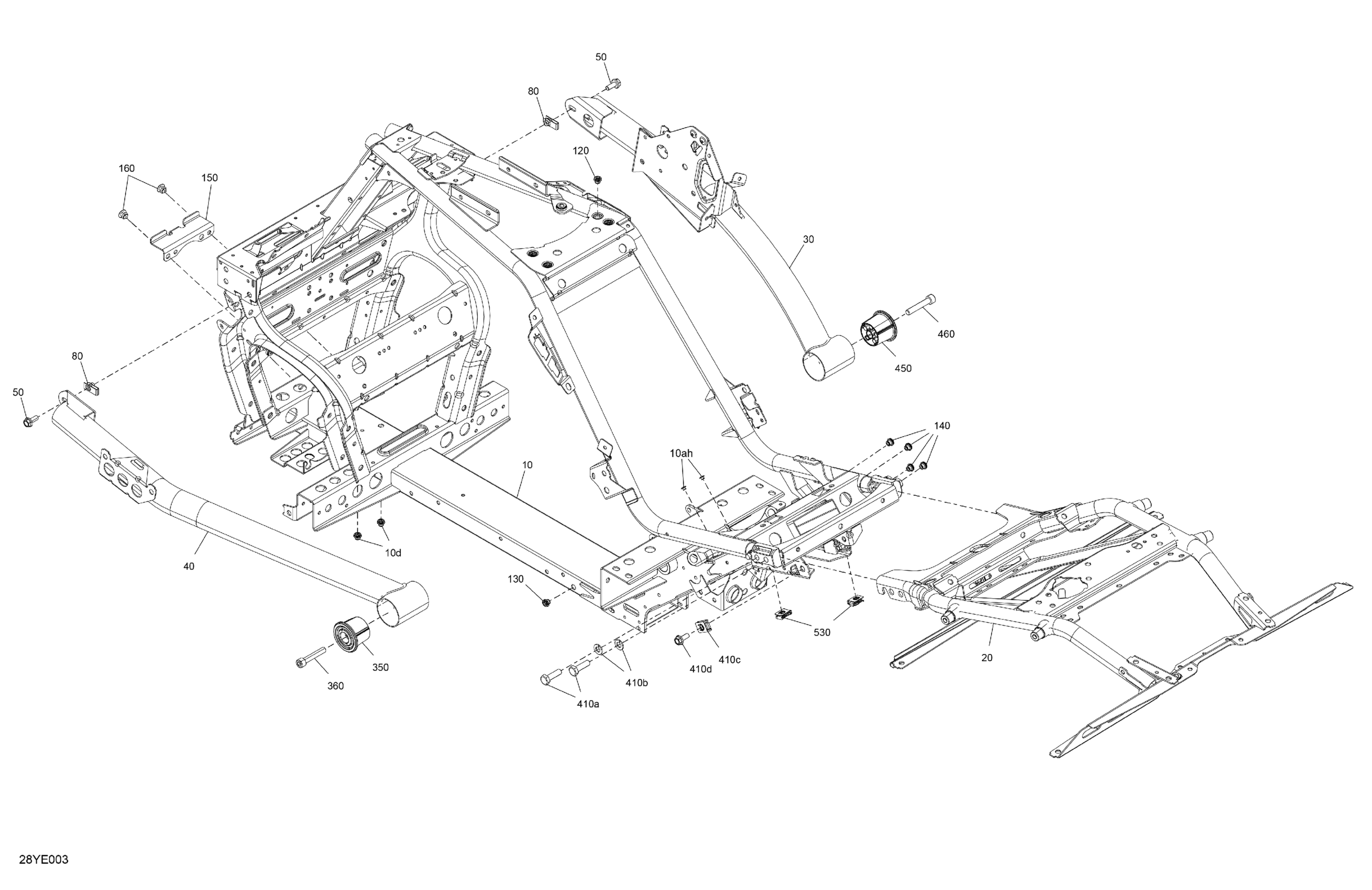

Can-Am Europe - F3 LIMITED - Dark Edition - H8SF - Mineral Blue, 2025 Frame - System Diagram

Description

Price

Chassis F3 | Includes 10 to 10ax

705212473

$1,780.00

10d

Insert Half Hex Body M6 x 1.0

250100199

$2.54

10ah

Pop Rivet 3/16 X ,425

293150293

$0.26

10ax

Steel Wire S6 .9mm HI-DEP | Not Shown

75011200

Unavailable

Kit Frame Extension

219800411

$560.00

20a1t

Steel Wire S6 .9mm HI-DEP | Not Shown

75011200

Unavailable

Carbon Black, RH Upper Lateral Support

705204607

$350.00

30a1g

Steel Wire S6 .9mm HI-DEP | Not Shown

75011200

Unavailable

Carbon Black, LH Upper Lateral Support

705204612

$210.00

40a1f

Steel Wire S6 .9mm HI-DEP | Not Shown

75011200

Unavailable

Hex Screw Washer Head M8 X 20

207582054

$2.61

Panel Nut M8 X 1.25

250100118

$1.63

120

Insert Half Hex Body M6 x 1.0

250100199

$2.54

130

Insert Half Hex Body M6 x 1.0

250100199

$2.54

140

Insert Half Hex Body M6 x 1.0

250100199

$2.54

150

Battery Support

705212716

$5.00

160

Rivet Ornit 6,5 X 12.5

293150265

$1.94

350

Pivot Cap

705010202

$23.00

360

Socket Head Screw

205505560

$7.00

450

Pivot Cap

705010202

$23.00

460

Socket Head Screw

205505560

$7.00

530

Panel Nut M6 X 1.0

250100208

$1.07

410a

Hex. Screw M10 x 35 (Scotch Grip)

207303544

$1.65

410b

Lock Washer Helical M10

234101411

$0.22

410c

Panel Nut M8 X 1.25

250100069

$4.00

410d

Hex Screw Washer Head M8 X 20

207582054

$2.61
