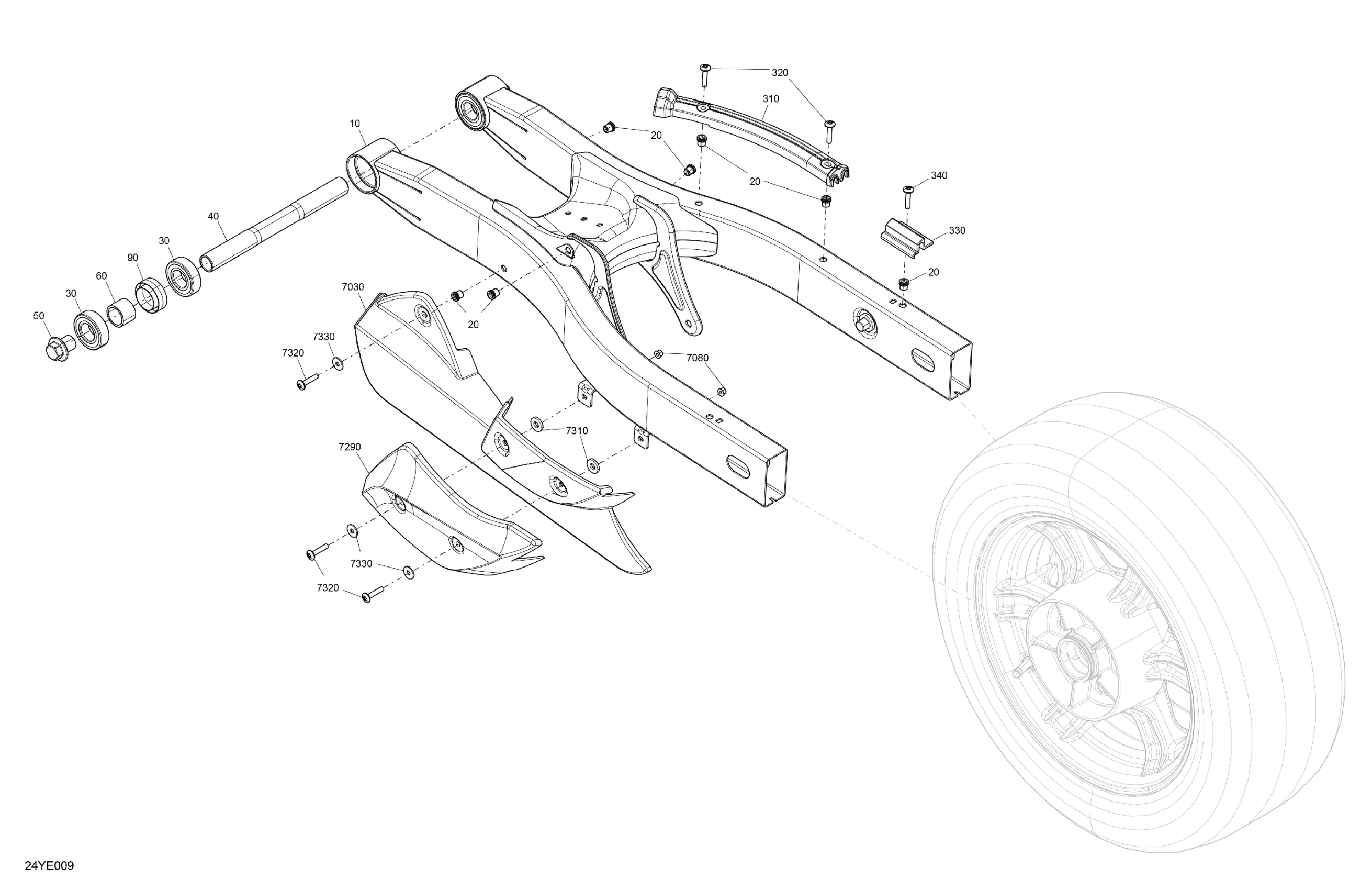

Can-Am On-Road Europe - F3 LIMITED - Dark Edition - H8SF - Mineral Blue, 2025 05- Suspension - Rear Diagram

Description

Price

Swing Arm

706001574

$455.99

Insert

293450275

$12.99

Ball Bearing

293350153

$12.65

Swing Arm Axle

706001182

$93.99

Bolt M20

706001579

$16.87

Spacer

706001152

$9.49

Sleeve

706001366

$1.26

310

Protector

710004281

$25.99

320

Torx Truss Screw M6 X 30

250000843

$2.11

330

Hose Support

710002145

$7.89

340

Torx Truss Screw M6 X 30

250000843

$2.11

7030

Lower Belt Guard

705002092

$48.99

7080

Hex. Flange Elastic Nut M6

233261494

$1.58

7290

Belt Guard Moulding

705009446

$35.99

7310

Self-Adhesive Spacer

705015250

$3.99

7320

Stainless, Torx Screw M6 X 30

250000842

$2.11

7330

Stainless Steel Flat Washer

234062670

$2.11
