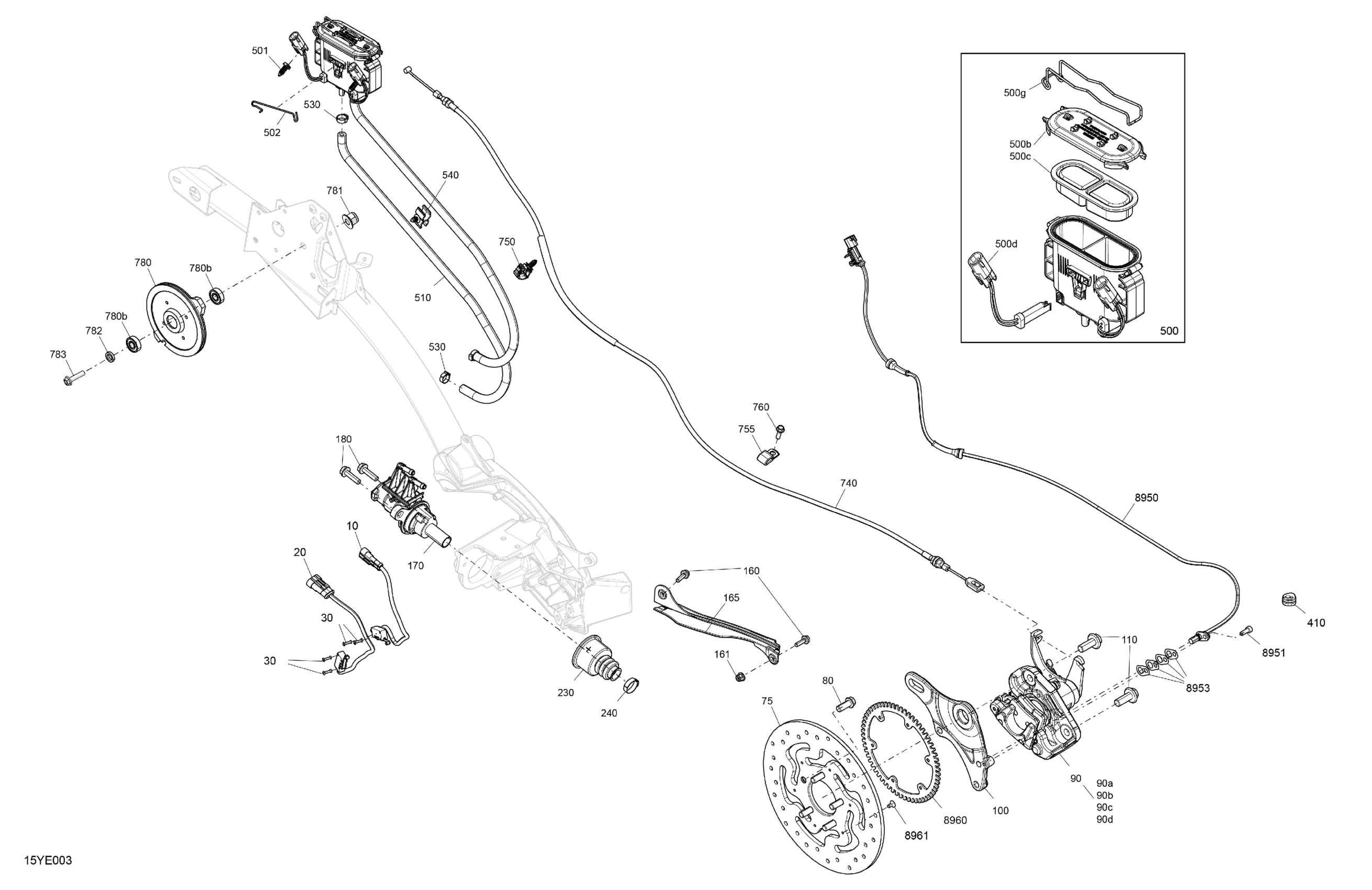

Can-Am Europe - F3 LIMITED - Dark Edition - H8SF - Mineral Blue, 2025 Mechanic - Rear Brake Diagram

#

Description
Price

10

Brake Light Switch Ass'y

710003412

$46.00

20

Brake Pressure Switch Ass'y

710001379

$41.51

30

Pop Rivet

293150150

$2.31

75

Rear Brake Disk

705601632

$245.00

80

Hex. Flange Screw M10 X 25

250001054

$12.48

90

Rear Caliper | Includes 90 to 90d

705600989

$498.00

90a

Brake Pad Kit

219800239

$79.00

90b

Spring/Pin/Clip Kit

219800240

$36.00

90c

Rear Cable Support Kit

219800241

$41.00

90d

Rear Dust Cover

219800242

$33.00

100

Rear Brake Caliper Support

705601746

$57.00

110

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.07

160

Hex. Flange Screw M6 X 20

207662054

$0.83

161

Hex. Flange Elastic Nut M6

233261494

$1.26

165

Cable Guide

706202587

$12.00

170

Tandem Cylinder Master

705600722

$370.00

180

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

230

Bellow

705600716

$12.00

240

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

410

Grommet

293720084

$6.00

500

Master Cylinder Reservoir Ass'y | Includes 500 to 500h

705601526

$110.74

500b

Diaphragm Cover Ass'y

219800350

$17.66

500c

Diaphragm Cover Ass'y

219800350

$17.66

500d

Oil Level Sensor

705601073

$50.74

500g

Spindle Lock

705601294

$14.37

500h

Push Nut | Not shown

211100002

$0.83

501

Connector Holder

710002033

$3.22

502

Stopper Spring

705209087

$6.00

510

Formed Hose

705601236

$17.00

530

Crimp Clamp, 15.3-706R

293650047

$2.64

540

Hose Support

709000571

$4.60

740

Parking Brake Cable

707001856

$67.00

750

Harness Support

709000633

$7.00

755

Open Clamp

515175507

$1.47

760

Hexagonal Head Screw

210262050

$1.74

780

Pulley Cable Ass'y | Includes 780 to 780b

705601973

$87.66

780b

Ball Bearing

705601974

$7.03

781

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

782

Bushing

293900087

$7.60

783

Hex. Flange Screw M10 X 40 | Includes 783 to 783j

207604054

$7.00

8950

Speed Sensor

710006982

$84.00

8951

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.37

8953

Shim

710002023

$3.00

8960

Sensor Wheel

705601372

$47.00

8961

Socket Head Screw M5 X 10

205851036

$7.00
