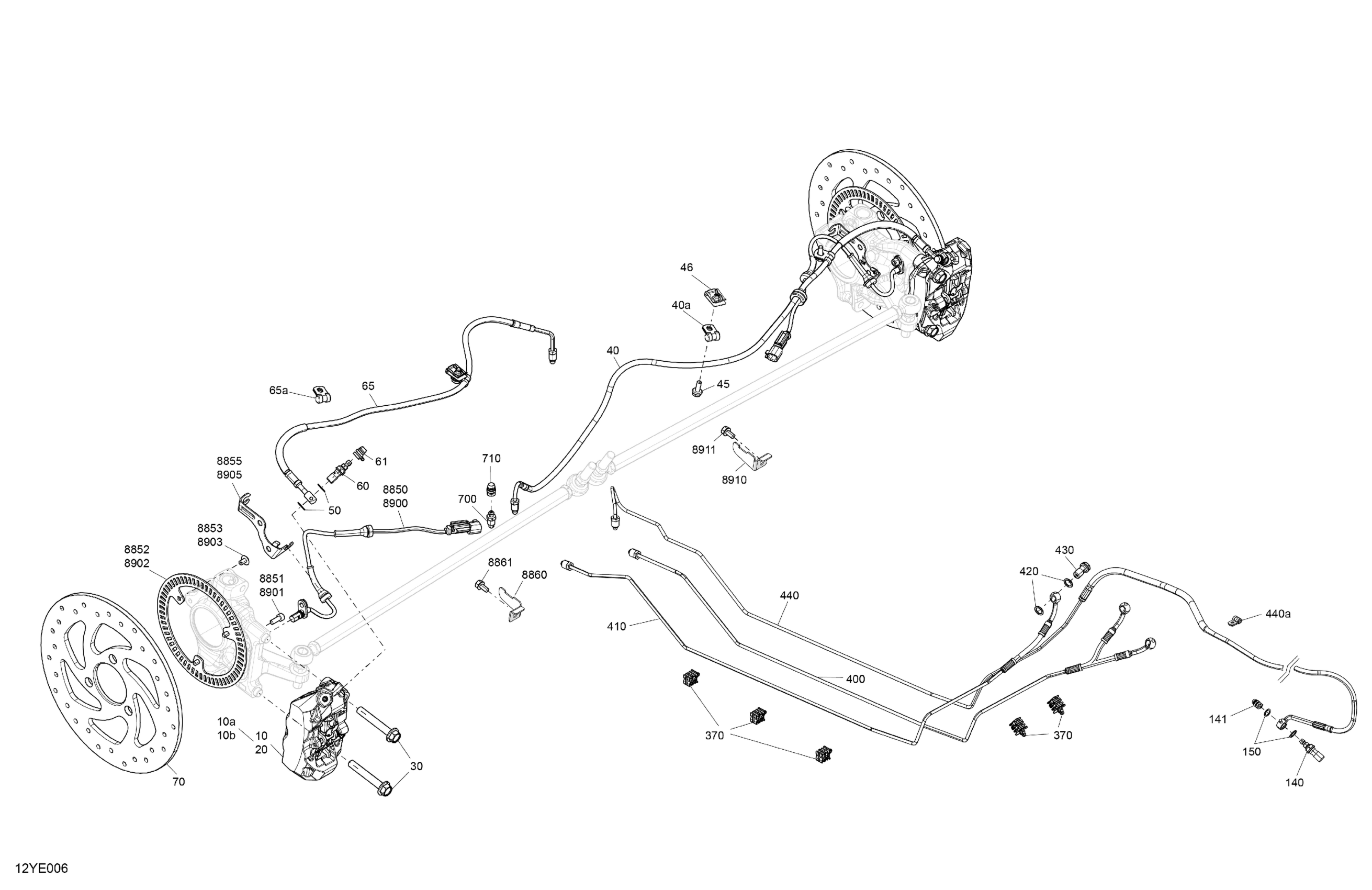

Can-Am Europe - F3 LIMITED - Dark Edition - H8SF - Mineral Blue, 2025 Mechanic - Front Brakes Diagram

#

Description
Price

10

LH Front Brake Caliper | Includes 10 to 10b

705602327

$370.00

10a

Brake Pad Kit

219800237

$79.00

10b

Spring/Pin/Clip Kit

219800238

$27.00

20

RH Front Brake Caliper

705602328

$370.00

30

Hex Flange Screw M10 X 65

207506556

$7.00

40

Brake Line | Includes 40 to 40a

705602202

$61.00

40a

Clamp

293650256

$4.36

45

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$1.74

46

Panel Nut M6 X 1.0

250100208

$1.07

50

Washer

414920600

$1.52

60

Banjo Bolt/ Bleeder

705601201

$17.66

61

Bleeder Bolt Cap

705601190

$4.28

65

Brake Line | Includes 65 to 65a

705602203

$61.00

65a

Clamp

293650256

$4.36

70

Front Brake Disk

705601631

$154.00

140

Banjo Bolt/ Bleeder

705601201

$17.66

141

Bleeder Bolt Cap

705601190

$4.28

150

Washer

414920600

$1.52

370

Anchorage Tube

705601987

$5.00

400

Central Brake Line

705602033

$78.00

410

Central Brake Line

705602034

$78.00

420

Washer

414920600

$1.52

430

Banjo Bolt

507032551

$5.52

440

Central Brake Line | Includes 440 to 440a

705602035

$78.00

440a

Clamp

293650256

$4.36

700

Purge Screw M12 X 1.0

705602133

$11.98

710

Bleeder Bolt Cap

705601190

$4.28

8850

Speed Sensor

710006981

$78.43

8851

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.37

8852

Front Sensor Wheel

705601512

$44.00

8853

Torx-truss M/s M6 X 10

250000995

$3.61

8855

LH Support Wire

710004860

$2.00

8860

Sensor Support

710009856

$12.00

8861

Hex. Flange Screw M6 X 12

210261250

$1.56

8900

Speed Sensor

710006981

$78.43

8901

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.37

8902

Front Sensor Wheel

705601512

$44.00

8903

Torx-truss M/s M6 X 10

250000995

$3.61

8905

RH Support Wire

710004861

$2.00

8910

Sensor Support

710009857

$11.00

8911

Hex. Flange Screw M6 X 12

210261250

$1.56
