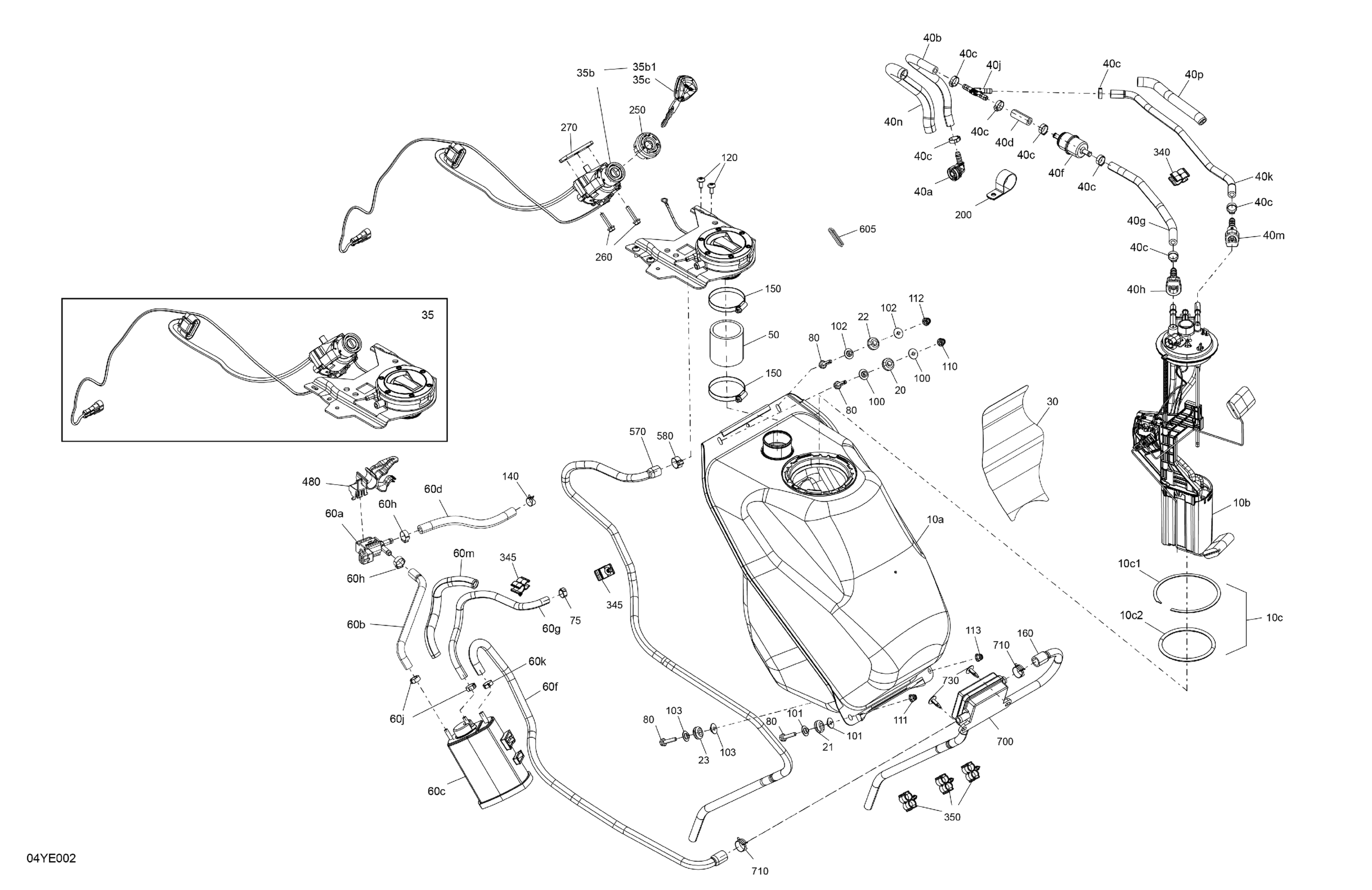

Can-Am Europe - F3 LIMITED - Dark Edition - H8SF - Mineral Blue, 2025 Engine - Fuel Diagram

#

Description
Price

10a

Fuel Tank

219800552

$600.00

10b

Fuel Pump Module

709001658

$625.00

10c

Seal Kit

219800248

$39.00

10c1

Not Available As Spare Parts

XXX

Unavailable

10c2

Not Available As Spare Parts

XXX

Unavailable

20

Grommet

709000582

$4.38

21

Grommet

709000582

$4.38

22

Grommet

709000582

$4.38

23

Grommet

709000582

$4.38

30

Heat Shield

709001680

$21.00

35

Lock Kit | Includes 35 to 35f

709001484

$85.00

35b

Lock Kit | Includes 35b to 35b1

710009772

$297.00

35b1

Blank Ignition Key

710010282

$63.00

35c

Blank Ignition Key

710010282

$63.00

40a

Elbow Fitting 90°

293710105

$10.58

40b

Hose 7,94 Mm Id X 3000 Mm

219800602

$49.00

40c

Oetiker Clamp

293650140

$2.15

40d

Hose 7,94 Mm Id X 3000 Mm

219800602

$49.00

40f

Fuel Filter

513034047

$20.89

40g

Hose 7,94 Mm Id X 3000 Mm

219800602

$49.00

40h

Female Quick Fitting Ass'y

709000684

$15.00

40j

Y Fitting

513034150

$6.02

40k

Hose 7,94 Mm Id X 3000 Mm

219800602

$49.00

40m

Quick Connect Pipe Fitting

293710192

$12.00

40n

Tubing 16 Mm 1000Mm Long

219704408

$6.23

40p

Tubing 16 Mm 1000Mm Long

219704408

$6.23

50

Filler Neck Hose

275501196

$26.00

60a

Purge Valve

709001449

$69.20

60b

Formed Hose

709001624

$13.00

60c

Vapor Canister

709000090

$87.66

60d

Hose 3000Mm Long

219704612

$79.97

60f

Formed Hose

709000567

$29.00

60g

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

60h

Crimp Clamp, 15.3-706R

293650047

$2.64

60j

Oetiker Gear Clamp

293650025

$2.46

60k

Oetiker Clamp

293650140

$2.15

60m

Was 409901800 Tubing (13 mm)

219704400

$9.40

75

Oetiker Clamp

293650046

$2.33

80

Hex. Flange Screw M6 X 25

207662554

$1.48

100

Bushing

709001287

$3.00

101

Bushing

709001287

$3.00

102

Bushing

709001287

$3.00

103

Bushing

709001287

$3.00

110

Hex. Flange Elastic Nut M6

233261466

$1.66

111

Hex. Flange Elastic Nut M6

233261466

$1.66

112

Hex. Flange Elastic Nut M6

233261466

$1.66

113

Hex. Flange Elastic Nut M6

233261466

$1.66

120

Tork Screw M6 X 16

250000534

$1.74

140

Universal Spring Clamp

513033029

$5.11

150

Norma Clamp

293650081

$9.87

160

Formed Hose

709000570

$32.00

200

Open Clamp

513033047

$4.88

250

Ignition Switch Cap

710004182

$13.00

260

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

270

Switch Support

710001365

$21.00

340

Hose Support

709000571

$4.60

345

Hose Support

709000571

$4.60

350

Hose Support

709000571

$4.60

480

Valve Purge Support

709001482

$7.00

570

Formed Hose

709000813

$35.00

580

Oetiker Clamp

293650011

$2.46

605

Trim 1000Mm Long

219704354

$14.74

700

Air Filter

709000524

$43.69

710

Spring Clamp

513033865

$4.00

730

Tuflock Phillips Plastic Screw

414745900

$1.30
