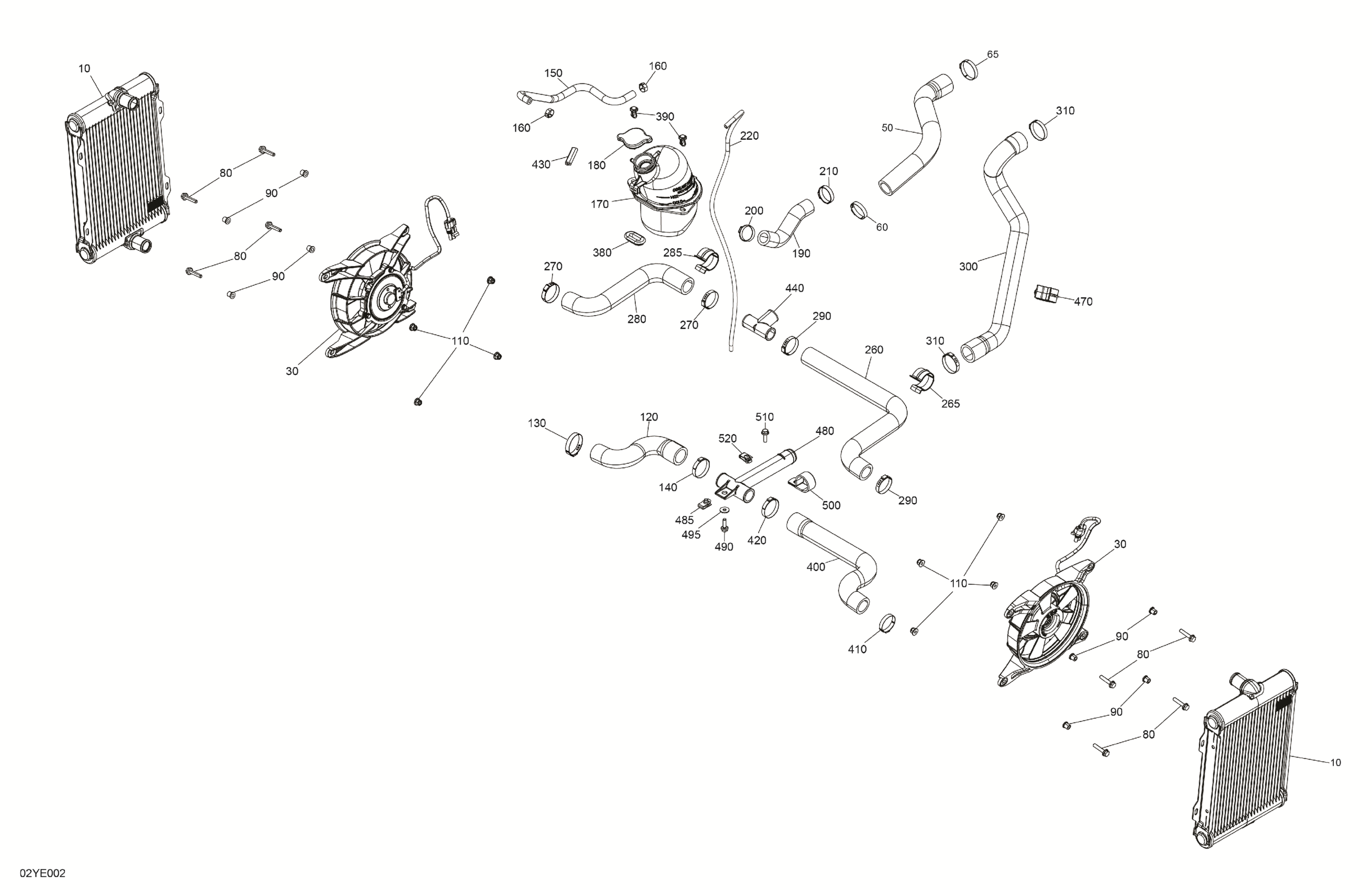

Can-Am Europe - F3 LIMITED - Dark Edition - H8SF - Mineral Blue, 2025 Engine - Cooling Diagram

Description

Price

Radiator

709200529

$433.99

Fan

709200523

$289.99

Upper Formed Water Pump Hose

709200871

$32.99

Crimp Clamp

293650333

$4.49

Oetiker Gear Clamp

293650199

$8.22

Hex. Flange Screw M6 X 30

207663054

$4.49

Sleeve

709200553

$4.23

110

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

120

RH Lower Formed Radiator Hose

709200872

$22.49

130

Crimp Clamp

293650333

$4.49

140

Oetiker Gear Clamp

293650199

$8.22

150

Formed Hose

709200324

$30.99

160

Oetiker Clamp

293650046

$2.99

170

Coolant Tank

709200749

$99.99

180

Pressure Cap

509000187

$31.99

190

Lower Formed Coolant Tank Hose

709200874

$38.99

200

Oetiker Gear Clamp

293650165

$5.49

210

Oetiker Gear Clamp

293650165

$5.49

220

Polyurethane Hose 10000Mm Long

219704410

$57.99

260

LH Upper Radiator Hose

709200875

$32.99

265

Clip

275500951

$8.47

270

Crimp Clamp

293650333

$4.49

280

RH Upper Radiator Hose Formed

709200876

$31.99

285

Clip

275500951

$8.47

290

Crimp Clamp

293650333

$4.49

300

Lower Formed Water Pump Hose

709200877

$63.49

310

Oetiker Gear Clamp

293650199

$8.22

380

Oblong Grommet

705003668

$5.79

390

Tuflok Plastic Rivet

293150230

$1.49

400

LH Lower Formed Radiator Hose

709200878

$32.99

410

Crimp Clamp

293650333

$4.49

420

Oetiker Gear Clamp

293650199

$8.22

430

Trim 1000Mm Long

219704354

$15.99

440

T-Fitting

509001313

$14.90

470

Retainer

275500590

$8.24

480

Manifold

709200580

$14.81

485

Panel Nut M6 X 1.0

250100198

$2.19

490

Hex. Flange Screw M6 X 20

207662044

$2.09

495

Flat Washer 6 mm

234062410

$1.49

500

Open Clamp

293750035

$4.29

510

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.19

520

Panel Nut M6 X 1.0

250100198

$2.19
