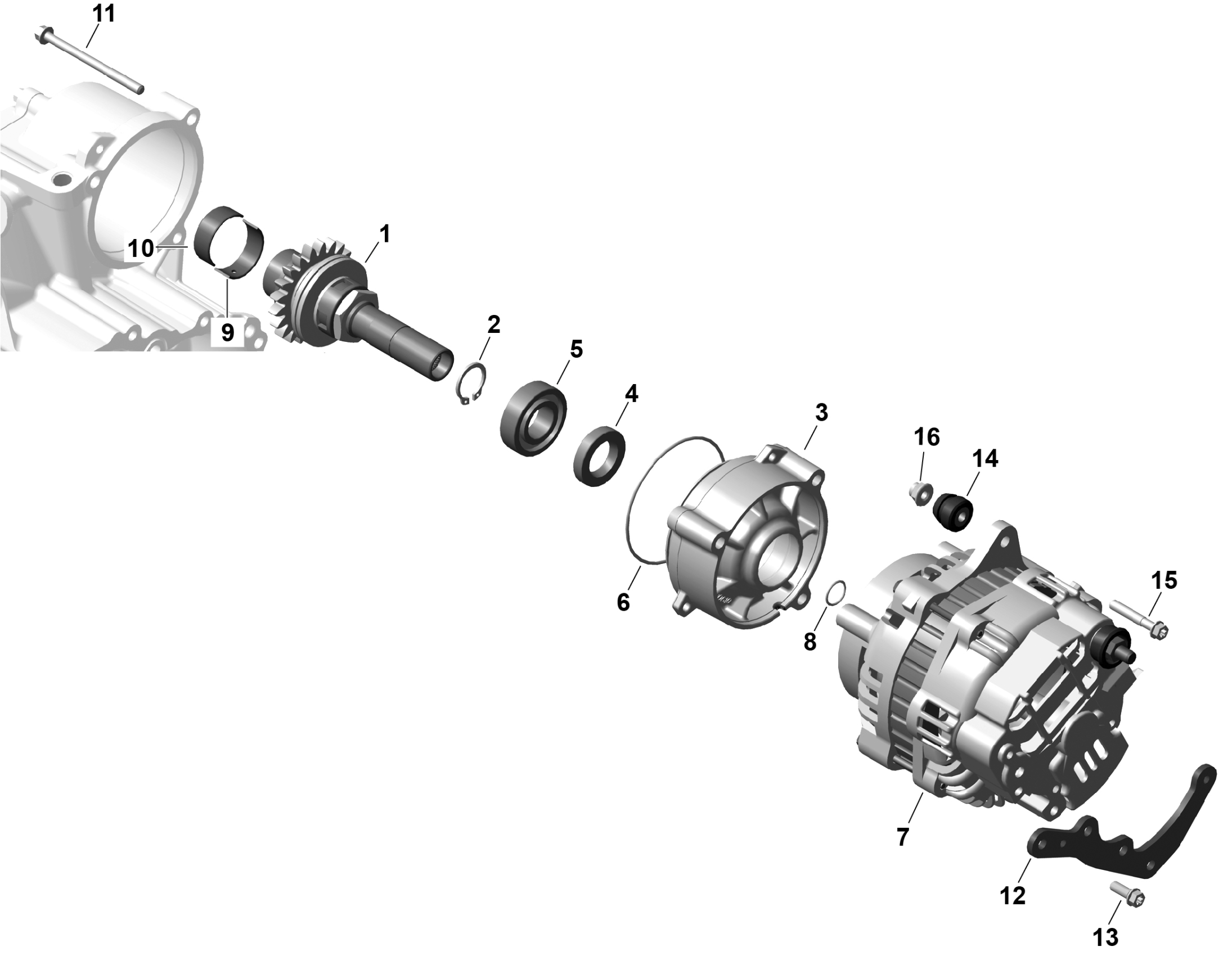

Can-Am Europe - F3 LIMITED - Dark Edition - H8SF - Mineral Blue, 2025 ROTAX - Generator Diagram

#

Description
Price

1

Alternator Shaft Ass'y | Includes 1 to 10

420637124

$599.99

2

Retaining Ring

420945665

$5.08

3

Generator Flange

420210613

$142.99

4

Oil Seal

420930267

$25.99

5

Ball Bearing

420932660

$26.49

6

O-Ring

420950490

$14.28

7

Alternator 90 A | Includes no 7-8

420685177

$679.99

8

O-Ring

420430603

$11.59

9

Not Available As Spare Parts

XXX

Unavailable

10

Not Available As Spare Parts

XXX

Unavailable

11

Torx Flange Screw M6 X 75

420440657

$4.44

12

Alternator Support

420651713

$11.05

13

Torx Flange Screw M6 X 16

420440162

$3.17

14

Isolator

420201170

$15.87

15

Torx Flange Screw M6 X 35

420440274

$1.01

16

Lock Nut M6

420242371

$3.80
