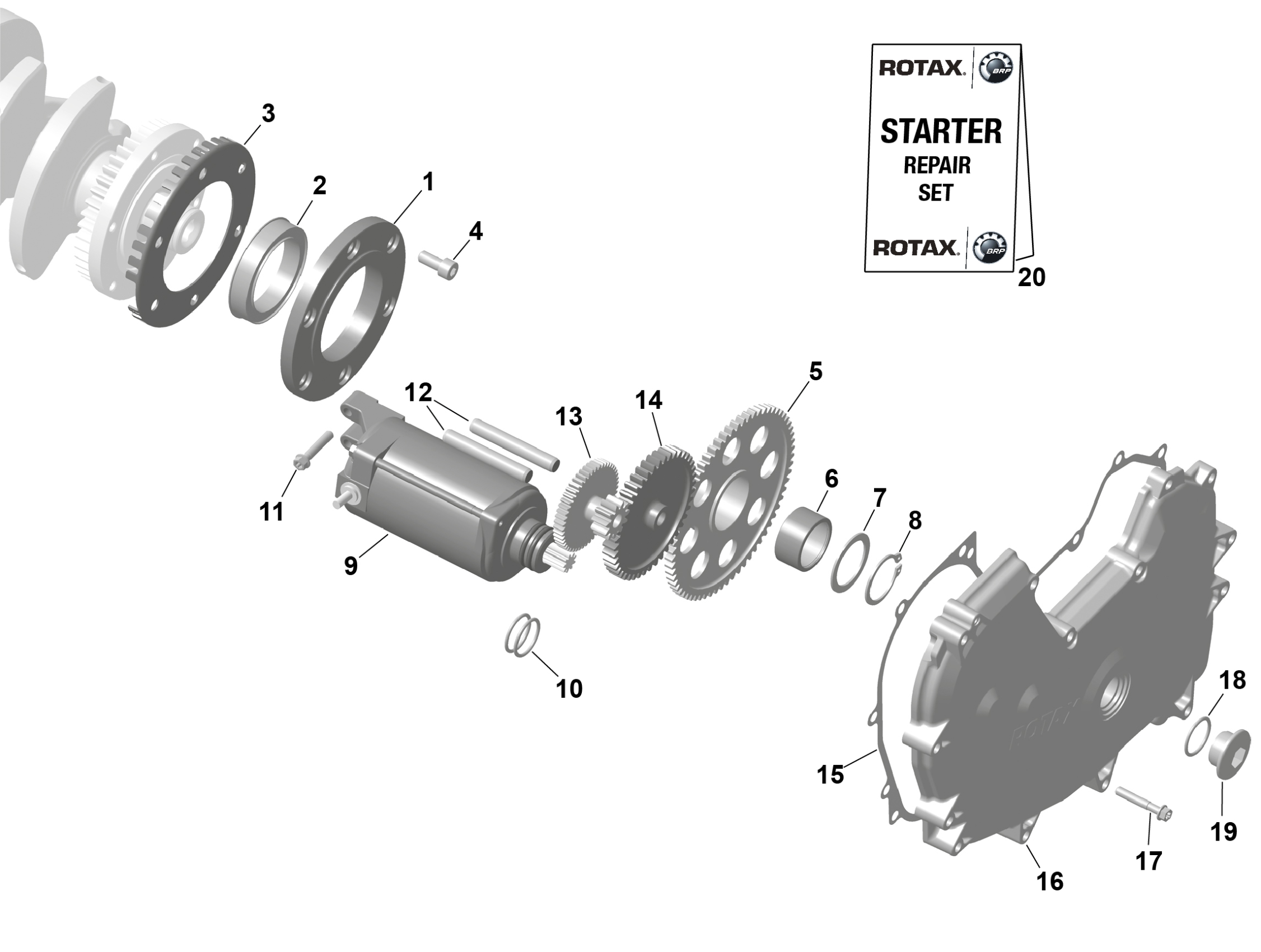

Can-Am Europe - F3 LIMITED - Dark Edition - H8SF - Mineral Blue, 2025 ROTAX - E-Starter Diagram

Description

Price

Sprag Clutch Housing

420458012

$119.99

Sprag Clutch

420659119

$179.99

Trigger Wheel

420266773

$18.49

Socket Head Screw M8 X1 8

420641509

$3.49

Gear 66T | Includes 4 to 5,

420435336

$154.99

Not Available As Spare Parts

XXX

Unavailable

Thrust Washer

420427111

$4.23

Circlip

420945720

$3.49

Starter Ass'y | Includes 8 to 9

420893830

$265.99

O-Ring

420250145

$10.33

Torx Flange Screw M6 X 30

420440647

$2.00

Pin Cylindrical

420229472

$14.24

Double Gear

420435382

$179.99

Gear 44T

420435391

$79.99

Gasket

420450010

$19.49

Valve Train Cover

420210296

$169.49

Torx Flange Screw M6 X 35

420440274

$1.01

O-Ring

420430783

$1.90

Plug Screw M24 X 1.5

420241635

$5.82

Carbon Brush Set

420881145

$204.99
