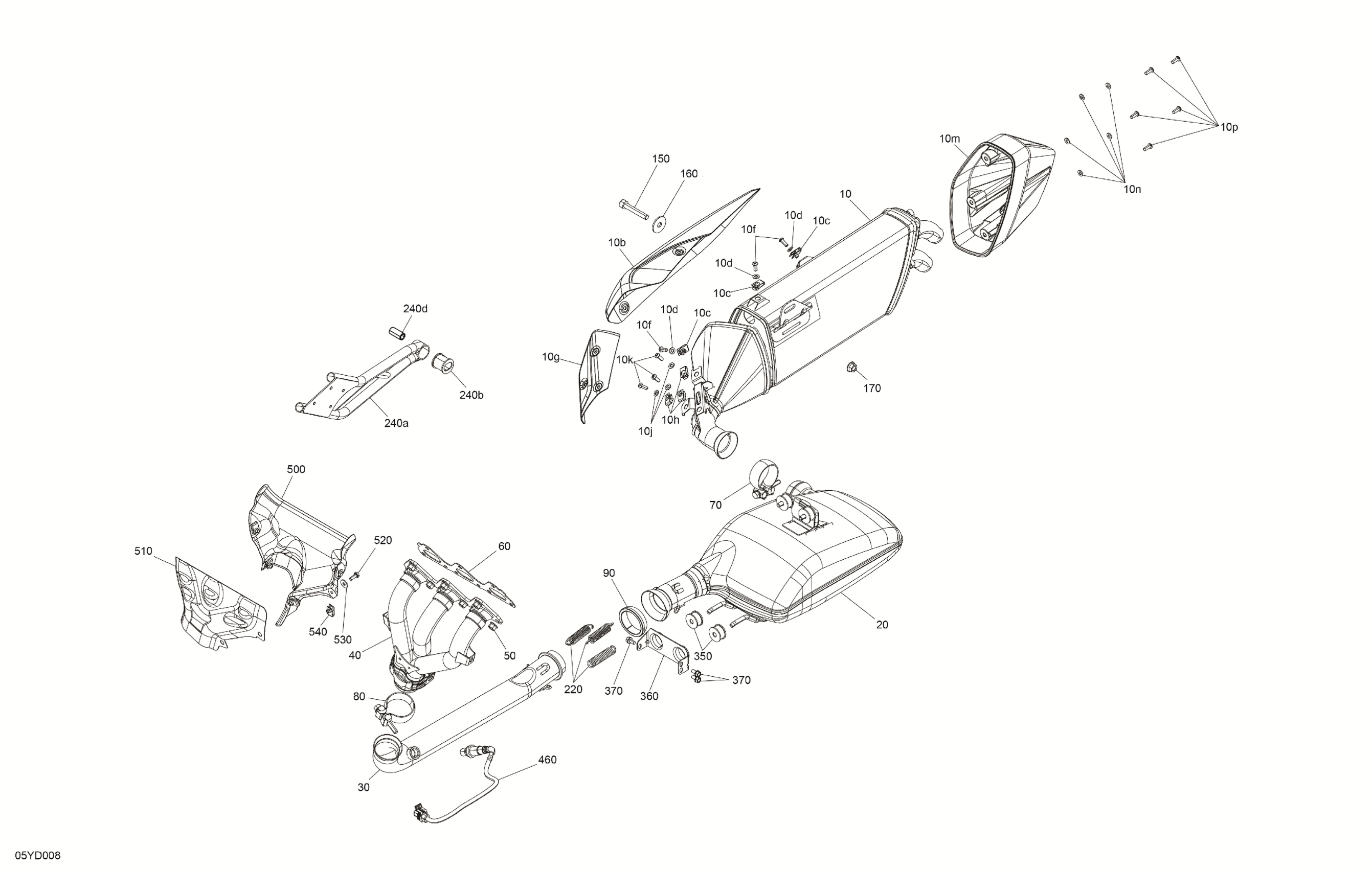

Can-Am Europe - F3 LIMITED - Dark Edition - H8RB - LIMITED - Monolith Black, 2024 Engine - Exhaust Diagram

Carbon Black, Muffler Exhaust Sec. | Includes 10 to 10p

219800442

$954.00

Carbon Black, Heat Shield | Includes 10b to 10b2

707601381

$76.00

Panel Nut M6 X 1.0

250100198

$1.73

Black, Flat Washer 6 mm

234061670

$1.00

Black, Socket Screw, M6 X 16 S.Grip

250000616

$1.74

Carbon Black, Heat Shield | Includes 10g to 10g2

707601054

$27.00

Panel Nut M6 X 1.0

250100198

$1.73

Black, Flat Washer 6 mm

234061670

$1.00

Black, Socket Screw, M6 X 16 S.Grip

250000616

$1.74

Carbon Black, RH Rear Muffler Trim | Includes 10m to 10m2

707601995

$82.00

Black, Flat Washer 6 mm

234061670

$1.00

Black, Socket Screw, M6 X 16 S.Grip

250000616

$1.74

Primary Exhaust Muffler | Includes 20 to 20y

707603211

$1,197.00

Exhaust Tuned Pipe | Includes 30 to 30d

707601605

$339.00

Exhaust Manifold

707603565

$770.00

Hex. Flange Nut

233081436

$1.63

Exhaust Seal

707601985

$8.00

Exhaust Clamp

707600980

$23.05

Exhaust Clamp

707600980

$23.05

Exhaust Gasket

514054174

$27.66

Hex. Flange Screw M10 X 50, Scotch Grip

207505046

$7.20

Washer 10 mm

506150000

$2.63

Hex. Flange Nut M10

233101600

$4.39

Spring

415107100

$6.20

Muffler Support | Includes 240a to 240a2

707601683

$68.00

Anti-Vibration Rubber

293830162

$13.00

Bushing | Includes 240d to 240d1

503189282

$4.18

Anti-Vibration Rubber

707600702

$8.34

Front Bracket | Includes 360 to 360b1a

707600661

$13.00

Hex. Flange Screw M6 X 12

210261250

$1.56

Oxygen Sensor

707600872

$115.67

Heat Shield interior

707603641

$54.00

Heat Shield Exterior

707603642

$54.00

Hex. Screw M6 X 16, Scotch Grip

207361660

$0.91

Flat Washer M6, Stainless

234062600

$0.64

Panel Nut M6 X 1.0

250100198

$1.73
