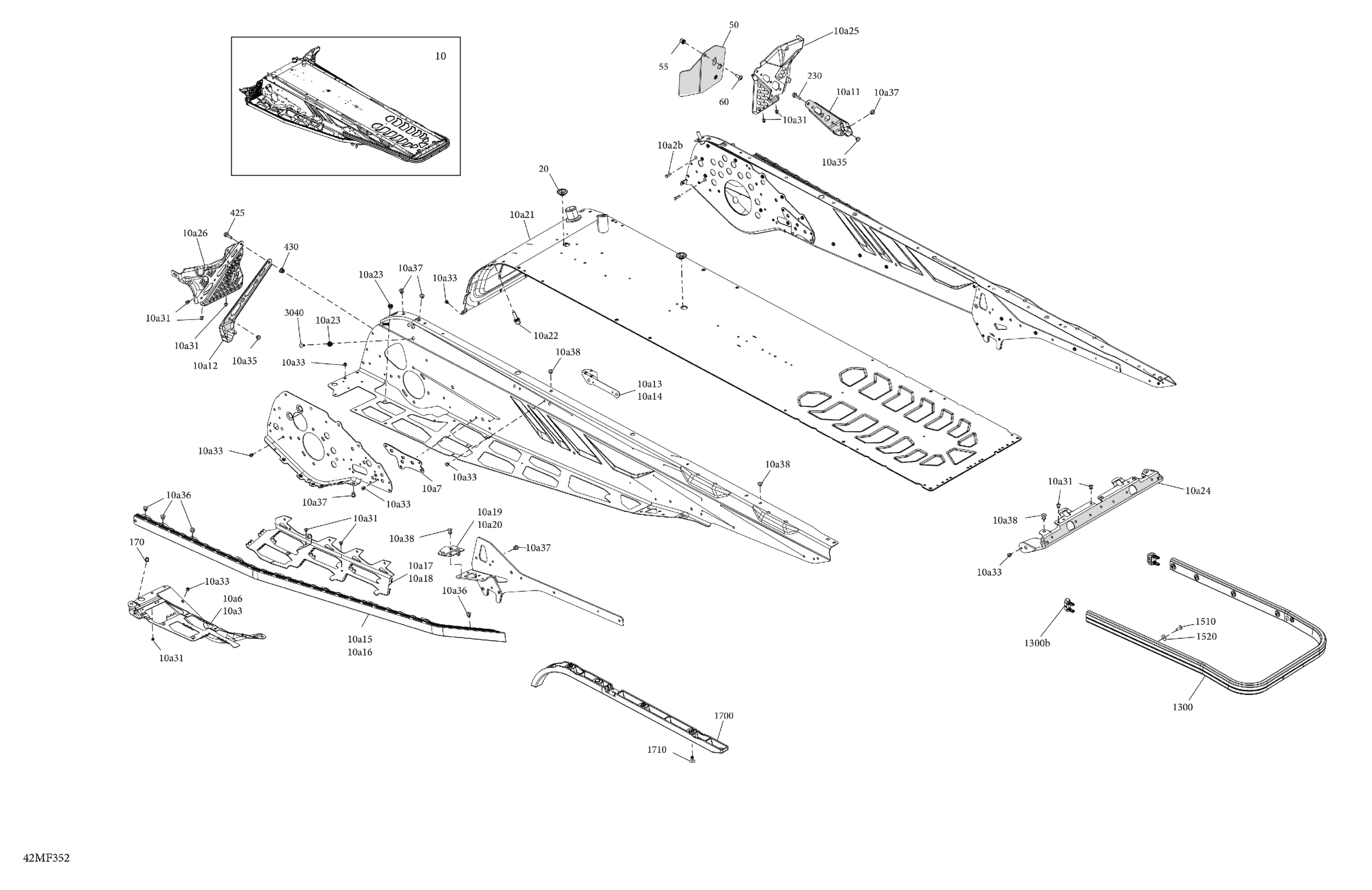

Ski-Doo Europe - EXPEDITION - SPORT - 900 ACE - KDTB - Neo Yellow - 16X154X1.5CH Track, 2026 06- Frame - System - Rear Section Diagram

Description

Price

Full Moon, Chassis Tunnel Module 154

415131038

Unavailable

10a2b

Clinch Stud M6 X 20

250300027

$2.09

10a3

RH Footrest Reinforcement

518332578

$88.99

10a6

LH Footrest Reinforcement

518332577

$88.99

10a7

Front Suspension Arm Reinforcement

518336141

$17.99

10a11

Stirrup Reinforcement

518334507

$21.99

10a12

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10a13

LH Member Fixation Plate

518330299

$18.99

10a14

RH Under Chassis Reinforcement

518331745

$19.99

10a15

RH Roller

518328451

$194.99

10a16

LH Roller

518328452

$194.99

10a17

RH Footrest Reinforcement

518336064

$35.99

10a18

LH Footrest Reinforcement

518336063

$35.99

10a19

LH Reinforcement Plate

518329088

$3.39

10a20

RH Reinforcement Plate

518329089

$4.59

10a21

Radiator Tunnel 154

518335129

$709.99

10a22

Protruding Stud M8 x 22

250300652

$4.44

10a23

Clinch Nut M6 Hexsert

605636003

$4.23

10a24

Rear Cap

518328990

$22.49

10a25

RH Footrest

518334509

$22.49

10a26

LH Foot Protector

518334305

$23.99

10a31

Avex Rivet

390909100

$0.30

10a33

Avex Rivet

390909200

$0.30

10a35

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10a36

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10a37

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10a38

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Black, Plug

293730052

$9.19

Heat Shield

518331823

$10.49

Insert

293450275

$12.99

Torx Head Screw M6 X 16

250000717

$2.11

170

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1300

Black, Hitch Bumper 154 | Includes 1300 to 1300b

860201250

$148.99

1300b

Bumper Cap

520001629

$0.98

1700

Front Protector

518329982

$18.49

1710

Black, Ornit Rivet 3/16 X ,675

293150308

$1.26

3040

Dart

293730079

$2.09

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37
