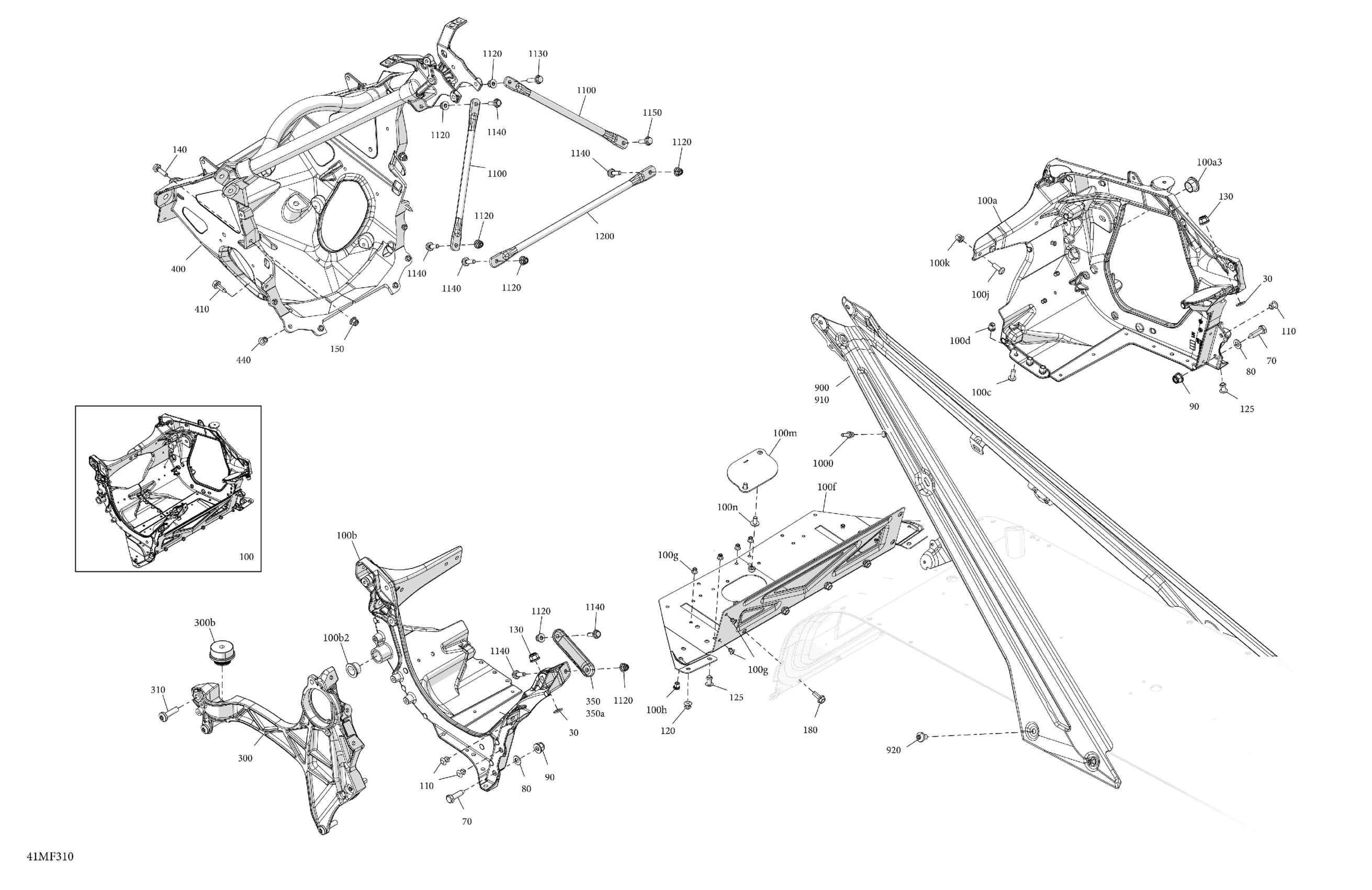

Ski-Doo Europe - EXPEDITION - SPORT - 900 ACE - KDTB - Neo Yellow - 16X154X1.5CH Track, 2026 Frame - System - Front Section Diagram

#

Description
Price

30

Conical Spring Washer M8

250200146

$0.83

70

Hex Screw M8 X 30

250000942

$0.92

80

Flat Washer 8 mm

234081410

$0.69

90

Hex. Flange Elastic Nut M8

233281414

$1.14

100

Engine Chassis Module Ass'y | Includes 100 to 100n

518334691

$394.58

100a

RH Side Member Ass'y | Includes 100a to 100a3

518334523

$186.89

100a3

Leg Cushion

505073317

$5.92

100b

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$186.89

100b2

Leg Cushion

505073317

$5.92

100c

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

100d

Collar Huck Magna-Grip 6.4

293150149

$0.37

100f

Bottom Plate

518332715

$34.58

100g

Avex Rivet

390909100

$0.29

100h

Insert M5 X 0.8

293450268

$1.95

100j

Hex. Flange Screw M6 X 20

207662046

$1.74

100k

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

100m

Oil Plate

518332276

$16.89

100n

Torx Truss Screw M6 X 12

250000767

$1.66

110

Rivet Ornit 6,5 X 16.5

293150267

$1.94

120

Rivet Ornit 6,5 X 12.5

293150265

$1.94

125

Rivet Ornit 6,5 X 18.5

293150268

$1.94

130

Hex. Flange Elastic Nut M8

233281414

$1.14

140

Hex. Flange Screw M6 X 20

207662046

$1.74

150

Elastic Flange Nut M6 X 1.0

233261416

$1.74

180

Hex. Flange Screw M6 X 16

207661646

$1.00

300

LH Side Member Ass'y | Includes 300 to 300b

518333691

$181.51

300a

Brace | Not Shown

518329332

Unavailable

300a1

Cast Member | Not Shown

518329769

Unavailable

300b

Vibration Damper

512061516

$57.66

310

Screw-Pan HD.Torx M8X30

250001060

$0.65

350

LH Front Chassis Reinforcement | Includes 350 to 350a

518331740

$9.69

350a

LH Front Chassis Reinforcement

518331741

$9.69

400

Chassis Suspension Module Ass'y

518334551

Unavailable

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.00

440

Rivet Ornit 6,5 X 16.5

293150267

$1.94

900

Deep Black, LH Rear Diagonal Cross Member

518336929

$108.43

910

Deep Black, RH Rear Diagonal Cross Member

518336930

$108.43

920

Pan Head Torx Screw M8 X 12

250000887

$1.56

1000

Insert M5 - 0.8

293450267

$4.22

1100

Upper Colomn Support

518329370

$20.74

1120

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1130

Hex. Flange Screw M6 X 25

207662556

$3.61

1140

Hex. Flange Screw M6 X 20

207662046

$1.74

1150

Hex. Flange Screw M6 X 20

207562056

$1.74

1200

Center Column Support

518329755

$3.46
