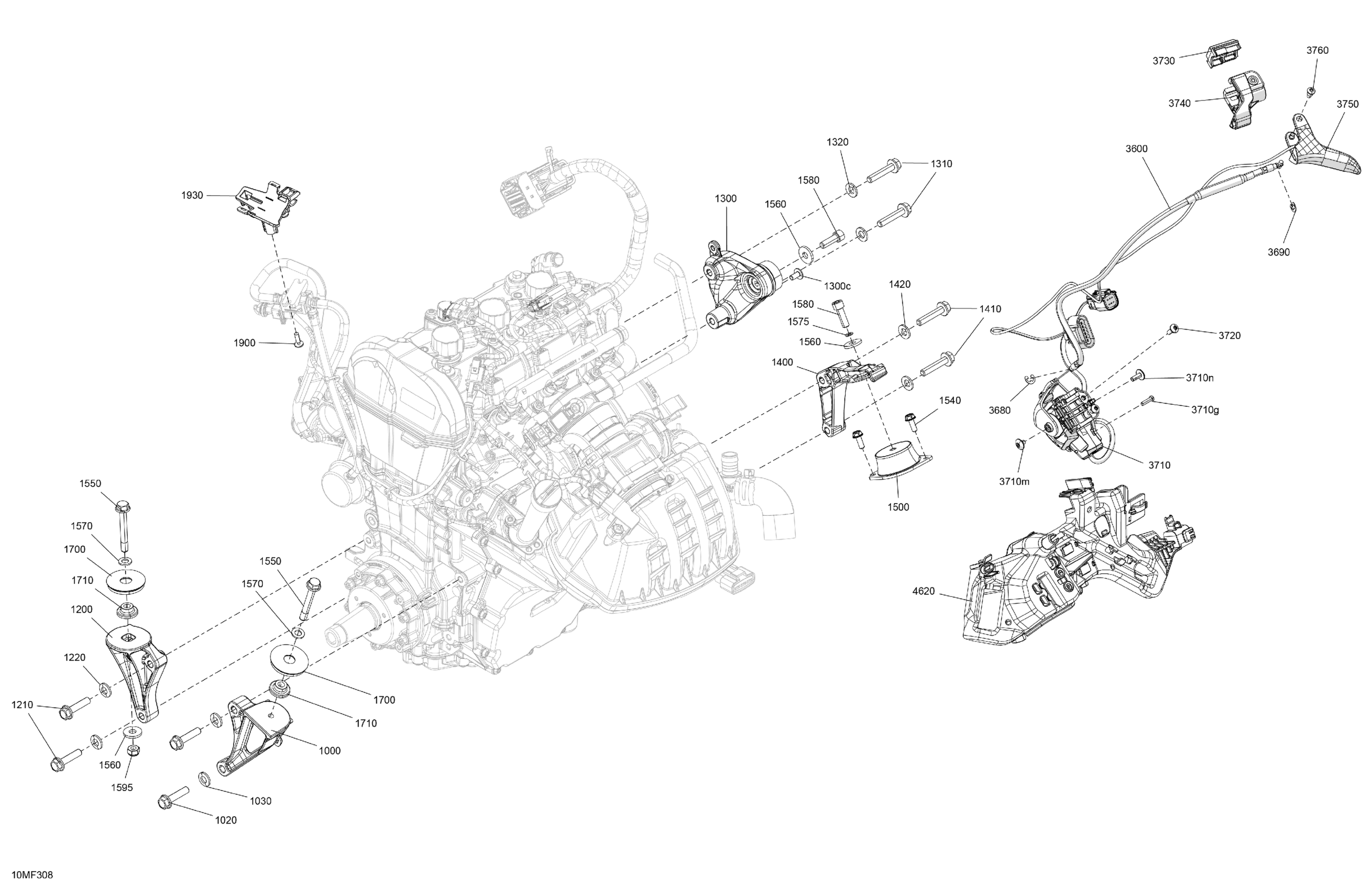

Ski-Doo Europe - EXPEDITION - SE - 900 ACE TURBO R - AYTG - Deep Black - 20X154X1.5ICSS Track, 2026 Engine - System Diagram

Description

Price

1000

Rear PTO Support

512061220

$17.66

1020

Hex. Flange Screw M8 X 35

250000986

$1.74

1030

Conical Spring Washer M8

250200146

$0.83

1200

Front PTO Support

512061193

$17.66

1210

Hex. Flange Screw M8 X 35

250000986

$1.74

1220

Conical Spring Washer M8

250200146

$0.83

1300

Engine Support Ass'y | Includes 1300 to 1300c

512061519

$102.28

1300c

Torx Truss Screw M6 X 12

250000767

$1.66

1310

Hex. Flange Screw M8 X 40 Scotch.GRIP

250001057

$1.26

1320

Conical Spring Washer M8

250200146

$0.83

1400

Rear Support, Mag

512061194

$18.43

1410

Hex. Flange Screw M8 X 40 Scotch.GRIP

250001057

$1.26

1420

Conical Spring Washer M8

250200146

$0.83

1500

Rubber Mount

512061514

$69.97

1540

Hex. Flange Screw M6 X 16

250001062

$1.43

1550

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$1.74

1560

Yellow, Washer

503183200

$3.00

1570

Flat Washer With Teflon 8 mm

250200008

$3.12

1575

O-Ring

293300123

$1.00

1580

Socket Head Screw M8 X 25

205082544

$0.92

1595

Hex. Elastic Stop Nut M8

232581414

$0.47

1700

Engine Stopper

512061408

$17.66

1710

Spacer

512061497

$17.66

1900

Torx Screw K50 X 16

250000720

$1.39

1930

Support Solenoid

512061327

$5.22

3600

Throttle Cable

512061584

$16.12

3680

Circlip

414274500

$0.74

3690

Circlip

414274500

$0.74

3710

Throttle Housing Ass'y | Includes 3710 to 3710n

512061574

$278.43

3710g

Torx Screw

250000671

$0.83

3710m

Screw

512060961

$10.52

3710n

Torx Truss Head Screw W Nylon M5X14

250001059

$2.06

3720

Torx Screw M5 X 14

250000742

$1.20

3730

Upper Housing

512060859

$8.38

3740

Lower Housing

512060860

$16.89

3750

Heated Hand Lever Accelerator

512061544

$117.66

3760

Flange Screw M5x12

250000991

$6.18

4620

Multi Purpose Support

512061557

$14.05
